Product Model

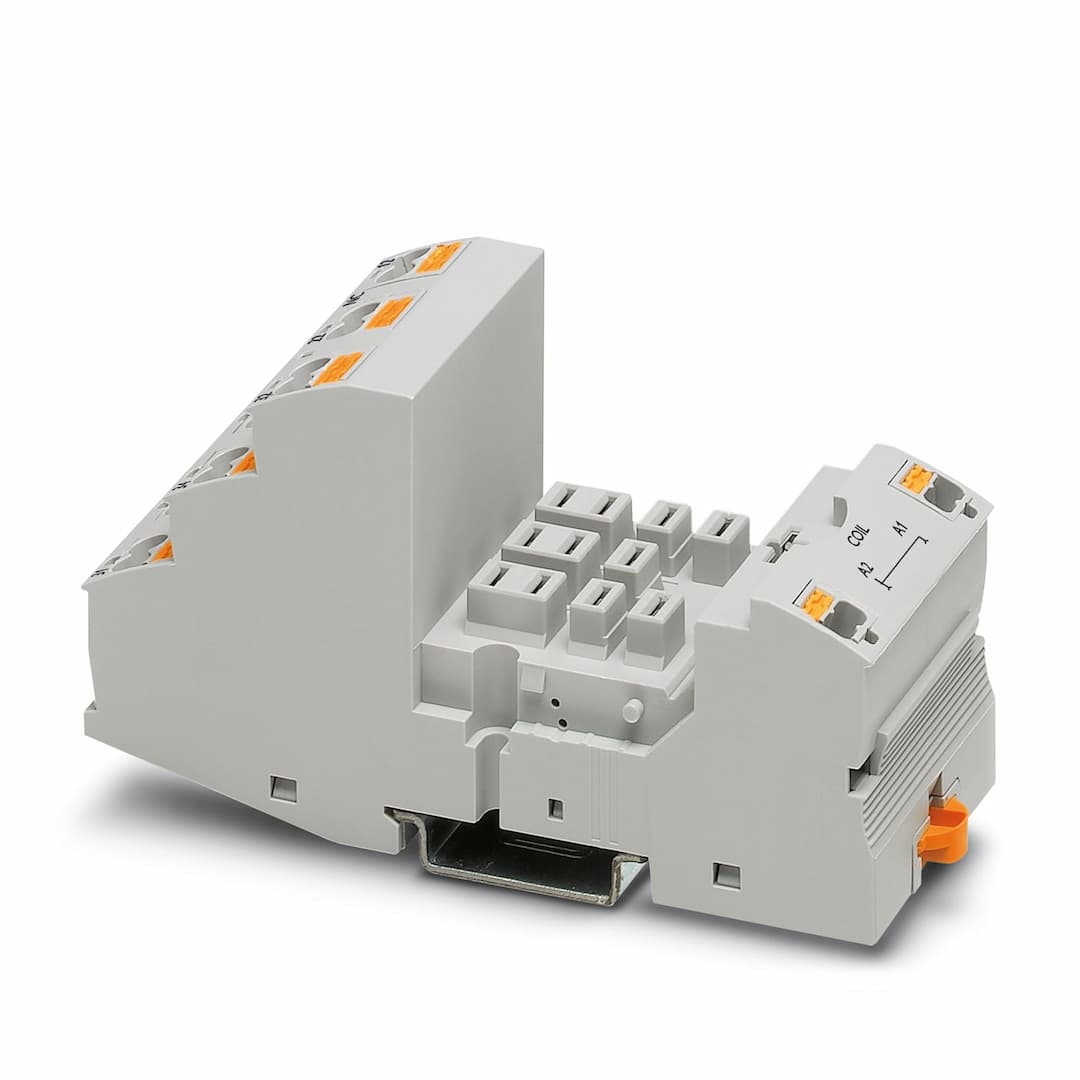

RIF-4-BPT/3X21
Selling Points
- 1High-Power Capability: Supports high-power relays with 2 or 3 PDTs or 3 N/O contacts.
- 2Versatile Connection: Push-in connection and plug-in option for input/suppressor modules.
- 3Durable Design: Gray color, flammability rating according to UL 94 V2 (Housing).
- 4Flexible Conductor Options: Solid conductor cross section from 0.14 mm² to 1.5 mm², flexible conductor cross section from 0.14 mm² to 1.5 mm².
- 5Wide Ambient Temperature Range: Operates in ambient temperatures from -40 °C to 85 °C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay socket | Product family | RIFLINE complete |
Article revision | 07 | Nominal voltage U | 440 V AC
250 V DC |
Nominal current I | max. 16 A (Depends on application/assembly) | Protective circuit | depending on the selected input/suppressor modules |
Connection method | Push-in connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 1.5 mm² | Conductor cross section flexible | 0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) |
Conductor cross section AWG | 26 ... 16 (solid)
26 ... 16 (flexible) | Connection method | Push-in connection |
Stripping length | 10 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.14 mm² ... 2.5 mm² (Ferrule with plastic sleeve)
0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) | Conductor cross section AWG | 26 ... 14 (solid)
26 ... 14 (flexible) |
Diameter | 3.2 mm | Width | 43 mm |
Height | 111 mm | Depth Retaining bracket | 90 mm (with retaining bracket) |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V2 (Housing) |
Ambient temperature (operation) | -40 °C ... 85 °C (Depends on application/assembly) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Mounting type | DIN rail mounting |
Mounting position | any |
Specifications may be subject to change without notice
