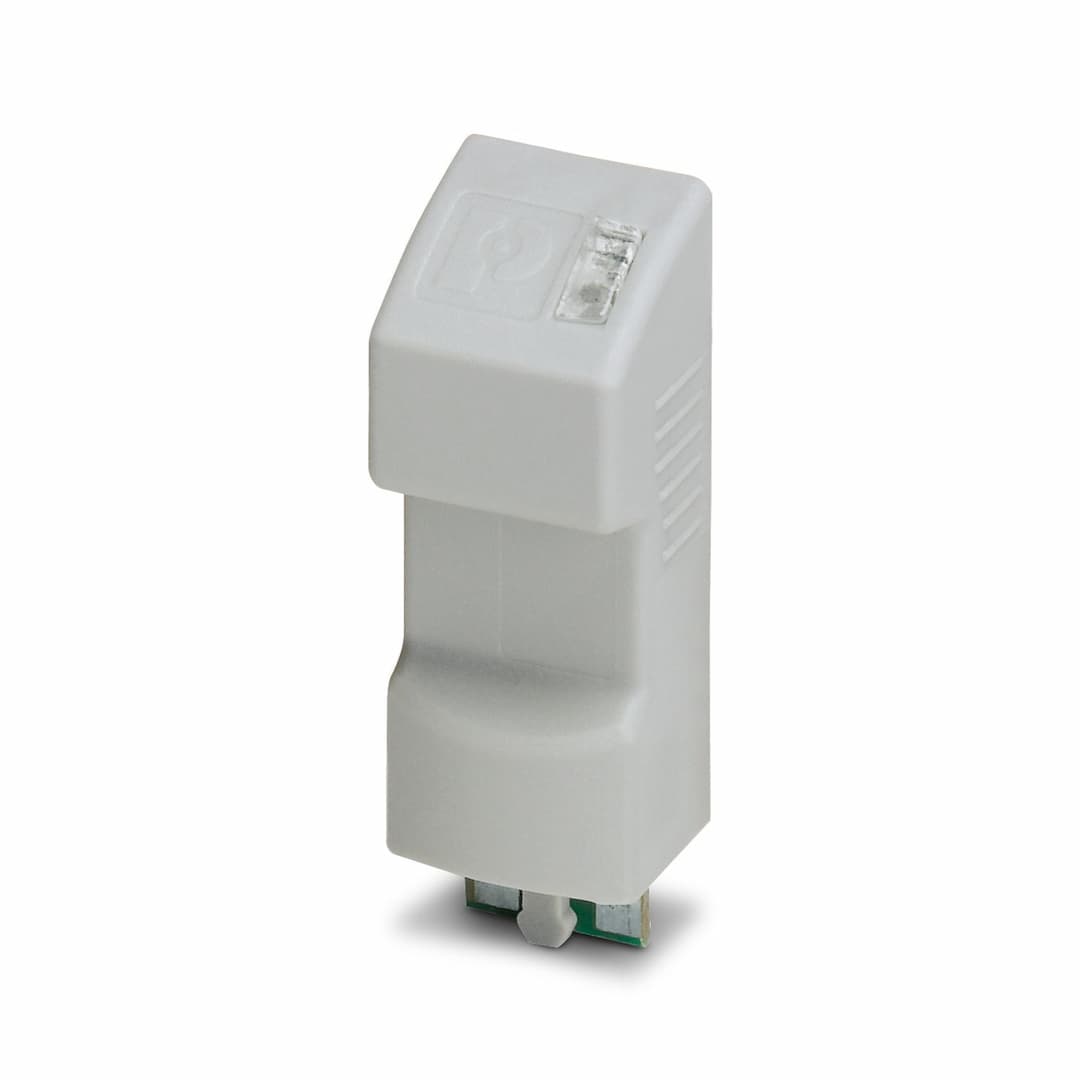

Product Model
RIF-LDP-110 DC
Selling Points
- 1Freewheeling Diode and Yellow LED: The module includes a freewheeling diode and a yellow LED for status display.
- 2Wide Input Voltage Range: Compatible with input voltage of 110 V DC ±20%.
- 3Multiple Mounting Options: Designed for mounting on RIF-1, RIF-2, RIF-3, and RIF-4.
- 4UL and CSA Approvals: Recognized by UL and CSA for safety and reliability.
- 5Environmentally Friendly: Compliant with China RoHS regulations for environmentally friendly use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Plug-in module | Product family | RIFLINE complete |
Article revision | 04 | Nominal voltage U | 110 V DC |
Nominal input voltage U | 110 V DC ±20 % | Input voltage range | 110 V DC |
Status display | LED (yellow) | Protective circuit | Freewheeling diode |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Specifications may be subject to change without notice
