Phoenix Contact RIF-RPT-LDP-24DC/1X2/3X1/AU/FG

Selling Points

  • 1High-Power Capability: Handles high inrush currents up to 35A and supports up to 6A continuous current.
  • 2Safety Features: Equipped with force-guided contacts in accordance with DIN EN 61810-3 for enhanced safety.
  • 3Compact Design: Miniature size with dimensions of 21mm x 96mm x 67mm, suitable for space-constrained applications.
  • 4Reliable Operation: 100% operating factor with a typical response time of 10ms and release time of 15ms.
  • 5Comprehensive Standards Compliance: Meets various standards including UL Listed, cUL Listed, and EAC approvals.
Product Details

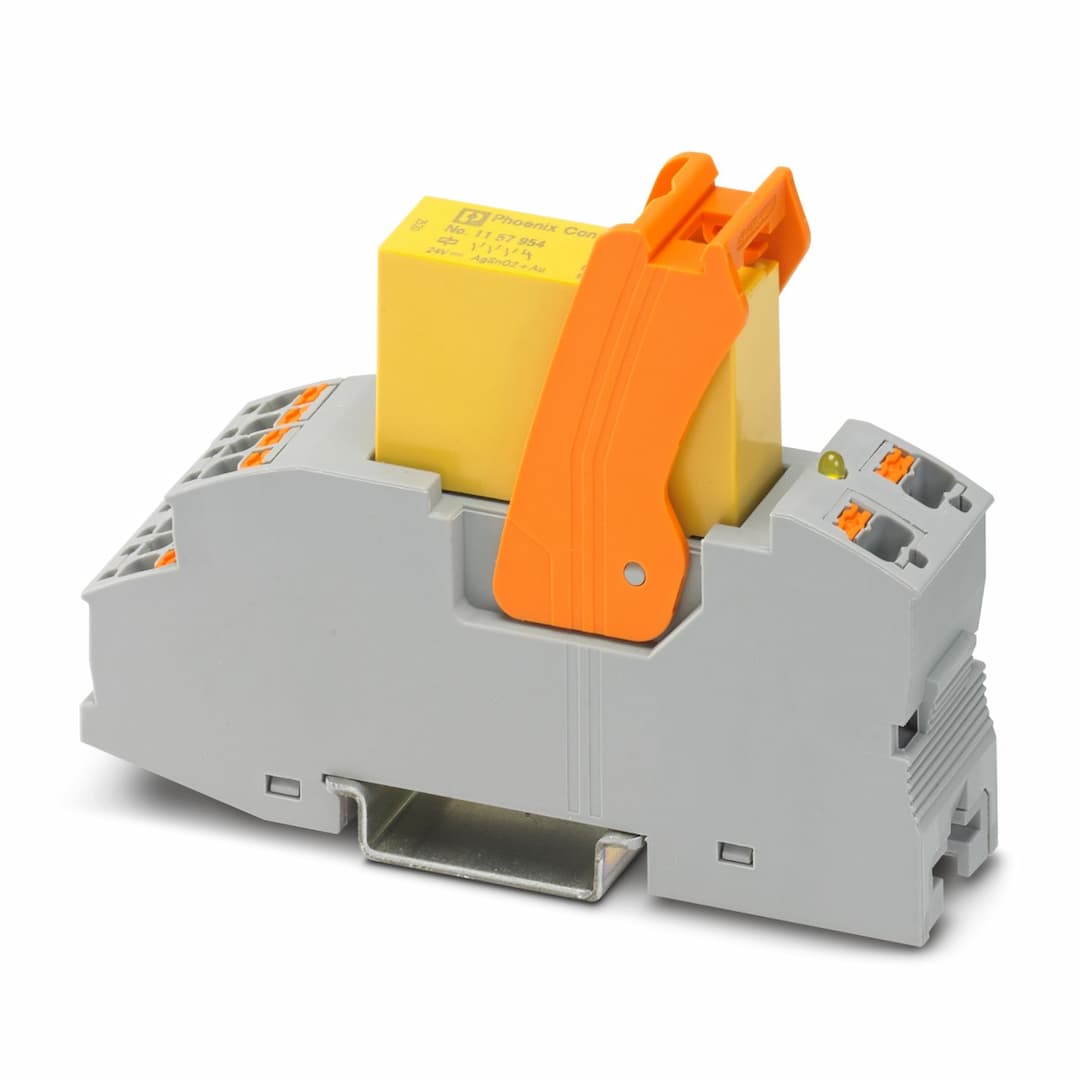

RIF-RPT-LDP-24DC/1X2/3X1/AU/FG
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product type
Relay Module
Product family
RIFLINE complete
Application
Forcibly guided contacts
Operating mode
100% operating factor
Mechanical service life
approx. 10
B
810000 Cycles (AC15, 250 V / 0.5 A, 1 NO) 170000 Cycles (AC15; 250 V / 2 A; 1 NO) 318000 Cycles (DC13, 24 V / 1 A, 1 NO) 208000 Cycles (DC13, 24 V / 2 A, 1 NO)
Date of last data management
10.06.2024
Article revision
05
Insulation
Basic insulation Safe isolation, reinforced insulation and 6 kV between coil and contact circuit and between contacts 11-12 and 13-14, 41-42 to 23-24, 33-34
Overvoltage category
III
Pollution degree
2
Maximum power dissipation for nominal condition
0.41 W
Test voltage (Winding/contact)
4 kV
Test voltage ()
1.5 kV
Test voltage ()
2.5 kV
Test voltage ()
4 kV
Rated insulation voltage
250 V AC (Input/output)
Rated surge voltage
6 kV (Input/output)
Current
10 A (RT28-32)
Voltage
500 V (SCPD)
Short-circuit current
1 kA (conditional short-circuit current)
Nominal operating voltage U
24 V DC
Input voltage range in reference to U
See derating diagram
Drive and function
monostable
Drive (polarity)
polarized
Typical input current at U
17 mA
Input power dissipation for U
0.4 W
Typical response time
10 ms
Typical release time
15 ms
Coil voltage
24 V DC
Protective circuit
Freewheeling diode
Status display
LED (yellow)
Contact switching type
3 N/O contacts, 1 N/C contact
Type of switch contact
Single contact
Contact material
AgSnO, hard gold-plated
Maximum switching voltage
250 V AC 300 V DC
Minimum switching voltage
10 V (5 mA)
Limiting continuous current
6 A
Maximum inrush current
35 A (20 ms)
Min. switching current
5 mA (10 V)
Interrupting rating (ohmic load) max.
144 W (24 V DC) 100 W (48 V DC) 75 W (60 V DC) 55 W (110 V DC) 50 W (220 V DC) 1500 VA (250 V AC)
Force-guided contacts in accordance with EN 61810-3
Type A
Utilization category CB Scheme (IEC 60947-5-1)
AC15, 2 A/240 V (N/O contact) DC13, 2 A/24 V (N/O contact)
Connection method
Push-in connection
Stripping length
8 mm
Conductor cross section rigid
0.14 mm² ... 1.5 mm²
Conductor cross section flexible
0.14 mm² ... 1.5 mm² 0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve) 0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block)
Conductor cross section AWG
26 ... 16 (solid) 26 ... 16 (flexible)
Width
21 mm
Height
96 mm
Depth
67 mm
Flammability rating according to UL 94
V2 (Housing)
Degree of protection (Relay base)
IP20 (Relay base)
Degree of protection (Relay)
RT II (Relay)
Degree of protection (Installation location)
IP54 (Installation location)
Ambient temperature (operation)
-40 °C ... 60 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Altitude
≤ 2000 m
Certificate
UKCA-compliant
Standards/regulations
IEC 60947-5-1 IEC 61810-3
Standards/regulations
EN 61810-1
Mounting type
DIN rail mounting
Assembly note
in rows with zero spacing
Mounting position
any
