Product Model

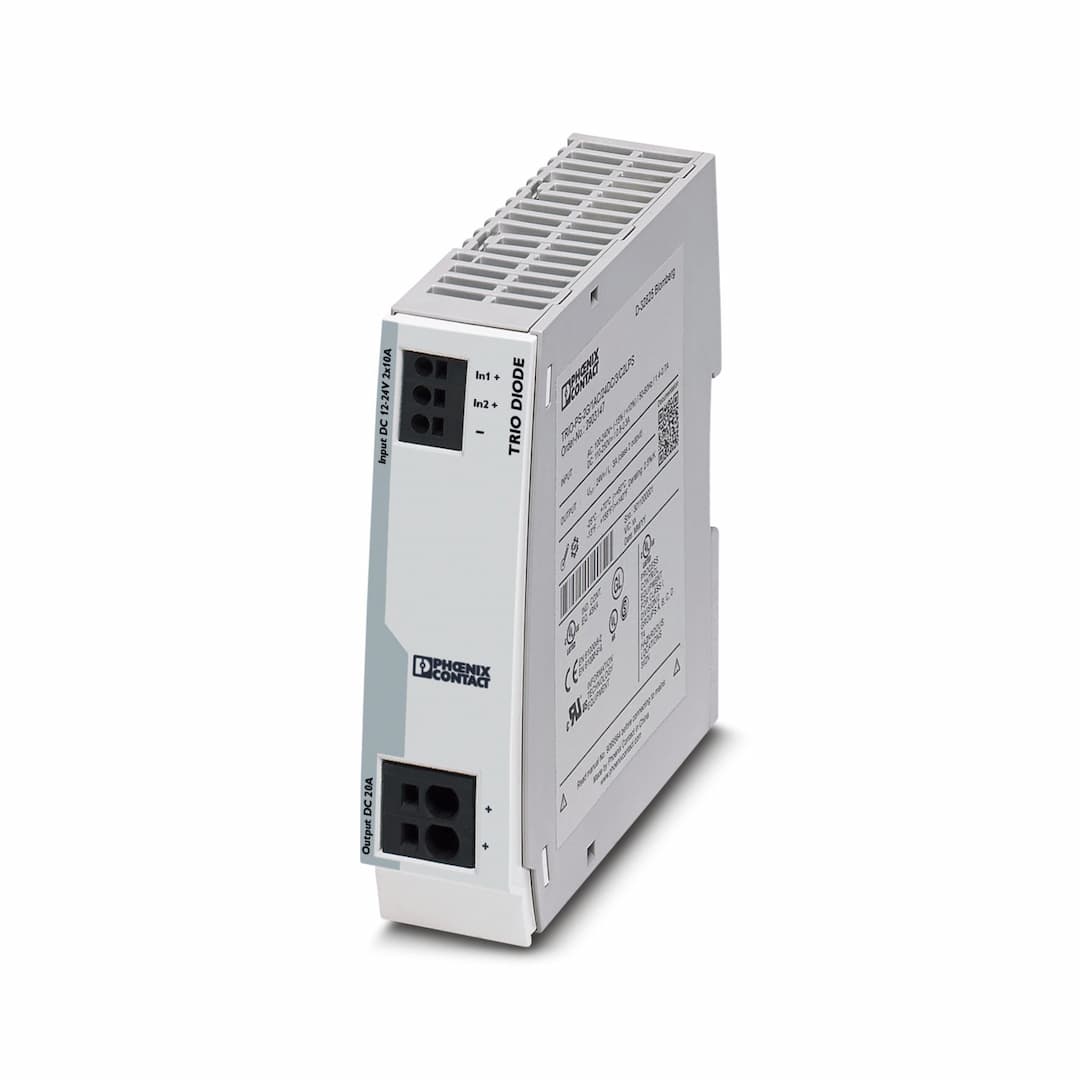

TRIO2-DIODE/12-24DC/2X10/1X20
Selling Points
- 1Ensures 100% isolated power supply redundancy.
- 2Easy installation on DIN rails for compact designs.
- 3Provides robust protection against environmental factors.
- 4Supports 20A output or 2x10A parallel configuration.
- 5Operates between -13°F to 158°F (-25°C to 70°C).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 12 V DC ... 24 V DC | Input voltage range | 10 V DC ... 30 V DC |
Voltage type of supply voltage | DC | Reverse polarity protection | < yes60 V |
Nominal input current (I | 2x 10 A (-25 °C ... 60 °C)
1x 20 A (-25 °C ... 60 °C) | Maximum current I | 2x 15 A (-25 °C ... 40 °C)
1x 30 A (-25 °C ... 40 °C) |
Nominal input current (I | 2x 10 A (-25 °C ... 60 °C)
1x 20 A (-25 °C ... 60 °C) | Transient surge protection | Varistor |
Voltage drop, input/output | 0.5 V | Efficiency | > 97 % |
Nominal output voltage | U | Nominal output current (I | 20 A
10 A |
Derating | 60 °C ... 70 °C (2.5 %/K) | Power loss nominal load max. | 5 W (I |
Connection in series | no | Derating | 60 °C ... 70 °C (2.5 %/K) |
Connection method | Push-in connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 4 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 16 |
Conductor cross section AWG max. | 12 | Stripping length | 10 mm |
Connection method | Screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 10 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 6 mm² | Conductor cross section AWG min. | 12 |
Conductor cross section AWG max. | 8 | Stripping length | 15 mm |
Screw thread | M3 | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Insulation voltage input, output / housing | 500 V |
Product type | Redundancy module | Product family | TRIO DIODE |
MTBF (IEC 61709, SN 29500) | 66425178 h (25 °C)
56586762 h (40 °C)
41744164 h (60 °C) | LED | no |
Article revision | 04 | Protection class | III |
Degree of pollution | 2 | Width | 35 mm |
Height | 130 mm | Depth | 115 mm |
Installation distance right/left | 0 mm / 0 mm | Installation distance top/bottom | 50 mm / 50 mm |
Mounting type | DIN rail mounting | Assembly note | alignable: horizontally 0 mm, vertically 50 mm |
Mounting position | horizontal DIN rail NS 35, EN 60715 | Flammability rating according to UL 94 (housing / terminal blocks) | V0 |
Housing material | Metal | Type of housing | Steel sheet, zinc-plated |
Side element version | Aluminum | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Climatic class | 3K3 (in acc. with EN 60721) | Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) | Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min. |
Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations | EN 50178/VDE 0160 (PELV) | Standard - Electrical safety | IEC 62368-1 (SELV) |
Standard – Safety extra-low voltage | IEC 62368-1 (SELV) und EN 60204-1 (PELV) | UL approvals | UL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1 |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 | EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 |
Standards/regulations | EN 61000-4-2 | Contact discharge | 4 kV (Test Level 3) |
Discharge in air | 8 kV (Test Level 3) | Comments | Criterion B |
Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 1 GHz |
Test field strength | 10 V/m | Frequency range | 1 GHz ... 2 GHz |
Test field strength | 10 V/m | Frequency range | 2 GHz ... 3 GHz |
Test field strength | 10 V/m | Comments | Criterion A |
Standards/regulations | EN 61000-4-4 | Input | 2 kV (Test Level 3 - asymmetrical) |
Output | 2 kV (Test Level 3 - asymmetrical) | Comments | Criterion B |
Standards/regulations | EN 61000-4-5 | Input | 0.5 kV (Test Level 2 - symmetrical)
0.5 kV (Test Level 3 - asymmetrical) |
Output | 0.5 kV (Test Level 1 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical) | Comments | Criterion B |
Standards/regulations | EN 61000-4-6 | I/O/S | asymmetrical |
Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
Voltage | 10 V (Test Level 3) | Standards/regulations | EN 61000-4-11 |
Standards/regulations | EN 61000-6-3 | Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential | Criterion A | Normal operating behavior within the specified limits. |
Specifications may be subject to change without notice
