Product Model

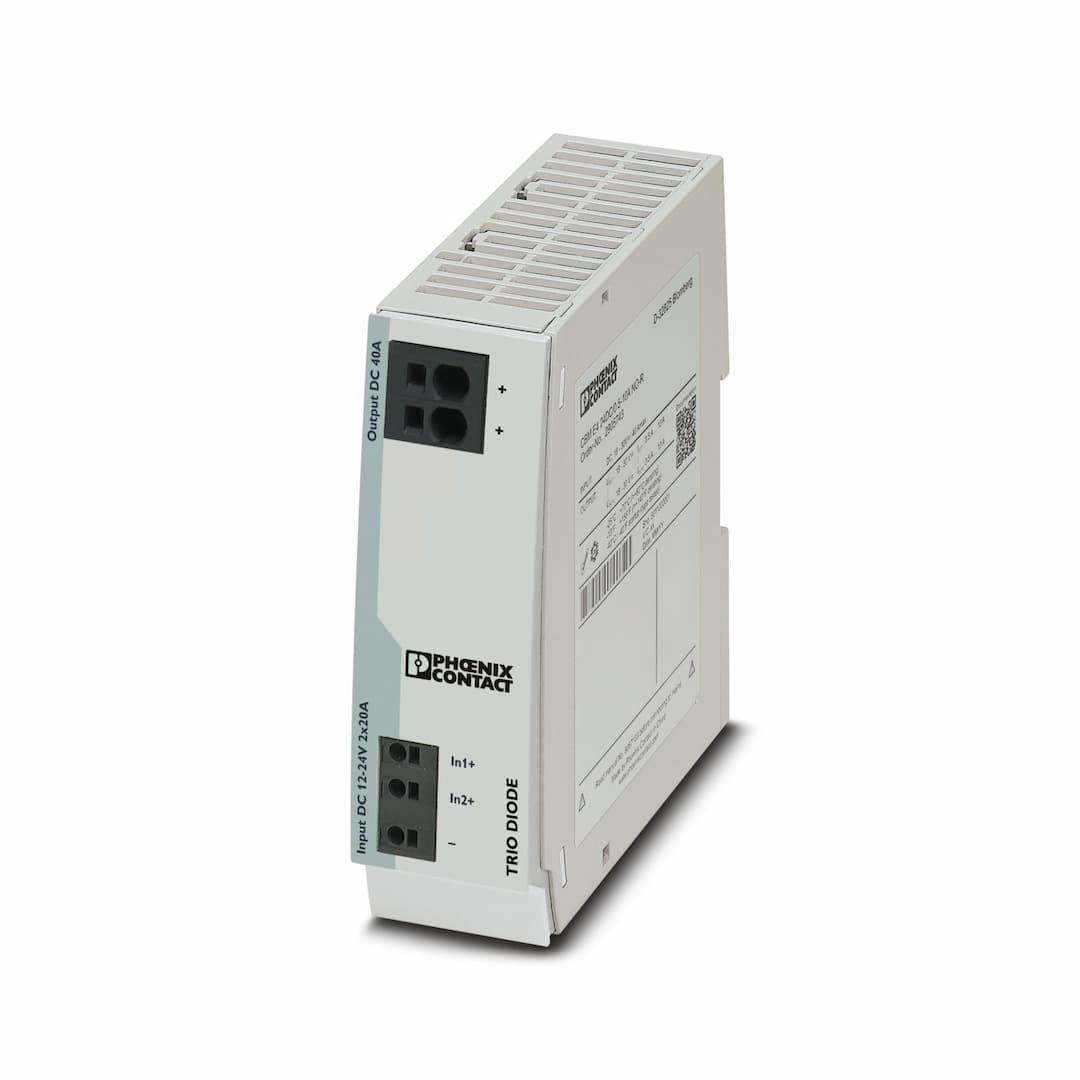

TRIO2-DIODE/12-24DC/2X20/1X40
Selling Points
- 1Quick and Easy Installation: Utilize push-in connection technology for fast and secure setup.
- 2Enhanced System Availability: Ensure continuous operation with redundant wiring up to the load.
- 3High Efficiency: Achieve efficiency rates over 97% with minimal power loss.
- 4Permanent Monitoring: Maintain consistent redundancy through permanent monitoring.
- 5Durable Design: Built with IP20 protection and UL 94 V0 inflammability class for reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 12 V DC ... 24 V DC | Input voltage range | 10 V DC ... 30 V DC |
Voltage type of supply voltage | DC | Reverse polarity protection | < yes60 V |
Nominal input current (I | 2x 20 A (-25 °C ... 60 °C)
1x 40 A (-25 °C ... 60 °C) | Maximum current I | 2x 25 A (-25 °C ... 40 °C)
1x 50 A (-25 °C ... 40 °C) |
Nominal input current (I | 2x 20 A (-25 °C ... 60 °C)
1x 40 A (-25 °C ... 60 °C) | Transient surge protection | Varistor |
Voltage drop, input/output | 0.5 V | Efficiency | > 97 % |
Nominal output voltage | U | Nominal output current (I | 40 A
20 A |
Derating | 60 °C ... 70 °C (2.5 %/K) | Power loss nominal load max. | 10 W (I |
Connection in series | no | Connection method | Push-in connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 10 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 6 mm² |
Conductor cross section AWG min. | 12 | Conductor cross section AWG max. | 8 |
Stripping length | 15 mm | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.75 mm² | Conductor cross section, rigid max. | 16 mm² |
Conductor cross section flexible min. | 0.75 mm² | Conductor cross section flexible max. | 16 mm² |
Conductor cross section AWG min. | 8 | Conductor cross section AWG max. | 4 |
Stripping length | 18 mm | Screw thread | M3 |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Insulation voltage input, output / housing | 500 V | Product type | Redundancy module |
Product family | TRIO DIODE | MTBF (IEC 61709, SN 29500) | 82870031 h (25 °C)
50190012 h (40 °C)
26315113 h (60 °C) |
LED | no | Article revision | 04 |
Protection class | III | Degree of pollution | 2 |
Width | 41 mm | Height | 130 mm |
Depth | 115 mm | Installation distance right/left | 0 mm / 0 mm |
Installation distance top/bottom | 50 mm / 50 mm | Mounting type | DIN rail mounting |
Assembly note | alignable: horizontally 0 mm, vertically 50 mm | Mounting position | horizontal DIN rail NS 35, EN 60715 |
Flammability rating according to UL 94 (housing / terminal blocks) | V0 | Housing material | Metal |
Type of housing | Steel sheet, zinc-plated | Side element version | Aluminum |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Climatic class | 3K3 (in acc. with EN 60721) |
Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) | Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min. | Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations | EN 50178/VDE 0160 (PELV) |
Standard - Electrical safety | IEC 62368-1 (SELV) | Standard – Safety extra-low voltage | IEC 62368-1 (SELV) und EN 60204-1 (PELV) |
UL approvals | UL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1 | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 |
EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 | Standards/regulations | EN 61000-4-2 |
Contact discharge | 4 kV (Test Level 3) | Discharge in air | 8 kV (Test Level 3) |
Comments | Criterion B | Standards/regulations | EN 61000-4-3 |
Frequency range | 80 MHz ... 1 GHz | Test field strength | 10 V/m |
Frequency range | 1 GHz ... 2 GHz | Test field strength | 10 V/m |
Frequency range | 2 GHz ... 3 GHz | Test field strength | 10 V/m |
Comments | Criterion A | Standards/regulations | EN 61000-4-4 |
Input | 2 kV (Test Level 3 - asymmetrical) | Output | 2 kV (Test Level 3 - asymmetrical) |
Comments | Criterion B | Standards/regulations | EN 61000-4-5 |
Input | 0.5 kV (Test Level 2 - symmetrical)
0.5 kV (Test Level 3 - asymmetrical) | Output | 0.5 kV (Test Level 1 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical) |
Comments | Criterion B | Standards/regulations | EN 61000-4-6 |
I/O/S | asymmetrical | Frequency range | 0.15 MHz ... 80 MHz |
Comments | Criterion A | Voltage | 10 V (Test Level 3) |
Standards/regulations | EN 61000-4-11 | Standards/regulations | EN 61000-6-3 |
Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential | Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
Criterion A | Normal operating behavior within the specified limits. | Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Specifications may be subject to change without notice
