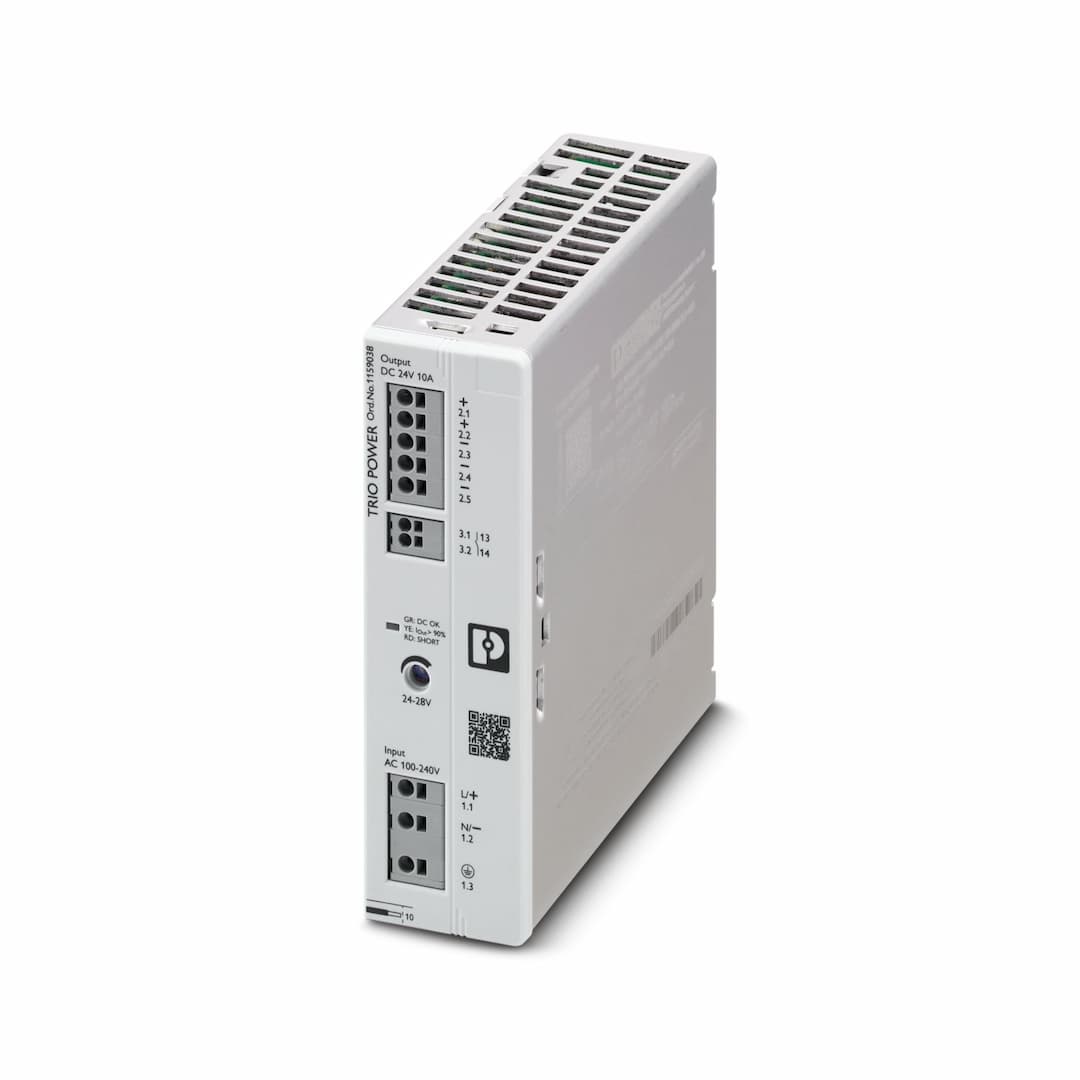

Product Model
TRIO3-PS/1AC/24DC/10
Selling Points
- 1Achieves up to 95.5% efficiency at 230V AC.
- 2Operates with input voltages from 100V AC to 240V AC.
- 3Ensures device safety with built-in short-circuit protection.
- 4Provides a stable output voltage of 24V DC with a setting range of 24V DC to 28V DC.
- 5Offers a high Mean Time Between Failures (MTBF) of over 610,000 hours.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Supply system configuration | Star network (TN, TT, IT (PE)) | Nominal input voltage range | 100 V AC ... 240 V AC |
Input voltage range | 100 V AC ... 240 V AC -15 % ... +10 %
115 V AC ... 240 V AC ±10 % (UL) | Derating | < 100 V AC (1 %/V)
2.5 %/K, > 60 °C |
Typical national grid voltage | 120 V AC
230 V AC | Voltage type of supply voltage | AC |
Inrush current | < 17 A (25 °C) | Inrush current integral (I | < 0.5 A |
Frequency range (f | 50 Hz ... 60 Hz ±10 % | Mains buffering time | typ. 27 ms (120 V AC)
typ. 28 ms (230 V AC) |
Current consumption | 2.6 A (100 V AC)
2.2 A (120 V AC)
1.2 A (230 V AC)
1.1 A (240 V AC) | Protective circuit | Transient protection; Varistor |
Power factor (cos phi) | 0.95 (230 V AC) | Device mains fuse | 6.3 A internal (device protection) |
Recommended breaker for input protection | 6 A ... 16 A (Characteristic B, C, D, K or comparable) | Discharge current to PE | < 3.5 mA |
Input voltage range | 100 V DC ... 240 V DC ±10 %
160 V DC ... 240 V DC ±10 % (UL) | Derating | < 140 V DC (1 %/V) |
Current consumption | 2.7 A (100 V DC)
1.1 A (240 V DC) | Efficiency | typ. 94.5 % (120 V AC)
typ. 95.5 % (230 V AC) |
Nominal output voltage | 24 V DC | Setting range of the output voltage (U | 24 V DC ... 28 V DC (> 24 V DC, constant capacity restricted) |
Nominal output current (I | 10 A | Dynamic Boost (I | max. 15 A (5 s) |
Short-circuit-proof | yes | No-load proof | yes |
Derating | 60 °C ... 70 °C | Crest factor | typ. 1.75 (120 V AC)
typ. 1,7 (230 V AC) |
Output power (P | 240 W | Output power (P | max. 360 W (5 s) |
Connection in parallel | yes, for increased efficiency and redundancy | Connection in series | yes, for increased output voltage (observe SELV limit) |
Feedback voltage resistance | ≤ 35 V DC | Protection against overvoltage at the output (OVP) | ≤ 35 V DC |
Residual ripple | typ. 50 mV | Control deviation | < 1 % (change in load, static 10 % ... 90 %)
< 3 % (change in load, dynamic 10 % ... 90 %)
< 0.1 % (change in input voltage ±10 %) |
Rise time | ≤ 1 s (U | Minimum no-load power dissipation | < 1.2 W (120 V AC) |
Maximum no-load power dissipation | < 1.3 W (230 V AC) | Minimum nominal load power dissipation | < 14.5 W (120 V AC) |
Power loss nominal load max. | < 12 W (230 V AC) | Integrated fuse protection | no |
Position | 3.x | Position marking | 3.1 (13), 3.2 (14) |
Switch contact (floating) | OptoMOS | Switching voltage | max. 30 V DC (SELV) |
Current carrying capacity | max. 100 mA | State condition | U
U |
Position | 1.x | Position marking | 1.1 (L/+), 1.2 (N/-), 1.3 () |
Connection method | Push-in connection | rigid | 0.2 mm² ... 4 mm²
1.5 mm² (recommended) |
flexible | 0.2 mm² ... 2.5 mm²
1.5 mm² (recommended) | flexible with ferrule without plastic sleeve | 0.25 mm² ... 2.5 mm²
1.5 mm² (recommended) |
flexible with ferrule with plastic sleeve | 0.25 mm² ... 2.5 mm²
1.5 mm² (recommended) | rigid (AWG) | 24 ... 12 (Cu)
16 (recommended) |
Stripping length | 10 mm (Rigid/flexible/ferrule) | Position | 2.x |
Position marking | 2.1, 2.2 (+), 2.3, 2.4, 2.5 (-) | Connection method | Push-in connection |
rigid | 0.2 mm² ... 4 mm²
1.5 mm² (recommended) | flexible | 0.2 mm² ... 2.5 mm²
1.5 mm² (recommended) |
flexible with ferrule without plastic sleeve | 0.25 mm² ... 2.5 mm² (Cu)
1.5 mm² (recommended) | flexible with ferrule with plastic sleeve | 0.25 mm² ... 2.5 mm²
1.5 mm² (recommended) |
rigid (AWG) | 24 ... 12 (Cu)
16 (recommended) | Stripping length | 10 mm (Rigid/flexible/ferrule) |
Position | 3.x | Position marking | 3.1 (13), 3.2 (14) |
Connection method | Push-in connection | rigid | 0.2 mm² ... 1.5 mm²
0.5 mm² (recommended) |
flexible | 0.2 mm² ... 1.5 mm²
0.5 mm² (recommended) | flexible with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² (Cu)
0.5 mm² (recommended) |
flexible with ferrule with plastic sleeve | 0.25 mm² ... 0.75 mm²
0.5 mm² (recommended) | rigid (AWG) | 24 ... 16 (Cu)
20 (recommended) |
Stripping length | 10 mm (Rigid/flexible/ferrule) | Types of signaling | LED DC OK – signal state operation (U |
Function | Visual operating state display | Color | red, yellow, green (multicolor LED) |
LED off | Supply voltage input AC not present (Off) | LED on (green), DC OK | U |
LED on (yellow), IOut > 90% | U | LED on (red), ISHORT | U |
LED on (flashing red) OVP | U | Number of phases | 1.00 |
Insulation voltage input/output | 3 kV AC (type test)
3.1 kV DC (routine test) | Product type | Power supply |
Product family | TRIO POWER | MTBF (IEC 61709, SN 29500) | > 2300000 h (25 °C)
> 1300000 h (40 °C)
> 610000 h (60 °C) |
Environmental protection directive | RoHS Directive 2011/65/EU
WEEE
Reach | Article revision | 02 |
Protection class | I | Degree of pollution | 2 |
Width | 40 mm | Height | 135 mm |
Depth | 132 mm
125 mm (Device depth (DIN rail mounting)) | Installation distance right/left | 0 mm / 0 mm |
Installation distance top/bottom | 50 mm / 50 mm | Mounting type | DIN rail mounting |
Assembly note | alignable: 0 mm horizontally, 30 mm vertically | Mounting position | horizontal DIN rail NS 35, EN 60715 |
Flammability rating according to UL 94 | V0 (Housing, terminal blocks) | Hood version | Polycarbonate |
Side element version | Aluminum | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Ambient temperature (start-up type tested) | -40 °C | Maximum altitude | ≤ 5000 m (> 2000 m, Derating: 10 %/1000 m) |
Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) | Shock (operation) | 18 ms, 30g, per spatial direction (IEC 60068-2-27) |
Vibration (operation) | 10 Hz ... 50 Hz, amplitude ±0.2 mm (IEC 60068-2-6)
50 Hz ... 150 Hz, 2.3g, 90 min. | Temp code | T4 (-25 ... +70 °C; > 60 °C, Derating: 2,5 %/K) |
EN 61010-1 | III (≤ 2000 m)
II (≤ 5000 m) | EN 61010-2-201 | III (≤ 2000 m)
II (≤ 5000 m) |
Standard designation | Safety of power supply units up to 1100 V (insulation distances) | Standards/specifications | DIN EN 61558-2-16 |
Standard designation | Electrical safety | Standards/specifications | IEC 61010-2-201 (SELV) |
Standard designation | Equipping high voltage installations with electronic equipment | Standards/specifications | EN 50178/VDE 0160 (PELV) |
Standard designation | Safety for equipment for measurement, control, and laboratory use | Standards/specifications | IEC 61010-1 |
Standard designation | Protective extra-low voltage | Standards/specifications | IEC 61010-1 (SELV)
IEC 61010-2-201 (PELV) |
Standard designation | Safe isolation | Standards/specifications | IEC 61558-2-16
IEC 61010-2-201 |
Standard designation | Limitation of harmonic line currents | Standards/specifications | EN 61000-3-2 |
Standard designation | Mains variation/undervoltage | Standards/specifications | SEMI F47
EN 61000-4-11 |
Identification | UL/C-UL Listed UL 61010-1 | Identification | UL/C-UL Listed UL 61010-2-201 |
Identification | PROCESS CONTROL EQUIPEMENT FOR HAZARDOUS LOCATIONS
(EN) This equipment is suitable for use in Class I, Division 2, Groups A, B, C and D, Hazardous Locations, or non-hazardous locations only.
(EN) WARNING: Explosion Hazard - Do not connect or disconnect equipment unless power has been switched off or the area is known to be non-hazardous.
(EN) If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
(EN) This equipement must be installed in a suitable, tool secured/key locked enclosure. | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | Interference emission | Interference emission in accordance with EN 61000-6-3 (residential and commercial) and EN 61000-6-4 (industrial) |
Noise immunity | Immunity in accordance with EN 61000-6-1 (residential), EN 61000-6-2 (industrial) | Conducted noise emission | EN 55016
EN 61000-6-3 (Class B) |
Noise emission | EN 55016
EN 61000-6-3 (Class B) | Standards/regulations | EN 61000-3-2
EN 61000-3-2 (Class A) |
Frequency range | 0 kHz ... 2 kHz | Standards/regulations | EN 61000-3-3
EN 61000-3-3 |
Frequency range | 0 kHz ... 2 kHz | Standards/regulations | EN 61000-4-2 |
Contact discharge | 6 kV (Test Level 3) | Discharge in air | 8 kV (Test Level 3) |
Comments | Criterion B | Standards/regulations | EN 61000-4-3 |
Frequency range | 80 MHz ... 1 GHz | Test field strength | 10 V/m (Test Level 3) |
Frequency range | 1 GHz ... 6 GHz | Test field strength | 10 V/m (Test Level 3) |
Comments | Criterion A | Standards/regulations | EN 61000-4-4 |
Input | asymmetrical 2 kV (Test Level 3) | Output | asymmetrical 2 kV (Test Level 3) |
Signal | asymmetrical 1 kV (Test Level 3) | Comments | Criterion A |
Standards/regulations | EN 61000-4-5 | Input | symmetrical 1 kV (Test Level 3)
asymmetrical 2 kV (Test Level 3) |
Output | symmetrical 0.5 kV (Test Level 2)
asymmetrical 1 kV (Test Level 2) | Signal | asymmetrical 1 kV (Test Level 2) |
Comments | Criterion B | Standards/regulations | EN 61000-4-6 |
I/O/S | asymmetrical | Frequency range | 0.15 MHz ... 80 MHz |
Comments | Criterion A | Voltage | 10 V (Test Level 3) |
Standards/regulations | EN 61000-4-11 | Voltage | 230 V AC |
Frequency | 50 Hz | Voltage dip | 70 % |
Number of periods | 25 periods | Additional text | Class 3 |
Comments | Criterion A | Voltage dip | 40 % |
Number of periods | 10 periods | Additional text | Class 3 |
Comments | Criterion B | Voltage dip | 0 % |
Number of periods | 1 period | Additional text | Class 3 |
Comments | Criterion A | Criterion A | Normal operating behavior within the specified limits. |
Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. | Criterion C | Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements. |
Specifications may be subject to change without notice
