Product Model

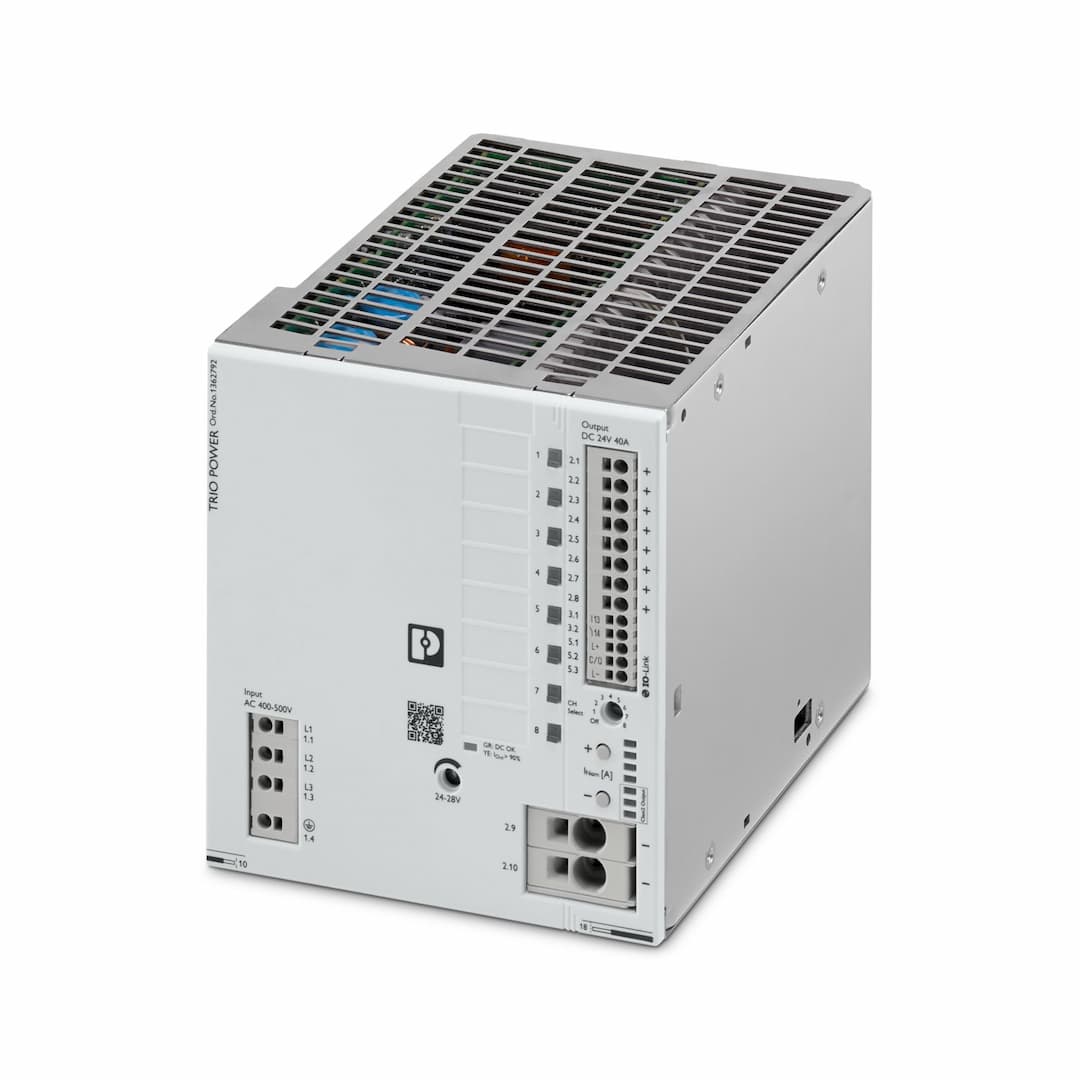

TRIO3-PS/3AC/24DC/40/8C/IOL
Selling Points
- 1High efficiency with typical efficiency of 95.4% (3x 400 V AC).
- 2Robust design with DIN rail mounting and IP20-rated enclosure.
- 3Reliable operation in a wide ambient temperature range (-25 °C to 70 °C).
- 4Stable power delivery with nominal output voltage of 24 V DC and 40 A current.
- 5Compact design reduces installation work and space requirements in control cabinets.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Supply system configuration | Star network (TN, TT, IT (PE)) | Nominal input voltage range | 3x 400 V AC ... 500 V AC |
Input voltage range | 3x 400 V AC ... 500 V AC -20 % ... +10 %
2x 400 V AC ... 500 V AC ±10 % | Typical national grid voltage | 3x 400 V AC
3x 480 V AC |
Voltage type of supply voltage | AC | Inrush current | < 21 A (25 °C) |
Inrush current integral (I | < 0.77 A | Frequency range (f | 50 Hz ... 60 Hz ±10 % |
Mains buffering time | typ. 21 ms (3x 400 V AC)
typ. 21 ms (3x 480 V AC) | Current consumption | 3x 1.5 A (3x 400 V AC)
3x 1.2 A (3x 500 V AC)
2x 2.6 A (2x 400 V AC)
2x 2.1 A (2x 500 V AC) |
Protective circuit | Transient protection; Varistor | Power factor (cos phi) | 0.94 (3x 480 V AC) |
Device mains fuse | 6.3 A internal (device protection) | Recommended breaker for input protection | 3x 6 A ... 16 A (Characteristic B, C, D, K or comparable) |
Discharge current to PE | < 3.5 mA | Efficiency | typ. 94.4 % (3x 400 V AC)
typ. 94.6 % (3x 480 V AC) |
Nominal output voltage | 24 V DC | Setting range of the output voltage (U | 24 V DC ... 28 V DC (> 24 V DC, constant capacity restricted) |
Nominal output current (I | 40 A | Dynamic Boost (I | max. 60 A (5 s) |
No. of channels | 8 | Nominal current per channel | 1 A
2 A
3.8 A
4 A
6 A
8 A
10 A |
Waiting time after switch off of a channel | 5 s | Switch-on delay of the channels | 100 ms |
Short-circuit-proof | yes | No-load proof | yes |
Derating | 60 °C ... 70 °C | Crest factor | typ. 1,54 (3x 400 V AC)
typ. 1,53 (3x 480 V AC) |
Output power (P | 960 W | Output power (P | max. 1440 W (5 s) |
Connection in parallel | no | Connection in series | no |
Max. capacitive load | 30 mF | Feedback voltage resistance | ≤ 35 V DC |
Protection against overvoltage at the output (OVP) | ≤ 35 V DC | Residual ripple | typ. 13 mV |
Control deviation | < 1 % (change in load, static 10 % ... 90 %)
< 3 % (change in load, dynamic 10 % ... 90 %)
< 0.1 % (change in input voltage ±10 %) | Rise time | ≤ 1 s (U |
Minimum no-load power dissipation | < 1.37 W (3x 400 V AC) | Maximum no-load power dissipation | < 0.77 W (3x 480 V AC) |
Minimum nominal load power dissipation | < 45.75 W (3x 400 V AC) | Power loss nominal load max. | < 42.52 W (3x 480 V AC) |
Integrated fuse protection | yes | Position | 3.x |
Position marking | 3.1 (13), 3.2 (14) | Switch contact (floating) | OptoMOS |
Switching voltage | max. 30 V DC (SELV) | Current carrying capacity | max. 100 mA |
State condition | U
U
Channel triggered or defective or OVP active | Position | 1.x |
Position marking | 1.1 (L1), 1.2 (L2), 1.3 (L3), 1.4 () | Connection method | Push-in connection |
rigid | 0.2 mm² ... 4 mm²
1.5 mm² (recommended) | flexible | 0.2 mm² ... 2.5 mm²
1.5 mm² (recommended) |
flexible with ferrule without plastic sleeve | 0.25 mm² ... 2.5 mm²
1.5 mm² (recommended) | flexible with ferrule with plastic sleeve | 0.25 mm² ... 2.5 mm²
1.5 mm² (recommended) |
rigid (AWG) | 24 ... 12 (Cu)
16 (recommended) | Stripping length | 10 mm (Rigid/flexible/ferrule) |
Position | 2.x | Position marking | 2.1, 2.2, 2.3, 2.4, 2.5, 2.6, 2.7, 2.8 (+) |
Connection method | Push-in connection | rigid | 0.2 mm² ... 4 mm²
1.5 mm² (recommended) |
flexible | 0.2 mm² ... 2.5 mm²
1.5 mm² (recommended) | flexible with ferrule without plastic sleeve | 0.25 mm² ... 2.5 mm² (Cu)
1.5 mm² (recommended) |
flexible with ferrule with plastic sleeve | 0.25 mm² ... 2.5 mm²
1.5 mm² (recommended) | rigid (AWG) | 24 ... 12 (Cu)
16 (recommended) |
Stripping length | 10 mm (Rigid/flexible/ferrule) | Position | 2.x |
Position marking | 2.9, 2.10 (-) | Connection method | Push-in connection |
rigid | 0.75 mm² ... 16 mm²
10 mm² (recommended) | flexible | 0.75 mm² ... 16 mm²
10 mm² (recommended) |
flexible with ferrule without plastic sleeve | 0.75 mm² ... 16 mm² (Cu)
10 mm² (recommended) | flexible with ferrule with plastic sleeve | 0.75 mm² ... 10 mm²
10 mm² (recommended) |
rigid (AWG) | 20 ... 4 (Cu)
8 (recommended) | Stripping length | 18 mm (Rigid/flexible/ferrule) |
Position | 3.x | Position marking | 3.1 (13), 3.2 (14) |
Connection method | Push-in connection | rigid | 0.2 mm² ... 1.5 mm²
0.5 mm² (recommended) |
flexible | 0.2 mm² ... 1.5 mm²
0.5 mm² (recommended) | flexible with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² (Cu)
0.5 mm² (recommended) |
flexible with ferrule with plastic sleeve | 0.25 mm² ... 0.75 mm²
0.5 mm² (recommended) | rigid (AWG) | 24 ... 16 (Cu)
20 (recommended) |
Stripping length | 10 mm (Rigid/flexible/ferrule) | Position | 5.x |
Position marking | 5.1 (L+), 5.2 (C/Q), 5.3 (L-) | Connection method | Push-in connection |
rigid | 0.2 mm² ... 1.5 mm²
0.5 mm² (recommended) | flexible | 0.2 mm² ... 1.5 mm²
0.5 mm² (recommended) |
flexible with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² (Cu)
0.5 mm² (recommended) | flexible with ferrule with plastic sleeve | 0.25 mm² ... 0.75 mm²
0.5 mm² (recommended) |
rigid (AWG) | 24 ... 16 (Cu)
20 (recommended) | Stripping length | 10 mm (Rigid/flexible/ferrule) |
Specification | V1.1 | Interface | IO-Link |
Number of interfaces | 1 | Connection method | Push-in connection |
Position | 5.x | Position marking | 5.1 (L+), 5.2 (C/Q), 5.3 (L-) |
Transmission physics | 3-wire, standard industrial cable | Reverse polarity protection | yes |
Transmission speed | 38.4 kbps (COM2) | Cycle time | 40 ms |
Amount of process data | 6 Byte (Input data) | Device ID | 040117 |
Vendor ID | 00B0 | Types of signaling | LED DC OK – signal state operation (U |
Function | Visual operating state display | Color | red, yellow, green (multicolor LED) |
LED off | Supply voltage input AC not present (Off) | LED on (green), DC OK | U |
LED on (yellow), IOut > 90% | U | LED on (flashing red) OVP | U |
Number of phases | 3.00 | Insulation voltage input/output | 5.3 kV DC (type test)
3.1 kV DC (routine test) |
Product type | Power supply | Product family | TRIO POWER |
MTBF (IEC 61709, SN 29500) | > 1200000 h (25 °C)
> 660000 h (40 °C)
> 265000 h (60 °C) | Environmental protection directive | RoHS Directive 2011/65/EU
WEEE
Reach |
Article revision | 02 | Protection class | I |
Degree of pollution | 2 | Width | 128 mm |
Height | 135 mm | Depth | 167 mm
160 mm (Device depth (DIN rail mounting)) |
Installation distance right/left (active) | 15 mm / 15 mm | Installation distance right/left (passive) | 0 mm / 0 mm (≤ 40 °C) |
Mounting type | DIN rail mounting | Assembly note | alignable: 0 mm horizontally, 30 mm vertically |
Mounting position | horizontal DIN rail NS 35, EN 60715 | With protective coating | no |
Flammability rating according to UL 94 | V0 (Housing, terminal blocks) | Hood version | Polycarbonate |
Side element version | Aluminum | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Ambient temperature (start-up type tested) | -40 °C | Maximum altitude | ≤ 5000 m (> 2000 m, Derating: 10 %/1000 m) |
Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) | Shock (operation) | 11 ms, 15g, je Raumrichtung (IEC 60068-2-27) |
Vibration (operation) | 10 Hz ... 50 Hz, amplitude ±0.2 mm (IEC 60068-2-6)
50 Hz ... 150 Hz, 0.7g, 90 min. | Temp code | T4 (-25 ... +70 °C; > 60 °C, Derating: 2,5 %/K) |
EN 61010-1 | III (≤ 2000 m)
II (≤ 5000 m) | EN 61010-2-201 | III (≤ 2000 m)
II (≤ 5000 m) |
Standard designation | Safety of power supply units up to 1100 V (insulation distances) | Standards/specifications | DIN EN 61558-2-16 |
Standard designation | Electrical safety | Standards/specifications | IEC 61010-2-201 (SELV) |
Standard designation | Equipping high voltage installations with electronic equipment | Standards/specifications | EN 50178/VDE 0160 (PELV) |
Standard designation | Safety for equipment for measurement, control, and laboratory use | Standards/specifications | IEC 61010-1 |
Standard designation | Protective extra-low voltage | Standards/specifications | IEC 61010-1 (SELV)
IEC 61010-2-201 (PELV) |
Standard designation | Safe isolation | Standards/specifications | IEC 61558-2-16
IEC 61010-2-201 |
Standard designation | Limitation of harmonic line currents | Standards/specifications | EN 61000-3-2 |
Standard designation | Mains variation/undervoltage | Standards/specifications | SEMI F47
EN 61000-4-11 |
Identification | UL/C-UL Listed UL 61010-1 | Identification | UL/C-UL Listed UL 61010-2-201 |
Identification | UL 1310 / CSA C22.2 No. 223 (NEC Class 2) | Identification | UL 2367 (Standard for Safety for Solid State Overcurrent Protectors) |
Identification | PROCESS CONTROL EQUIPEMENT FOR HAZARDOUS LOCATIONS
(EN) This equipment is suitable for use in Class I, Division 2, Groups A, B, C and D, Hazardous Locations, or non-hazardous locations only.
(EN) WARNING: Explosion Hazard - Do not connect or disconnect equipment unless power has been switched off or the area is known to be non-hazardous.
(EN) If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
(EN) This equipement must be installed in a suitable, tool secured/key locked enclosure. | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | Interference emission | Interference emission in accordance with EN 61000-6-3 (residential and commercial) and EN 61000-6-4 (industrial) |
Noise immunity | Immunity in accordance with EN 61000-6-1 (residential), EN 61000-6-2 (industrial) | Conducted noise emission | EN 55016
EN 61000-6-3 (Class B) |
Noise emission | EN 55016
EN 61000-6-3 (Class B) | Standards/regulations | EN 61000-3-2
EN 61000-3-2 (Class A) |
Frequency range | 0 kHz ... 2 kHz | Standards/regulations | EN 61000-3-3
EN 61000-3-3 |
Frequency range | 0 kHz ... 2 kHz | Standards/regulations | EN 61000-4-2 |
Contact discharge | 6 kV (Test Level 3) | Discharge in air | 8 kV (Test Level 3) |
Comments | Criterion B | Standards/regulations | EN 61000-4-3 |
Frequency range | 80 MHz ... 1 GHz | Test field strength | 10 V/m (Test Level 3) |
Frequency range | 1 GHz ... 6 GHz | Test field strength | 10 V/m (Test Level 3) |
Comments | Criterion A | Standards/regulations | EN 61000-4-4 |
Input | asymmetrical 2 kV (Test Level 3) | Output | asymmetrical 2 kV (Test Level 3) |
Signal | asymmetrical 1 kV (Test Level 3) | Comments | Criterion A |
Standards/regulations | EN 61000-4-5 | Input | symmetrical 1 kV (Test Level 3)
asymmetrical 2 kV (Test Level 3) |
Output | symmetrical 0.5 kV (Test Level 2)
asymmetrical 1 kV (Test Level 2) | Signal | asymmetrical 1 kV (Test Level 2) |
Comments | Criterion B | Standards/regulations | EN 61000-4-6 |
I/O/S | asymmetrical | Frequency range | 0.15 MHz ... 80 MHz |
Comments | Criterion A | Voltage | 10 V (Test Level 3) |
Standards/regulations | EN 61000-4-11 | Voltage | 480 V AC |
Frequency | 50 Hz | Voltage dip | 70 % |
Number of periods | 25 periods | Additional text | Class 3 |
Comments | Criterion A | Voltage dip | 40 % |
Number of periods | 10 periods | Additional text | Class 3 |
Comments | Criterion B | Voltage dip | 0 % |
Number of periods | 1 period | Additional text | Class 3 |
Comments | Criterion A | Criterion A | Normal operating behavior within the specified limits. |
Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. | Criterion C | Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements. |
Specifications may be subject to change without notice
