Product Model

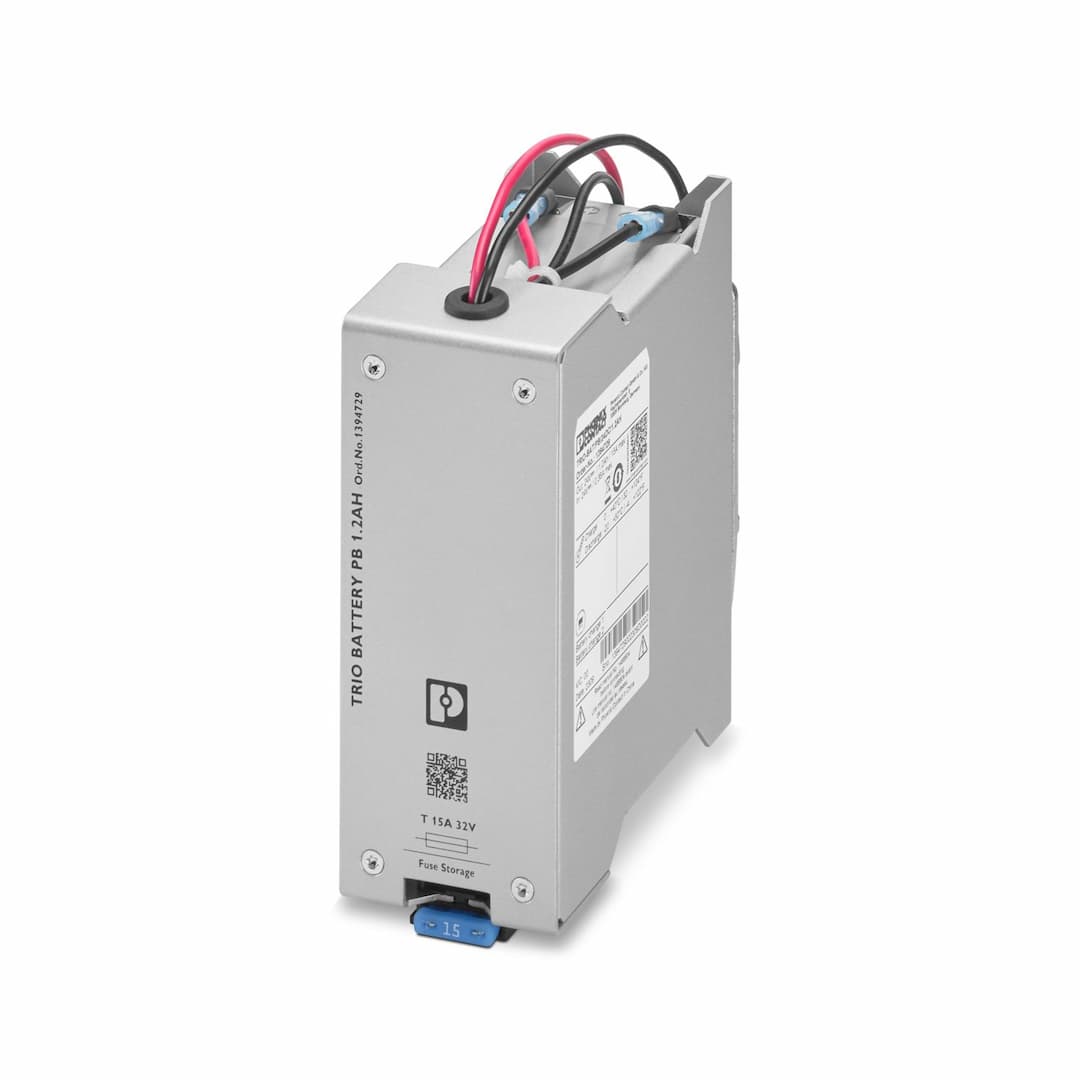

TRIO-BAT/PB/24DC/1.2AH
Selling Points
- 1Automatic Detection and Communication: The battery module automatically detects and communicates with QUINT UPS-IQ for intelligent management.
- 2Lead AGM Technology: Equipped with lead AGM (Absorbent Glass Mat) technology for maximum buffer times and reliable energy storage.
- 3Fully Charged Before Dispatch: Batteries are fully charged before being dispatched, ensuring optimal performance out of the box.
- 424 V DC Operation: Designed to operate at 24 V DC, suitable for various industrial applications.
- 5Compact Design: Compact design with a nominal capacity of 1.2 Ah, ideal for space-constrained environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on the battery | This product contains a battery with a limited shelf life that must be charged every few months. The product packaging indicates when the battery must be started up or recharged. The general shelf life can be found in the energy storage devices area under “Latest startup”. | Input voltage | 24 V DC (SELV) |
Nominal capacity | 1.2 Ah | Charging current | max. 0.36 A |
End-of-charge voltage | 27.6 V (20 °C) | Output current | max. 15 A |
Output fuse | 1x 15 A T 15A 32V, ATOF 287 from Littelfuse | Buffer time | 20 min (2 A)
5 min (5 A) |
End-of-discharge voltage | 19.2 V | Connection in parallel | yes |
Battery type | BB Battery | Battery technology | VRLA-AGM |
IQ-Technology | no | Latest startup date (battery only) | 3 Months (0 °C ... 20 °C)
1 Months (30 °C ... 40 °C) |
Latest startup (battery only) - range | 1 Months ... 3 Months (20 °C ... 30 °C) | Accumulator module service life (according to Eurobat) | 6 (20 °C) |
Size designation | Block | Temperature sensor | no |
Product type | Battery module | Product family | Battery module |
Application | TRIO-UPS-2G | Disposal | Used batteries must not be thrown away with household waste, they should instead be disposed of in accordance with applicable national regulations. |
Article revision | 02 | Protection class | III |
Degree of pollution | 2 | Width | 52 mm |
Height | 141 mm | Depth | 108 mm |
Installation distance right/left | 0 mm / 0 mm | Installation distance top/bottom | 5 mm / 5 mm |
Mounting type | DIN rail mounting | Mounting position | horizontal DIN rail NS 35, EN 60715 |
Housing material | Metal | Cable cross section | 2.5 mm² |
AWG/kcmil | 14 | Cable length | 2000 mm |
Color | red | Cable cross section | 2.5 mm² |
AWG/kcmil | 14 | Cable length | 2160 mm |
Color | black | Degree of protection | IP20 |
Ambient temperature (storage/transport) | -20 °C ... 40 °C | Ambient temperature (charge) | 0 °C ... 40 °C |
Ambient temperature (discharge) | -20 °C ... 50 °C | Max. permissible relative humidity (operation) | ≤ 95 % |
Suited for EX-applications | no |
Specifications may be subject to change without notice
