Product Model

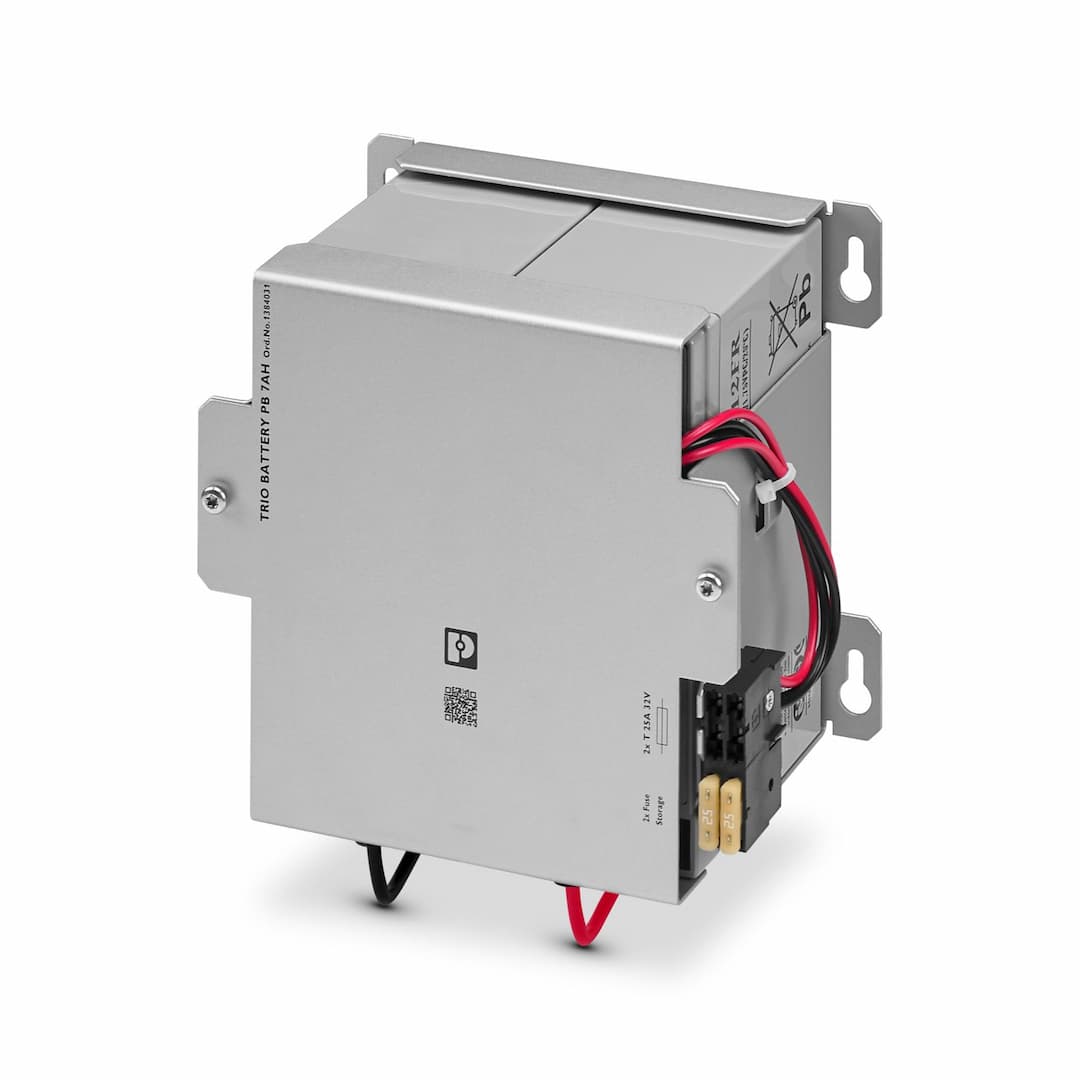

TRIO-BAT/PB/24DC/7AH
Selling Points
- 1Provides up to 9 minutes of buffer time at 20 A and 3 minutes at 40 A.
- 2Convenient panel mounting or DIN rail mounting options for easy installation.
- 3Compatible with TRIO UPS modules and includes a comprehensive approval package.
- 4Immediate availability with preassembled cables and fuse holders.
- 5Meets EU RoHS and China RoHS requirements, ensuring environmentally friendly use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on the battery | This product contains a battery with a limited shelf life that must be charged every few months. The product packaging indicates when the battery must be started up or recharged. The general shelf life can be found in the energy storage devices area under “Latest startup”. | Input voltage | 24 V DC (SELV) |
Nominal capacity | 7 Ah | Charging current | max. 2.1 A |
End-of-charge voltage | 27.6 V (20 °C) | Output current | max. 50 A |
Output fuse | 2x 25 A T 25A 32V, ATOF 287 from Littelfuse | Buffer time | 9 min (20 A)
3 min (40 A) |
End-of-discharge voltage | 19.2 V | Connection in parallel | yes |
Battery type | BB Battery | Battery technology | VRLA-AGM |
IQ-Technology | no | Latest startup date (battery only) | 12 Months (0 °C ... 20 °C) |
Latest startup (battery only) - range | 9 Months ... 12 Months (20 °C ... 30 °C)
6 Months ... 9 Months (30 °C ... 40 °C) | Accumulator module service life (according to Eurobat) | 6 (20 °C) |
Size designation | Block | Temperature sensor | no |
Product type | Battery module | Product family | Battery module |
Application | TRIO-UPS-2G | Disposal | Used batteries must not be thrown away with household waste, they should instead be disposed of in accordance with applicable national regulations. |
Article revision | 02 | Protection class | III |
Degree of pollution | 2 | Width | 164 mm |
Height | 159 mm | Depth | 114 mm |
Diameter | 5 mm | Installation distance right/left | 0 mm / 0 mm |
Installation distance top/bottom | 5 mm / 5 mm | Mounting type | Wall mounting, optional DIN rail mounting |
Housing material | Metal | Cable cross section | 6 mm² |
AWG/kcmil | 10 | Cable length | 1990 mm |
Color | red | Cable cross section | 6 mm² |
AWG/kcmil | 10 | Cable length | 1990 mm |
Color | black | Degree of protection | IP20 |
Ambient temperature (storage/transport) | -20 °C ... 40 °C | Ambient temperature (charge) | 0 °C ... 40 °C |
Ambient temperature (discharge) | -20 °C ... 50 °C | Max. permissible relative humidity (operation) | ≤ 95 % |
Suited for EX-applications | no |
