Product Model

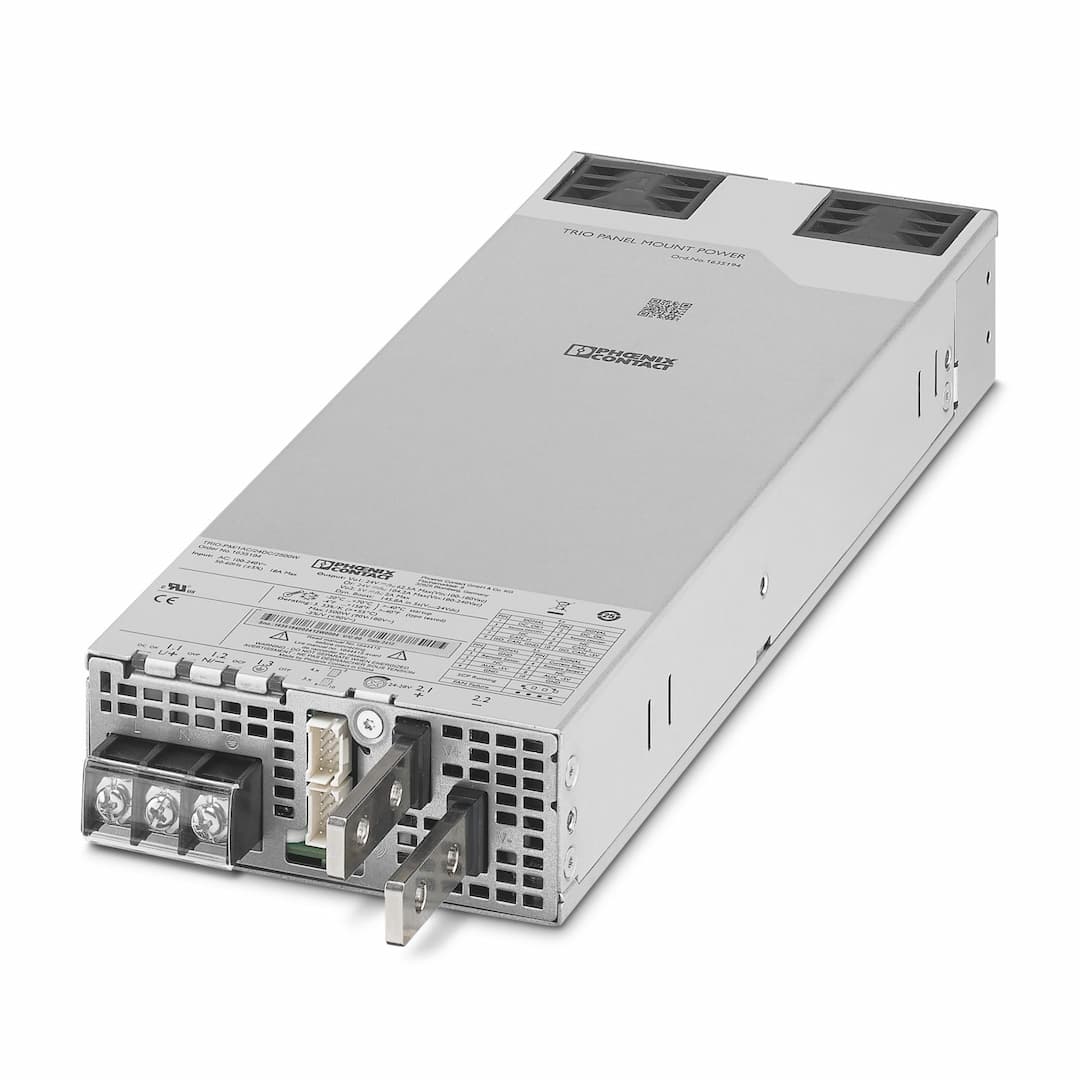

TRIO-PM/1AC/24DC/2500W
Selling Points
- 1High Power Output: 2500W for demanding industrial applications.
- 2Robust Design: Metal housing with high electric strength and wide temperature range.
- 3Advanced Surge Protection: Type 3 surge protection with protective plug and base element.
- 4Reliable Operation: High MTBF (mean time between failures) of more than 500,000 hours.
- 5Flexible Installation: DIN rail mounting for easy integration into industrial systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 100 V AC ... 240 V AC | Input voltage range | 100 V AC ... 240 V AC -15 % ... +10 % |
Derating | 90 V AC ... 180 V AC (≤ 1500 W)
2 %/V
< 90 V AC (2 %/V from 1500 W)
< 127 V DC () | Typical national grid voltage | 120 V AC
230 V AC |
Inrush current | < 30 A (25 °C) | Inrush current integral (I | < 4.121 A |
Frequency range (f | 50 Hz ... 60 Hz ±5 % | Mains buffering time | typ. 16 ms (120 V AC)
typ. 16 ms (230 V AC@80% load) |
Buffer period | typ. 10 ms (120 V AC)
typ. 10 ms (230 V AC) | Current consumption | 16.7 A (100 V AC)
11.7 A (230 V AC)
20 A (85 V AC)
15 A (180 V AC) |
Protective circuit | Transient protection | Power factor (cos phi) | 0.97 (230 V AC) |
Device mains fuse | 25 A internal (device protection) | Discharge current to PE | < 2 mA |
Input voltage range | 140 V DC ... 340 V AC -15 %; +10 % | Derating | 127 V DC ... 254 V DC () |
Current consumption | 13.8 A (100 V DC)
12.3 A (240 V DC) | Efficiency | typ. 91.49 % (120 V AC)
typ. 93.42 % (230 V AC) |
Nominal output voltage | 24 V DC | Setting range of the output voltage (U | 24 V DC ... 28 V DC |
Output current I | 145.8 A () | Nominal output current (I | 104.17 A |
Static Boost (I | 125 A | Dynamic Boost (I | max. 145.83 A (5 s) |
Nominal power | 2500 W | Derating | 55 °C ... 70 °C |
Output current limit | 145.8 A | Output power (P | 2500 W |
Output power (P | 3000 W | Output power (P | max. 3500 W (5 s) |
Connection in parallel | max. 4 | Connection in series | max. 2 |
Residual ripple | typ. 240 mV | Control deviation | < 2 % (change in load, static 10 % ... 90 %)
< 0.2 % (change in input voltage ±10 %) |
Rise time | ≤ 2 s (U | Minimum no-load power dissipation | < 8 W (120 V AC) |
Maximum no-load power dissipation | < 12 W (230 V AC) | Minimum nominal load power dissipation | < 140 W (120 V AC) |
Power loss nominal load max. | < 180 W (230 V AC) | Integrated fuse protection | yes |
Position | 1.x | Position marking | 1.1 (L/+), 1.2 (N/-), 1.3 () |
Connection method | Busbar connection | rigid | 2 mm²
13.3 mm² (recommended) |
rigid (AWG) | 10 ... 18 (Cu)
14 (recommended) | Stripping length | 15 mm (rigid/flexible)
5 mm (rigid/flexible) |
rigid (AWG) | ... 22 (Cu)
24 (recommended) | Types of signaling | LED |
Function | Visual operating state display | Color | red, green |
Position | 4.x | Signalization designation | Relais 13/14 |
Position marking | 3.1 (13) | Current carrying capacity | max. 3.4 mA |
Number of phases | 1.00 | Insulation voltage input/output | 4 kV AC (type test)
1.5 kV AC (routine test) |
Product type | Power supply | Product family | TRIO POWER |
MTBF (IEC 61709, SN 29500) | > 500000 h (25 °C) | Article revision | 00 |
Protection class | I | Degree of pollution | 2 |
Temperature | 25 °C | Additional text | 8 years |
Width | 108 mm | Height | 278 mm |
Depth | 41 mm () | Mounting type | Wall mounting |
With protective coating | no | Flammability rating according to UL 94 | V0 (Housing, terminal blocks) |
Hood version | Aluminum (AlMg3) | Side element version | Aluminum |
Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 70 °C (> 55 °C Derating: 2.5 %/K) |
Ambient temperature (storage/transport) | -40 °C ... 70 °C | Ambient temperature (start-up type tested) | -40 °C ... 70 °C |
Maximum altitude | ≤ 5000 m (> 2000 m, Derating: 10 %/1000 m) | Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
Shock (operation) | 11 ms, 15g, per spatial direction (IEC 60068-2-27) | Vibration (operation) | 10 Hz ... 18.2 Hz, amplitude ±0.75 mm (IEC 60068-2-6)
18.2 Hz ... 150 Hz, 1g, 90 min. |
EN 61010-1 | III (≤ 2000 m)
II (≤ 5000 m) | EN 61010-2-201 | III (≤ 2000 m)
II (≤ 5000 m) |
Standard designation | Safety of power supply units up to 1500 V (insulation distances) | Standard designation | Electrical safety |
Standards/specifications | IEC 61010-2-201 (SELV) | Standard designation | Safety for equipment for measurement, control, and laboratory use |
Standards/specifications | IEC 61010-1 | Standard designation | Protective extra-low voltage |
Standards/specifications | IEC 61010-1 (SELV)
IEC 61010-2-201 (PELV) | Standard designation | Safe isolation |
Standards/specifications | IEC 61010-2-201 | Standard designation | Limitation of harmonic line currents |
Standards/specifications | EN 61000-3-2 | Standard designation | Mains variation/undervoltage |
Standards/specifications | SEMI F47 - 0706 | Identification | UL/C-UL Listed UL 61010-1 |
Identification | UL/C-UL Listed UL 61010-2-201 | Identification | (EN) WARNING: Explosion Hazard - Do not connect or disconnect equipment unless power has been switched off or the area is known to be non-hazardous.
(EN) If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
(EN) This equipement must be installed in a suitable, tool secured/key locked enclosure. |
EMC requirements for noise emission | EN 61000-6-3 | Conducted noise emission | EN 55016 EN 61000-6-3 |
Standards/regulations | EN 61000-3-3 | Frequency range | 0 kHz ... 2 kHz |
Standards/regulations | EN 61000-4-2 | Contact discharge | 6 kV (Test Level 3) |
Discharge in air | 15 kV (Test Level 3) | Comments | Criterion A |
Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 1 GHz |
Test field strength | 10 V/m (Test Level 3) | Frequency range | 1 GHz ... 6 GHz |
Test field strength | 10 V/m (Test Level 3) | Comments | Criterion A |
Standards/regulations | EN 61000-4-4 | Input | asymmetrical 2 kV (Test Level 3) |
Comments | Criterion A | Standards/regulations | EN 61000-4-5 |
Input | symmetrical 2 kV (Test Level 4 - symmetrical)
asymmetrical 1 kV (Test Level 2 - asymmetrical) | Comments | Criterion A |
Standards/regulations | EN 61000-4-6 | Input/Output | asymmetrical |
Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
Voltage | 6 V | Standards/regulations | EN 61000-4-8 |
Standards/regulations | EN 61000-4-11 | Voltage | 230 V AC |
Frequency | 50 Hz | Criterion A | Normal operating behavior within the specified limits. |
Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Specifications may be subject to change without notice
