Product Model

TRIO-PS-2G/1500DC/24DC/1.5

In Stock
Last updated: 2025/4/18

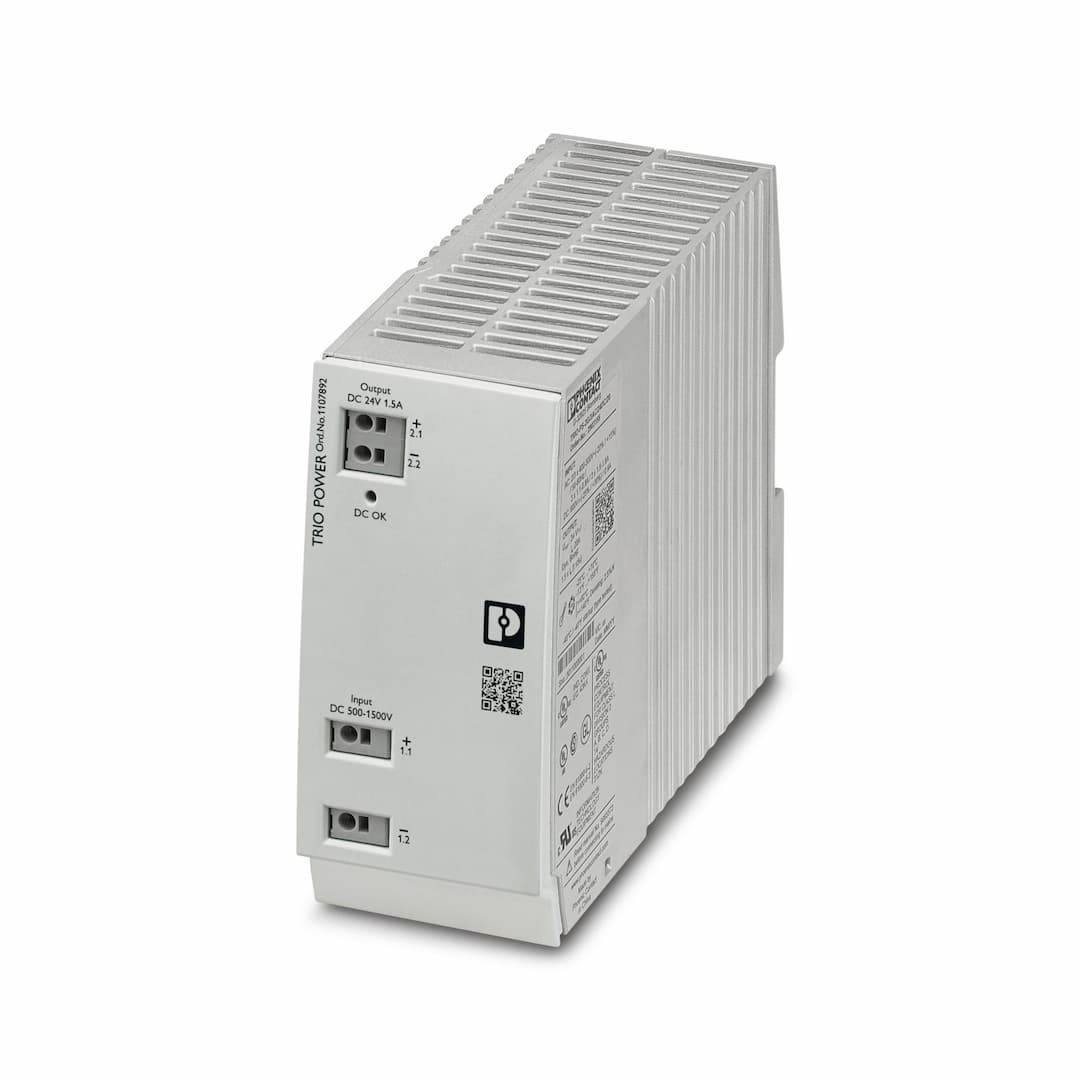

Phoenix Contact TRIO-PS-2G/1500DC/24DC/1.5

Selling Points

  • 1Wide input voltage range: 500V DC to 1500V DC.
  • 2High reliability with MTBF > 740,000 hours at 60°C.
  • 3Easy DIN rail mounting with push-in connections.
  • 4Compact dimensions: 48 mm x 130 mm x 115 mm.
  • 5Redundancy capability through parallel connection for increased capacity.
Product Details
TRIO-PS-2G/1500DC/24DC/1.5
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Nominal input voltage range
500 V DC ... 1500 V DC
Input voltage range
450 V DC ... 1650 V DC
Wide-range input
no
Electric strength, max.
≤ 1800 V DC 1 s
Typical national grid voltage
500 V DC 1500 V DC
Voltage type of supply voltage
DC
Inrush current integral (I
typ. 0.15 A
Current consumption
typ. 85 mA (450 V DC) typ. 30 mA (1500 V DC)
Recommended breaker for input protection
1 A (gPV)
Recommended fuse for input protection
1500 V DC
Efficiency
typ. 88 % (500 V DC) typ. 87 % (900 V DC) typ. 83 % (1500 V DC)
Nominal output voltage
24 V DC ±3 %
Nominal output current (I
1.5 A
Derating
> 60 °C ... 70 °C (2.5 %/K)
Feedback voltage resistance
≤ 35 V DC
Protection against overvoltage at the output (OVP)
≤ 30 V DC
Control deviation
< 1 % (change in load, static 10 % ... 90 %) < 3 % (Dynamic load change 10 % ... 90 %, 10 Hz) < 0.1 % (change in input voltage ±10 %)
Residual ripple
< 40 mV < 50 mV
Short-circuit-proof
yes
No-load proof
yes
Output power
36 W
Maximum no-load power dissipation
< 1.1 W (500 V DC) < 1.4 W (900 V DC) < 2.4 W (1500 V DC)
Power loss nominal load max.
< 4.2 W (500 V DC) < 5.5 W (900 V DC) < 7.5 W (1500 V DC)
Rise time
≤ 30 ms (U
Connection in parallel
yes, for redundancy and increased capacity
Connection in series
no
Connection method
Push-in connection
Conductor cross section, rigid min.
1 mm²
Conductor cross section, rigid max.
4 mm²
Conductor cross section flexible min.
1 mm²
Conductor cross section flexible max.
2.5 mm²
Single conductor/flexible terminal point with ferrule with plastic sleeve, min.
1 mm²
Single conductor/flexible terminal point with ferrule with plastic sleeve, max.
2.5 mm²
Single conductor/flexible terminal point with ferrule without plastic sleeve, min.
1 mm²
Single conductor/flexible terminal point with ferrule without plastic sleeve, max.
2.5 mm²
Conductor cross section AWG min.
18
Conductor cross section AWG max.
12
Stripping length
10 mm
Connection method
Push-in connection
Conductor cross section, rigid min.
1 mm²
Conductor cross section, rigid max.
4 mm²
Conductor cross section flexible min.
1 mm²
Conductor cross section flexible max.
2.5 mm²
Single conductor/flexible terminal point with ferrule with plastic sleeve, min.
1 mm²
Single conductor/flexible terminal point with ferrule with plastic sleeve, max.
2.5 mm²
Single conductor/flexible terminal point with ferrule without plastic sleeve, min.
1 mm²
Single conductor/flexible terminal point with ferrule without plastic sleeve, max.
2.5 mm²
Conductor cross section AWG min.
18
Conductor cross section AWG max.
12
Stripping length
10 mm
Types of signaling
LED
Signalization designation
DC OK
Status display
"DC OK" LED green
Note on status display
U
Color
green
DC OK
U
Number of phases
1.00
Insulation voltage input/output
4.2 kV DC (type test) 2.6 kV DC (routine test)
Product type
DC/DC converters
Product family
TRIO POWER
MTBF (IEC 61709, SN 29500)
> 3300000 h (25 °C) > 1760000 h (40 °C) > 740000 h (60 °C)
Article revision
02
Protection class
II
Degree of pollution
2
Width
48 mm
Height
130 mm
Depth Device depth (DIN rail mounting)
115 mm (Device depth (DIN rail mounting))
Installation distance right/left
0 mm / 0 mm
Installation distance top/bottom
50 mm / 50 mm
Mounting type
DIN rail mounting
Assembly note
alignable: horizontally 0 mm (≤ 40 °C) 10 mm (≤ 70 °C), vertically 50 mm
Mounting position
horizontal DIN rail NS 35, EN 60715
With protective coating
no
Flammability rating according to UL 94 (housing / terminal blocks)
V0
Housing material
Plastic
Type of housing
Polycarbonate
Degree of protection
IP20
Ambient temperature (operation)
-25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K)
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Maximum altitude
≤ 4000 m (> 2000 m, Derating: 10 %/1000 m)
Max. permissible relative humidity (operation)
≤ 95 % (at 25 °C, non-condensing)
Shock
11 ms, 15 g, in each space direction (according to IEC 60068-2-27)
Vibration (operation)
< 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6) 15 Hz ... 150 Hz, 2.3g, 90 min.
Standard - Electrical safety
EN 62109-1:2011
Standard – Safety extra-low voltage
IEC 62109-1:2011 (SELV)
Standard - Safe isolation
DIN VDE 0100-410
IEC 62109-1
II
UL approvals
UL 62109-1:2014 UL 1741
Electromagnetic compatibility
Conformance with EMC Directive 2014/30/EU
Low Voltage Directive
Conformance with Low Voltage Directive 2014/35/EC
Noise immunity
EN 61000-6-2:2005
Conducted noise emission
EN 55016 EN 61000-6-4 (Class A)
Noise emission
EN 55016 EN 61000-6-4 (Class A)
Standards/regulations
EN 61000-4-2
Contact discharge
4 kV (Test Level 2)
Discharge in air
8 kV (Test Level 3)
Comments
Criterion A
Standards/regulations
EN 61000-4-3
Frequency range
80 MHz ... 1 GHz
Test field strength
10 V/m (> Test intensity 3)
Frequency range
1 GHz ... 2.7 GHz
Test field strength
10 V/m (Test Level 2)
Frequency range
2.7 GHz ... 6 GHz
Test field strength
3 V/m (Test Level 1)
Comments
Criterion A
Standards/regulations
EN 61000-4-4
Input
4 kV (Test Level 4 - asymmetrical)
Output
4 kV (Test Level 4 - asymmetrical)
Comments
Criterion A
Standards/regulations
EN 61000-4-5
Input
1 kV (Test Level 3 - symmetrical) 2 kV (Test Level 3 - asymmetrical)
Output
0.5 kV (Test Level 2 - symmetrical) 0.5 kV (Test Level 1 - asymmetrical)
Comments
Criterion B
Standards/regulations
EN 61000-4-6
Input/Output
asymmetrical
Frequency range
0.15 MHz ... 80 MHz
Comments
Criterion A
Voltage
10 V (Test Level 3)
Standards/regulations
EN 61000-4-11
Standards/regulations
EN 61000-6-4
Radio interference voltage in acc. with EN 55011
EN 55011 (EN 55022) Class A industrial area of application
Emitted radio interference in acc. with EN 55011
EN 55011 (EN 55022) Class A industrial area of application
Criterion A
Normal operating behavior within the specified limits.
Criterion B
Temporary impairment to operational behavior that is corrected by the device itself.

Specifications may be subject to change without notice
