Product Model

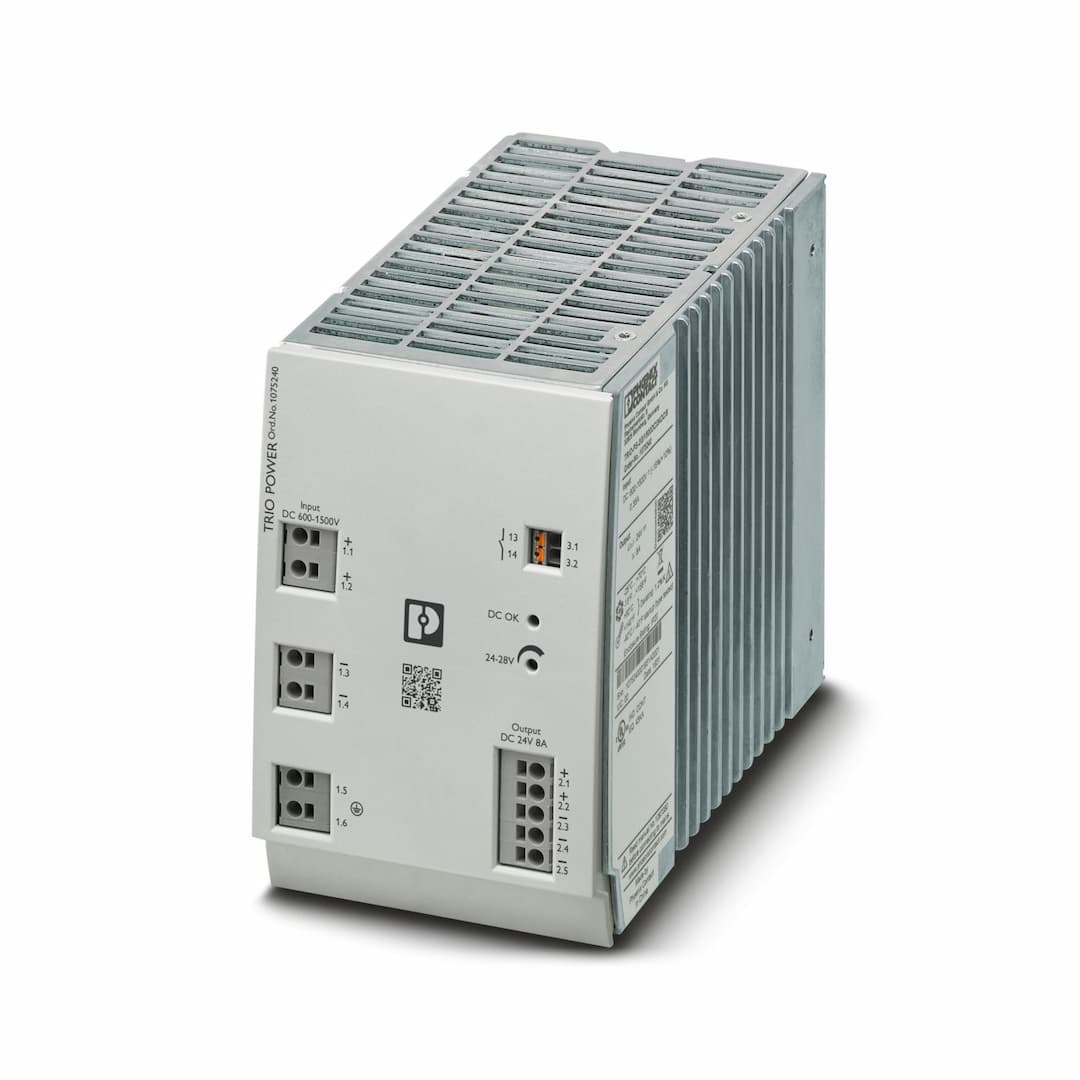

TRIO-PS-2G/1500DC/24DC/8
Selling Points
- 1Robust design for safe operation and high reliability.
- 2Integrated wide-range DC input for versatile applications.
- 3Tool-free push-in connection technology for easy wiring.
- 4Over Voltage Protection (OVP) limits surge voltages to ≤30 V DC.
- 5High efficiency with typical efficiency ranging from 89% to 91.5%.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 600 V DC ... 1500 V DC | Input voltage range | 600 V DC ... 1500 V DC -15 % ... +10 % |
Wide-range input | no | Input voltage range DC | 600 V DC ... 1500 V DC -15 % ... +10 % |
Electric strength, max. | ≤ 1800 V DC 1 s | Typical national grid voltage | 1500 V DC
600 V DC |
Voltage type of supply voltage | DC | Inrush current integral (I | typ. 0.15 A |
Current consumption | typ. 0.35 A (600 V DC)
typ. 0.145 A (1500 V DC) | Recommended breaker for input protection | 1 A (gPV) |
Recommended fuse for input protection | 1500 V DC | Efficiency | typ. 91.5 % (600 V DC)
typ. 90.9 % (900 V DC)
typ. 89 % (1500 V DC) |
Nominal output voltage | 24 V DC ±1 % | Setting range of the output voltage (U | 24 V DC ... 28 V DC (> 24 V DC, constant capacity restricted) |
Nominal output current (I | 8 A | Derating | > 60 °C ... 70 °C (2.5 %/K) |
Feedback voltage resistance | ≤ 35 V DC | Protection against overvoltage at the output (OVP) | ≤ 30 V DC |
Control deviation | < 1 % (change in load, static 10 % ... 90 %)
< 3 % (Dynamic load change 10 % ... 90 %, 10 Hz)
< 0.1 % (change in input voltage ±10 %) | Residual ripple | < 40 mV
< 50 mV |
Short-circuit-proof | yes | No-load proof | yes |
Output power | 192 W | Maximum no-load power dissipation | < 9 W |
Power loss nominal load max. | < 24 W | Rise time | ≤ 30 ms (U |
Connection in parallel | yes, for redundancy and increased capacity | Connection in series | no |
Continuous load current | 100 mA | Default | closed |
Digital | 30 V AC 30 V DC 100 mA | Connection method | Push-in connection |
Conductor cross section, rigid min. | 1 mm² | Conductor cross section, rigid max. | 4 mm² |
Conductor cross section flexible min. | 1 mm² | Conductor cross section flexible max. | 2.5 mm² |
Single conductor/flexible terminal point with ferrule with plastic sleeve, min. | 1 mm² | Single conductor/flexible terminal point with ferrule with plastic sleeve, max. | 2.5 mm² |
Single conductor/flexible terminal point with ferrule without plastic sleeve, min. | 1 mm² | Single conductor/flexible terminal point with ferrule without plastic sleeve, max. | 2.5 mm² |
Conductor cross section AWG min. | 18 | Conductor cross section AWG max. | 12 |
Stripping length | 10 mm | Connection method | Push-in connection |
Conductor cross section, rigid min. | 1 mm² | Conductor cross section, rigid max. | 4 mm² |
Conductor cross section flexible min. | 1 mm² | Conductor cross section flexible max. | 2.5 mm² |
Single conductor/flexible terminal point with ferrule with plastic sleeve, min. | 0.2 mm² | Single conductor/flexible terminal point with ferrule with plastic sleeve, max. | 1.5 mm² |
Single conductor/flexible terminal point with ferrule without plastic sleeve, min. | 0.2 mm² | Single conductor/flexible terminal point with ferrule without plastic sleeve, max. | 1.5 mm² |
Conductor cross section AWG min. | 18 | Conductor cross section AWG max. | 12 |
Stripping length | 10 mm | Connection method | Push-in connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 1.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 1.5 mm² |
Single conductor/flexible terminal point with ferrule with plastic sleeve, min. | 0.2 mm² | Single conductor/flexible terminal point with ferrule with plastic sleeve, max. | 1.5 mm² |
Single conductor/flexible terminal point with ferrule without plastic sleeve, min. | 0.2 mm² | Single conductor/flexible terminal point with ferrule without plastic sleeve, max. | 1.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 16 |
Stripping length | 8 mm | Types of signaling | LED
Floating signal contact |
Signalization designation | DC OK | Status display | "DC OK" LED green |
Note on status display | U | Color | green |
DC OK | U | Number of phases | 1.00 |
Insulation voltage input/output | 4.2 kV DC (type test)
2.6 kV DC (routine test) | Product type | DC/DC converters |
Product family | TRIO POWER | MTBF (IEC 61709, SN 29500) | > 1500000 h (25 °C)
> 900000 h (40 °C)
> 400000 h (60 °C) |
Article revision | 02 | Protection class | I |
Degree of pollution | 2 | Width | 88.5 mm |
Height | 130 mm | Depth | 160 mm |
Installation distance right/left | 0 mm / 0 mm (≤ 40°C) | Installation distance right/left (active) | 10 mm / 10 mm (≤ 70 °C) |
Installation distance top/bottom | 50 mm / 50 mm (≤ 70 °C) | Installation distance top/bottom (active) | 50 mm / 50 mm (≤ 70 °C) |
Mounting type | DIN rail mounting | Assembly note | alignable: horizontally 0 mm (≤ 40 °C) 10 mm (≤ 70 °C), vertically 50 mm |
Mounting position | horizontal DIN rail NS 35, EN 60715 | With protective coating | no |
Flammability rating according to UL 94 (housing / terminal blocks) | V0 | Housing material | Metal |
Type of housing | Aluminum (AlMg3) | Hood version | Polycarbonate |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 70 °C (>60°C derating: 1.2%/K) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Ambient temperature (start-up type tested) | -40 °C |
Maximum altitude | ≤ 4000 m (> 2000 m, Derating: 10 %/1000 m) | Climatic class | 3K3 (in acc. with EN 60721) |
Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) | Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min. | Standard - Electrical safety | EN 62109-1:2011 |
Standard – Safety extra-low voltage | IEC 62109-1:2011 (SELV) | Standard - Safe isolation | DIN VDE 0100-410 |
IEC 62109-1 | II | UL approvals | UL 62109-1:2014 |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
Noise immunity | EN 61000-6-2:2005 | Conducted noise emission | EN 55016
EN 61000-6-4 (Class A) |
Noise emission | EN 55016
EN 61000-6-4 (Class A) | Standards/regulations | EN 61000-4-2 |
Contact discharge | 4 kV (Test Level 2) | Discharge in air | 8 kV (Test Level 3) |
Comments | Criterion A | Standards/regulations | EN 61000-4-3 |
Frequency range | 80 MHz ... 1 GHz | Test field strength | 20 V/m (> Test intensity 3) |
Frequency range | 1 GHz ... 2 GHz | Test field strength | 10 V/m (Test Level 3) |
Frequency range | 2 GHz ... 3 GHz | Test field strength | 10 V/m (Test Level 3) |
Comments | Criterion A | Standards/regulations | EN 61000-4-4 |
Input | 4 kV (Test Level 4 - asymmetrical) | Output | 2 kV (Test Level 3 - asymmetrical) |
Signal | 1 kV (Test Level 3 - asymmetrical) | Comments | Criterion B |
Standards/regulations | EN 61000-4-5 | Input | 1 kV (Test Level 3 - symmetrical)
2 kV (Test Level 3 - asymmetrical) |
Output | 0.5 kV (Test Level 2 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical) | Signal | 1 kV (Test Level 2 - asymmetrical) |
Comments | Criterion B | Standards/regulations | EN 61000-4-6 |
Input/Output | asymmetrical | Frequency range | 0.15 MHz ... 80 MHz |
Comments | Criterion A | Voltage | 10 V (Test Level 3) |
Standards/regulations | EN 61000-4-11 | Standards/regulations | EN 61000-6-4 |
Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class A industrial area of application | Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class A industrial area of application |
Criterion A | Normal operating behavior within the specified limits. | Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Specifications may be subject to change without notice
