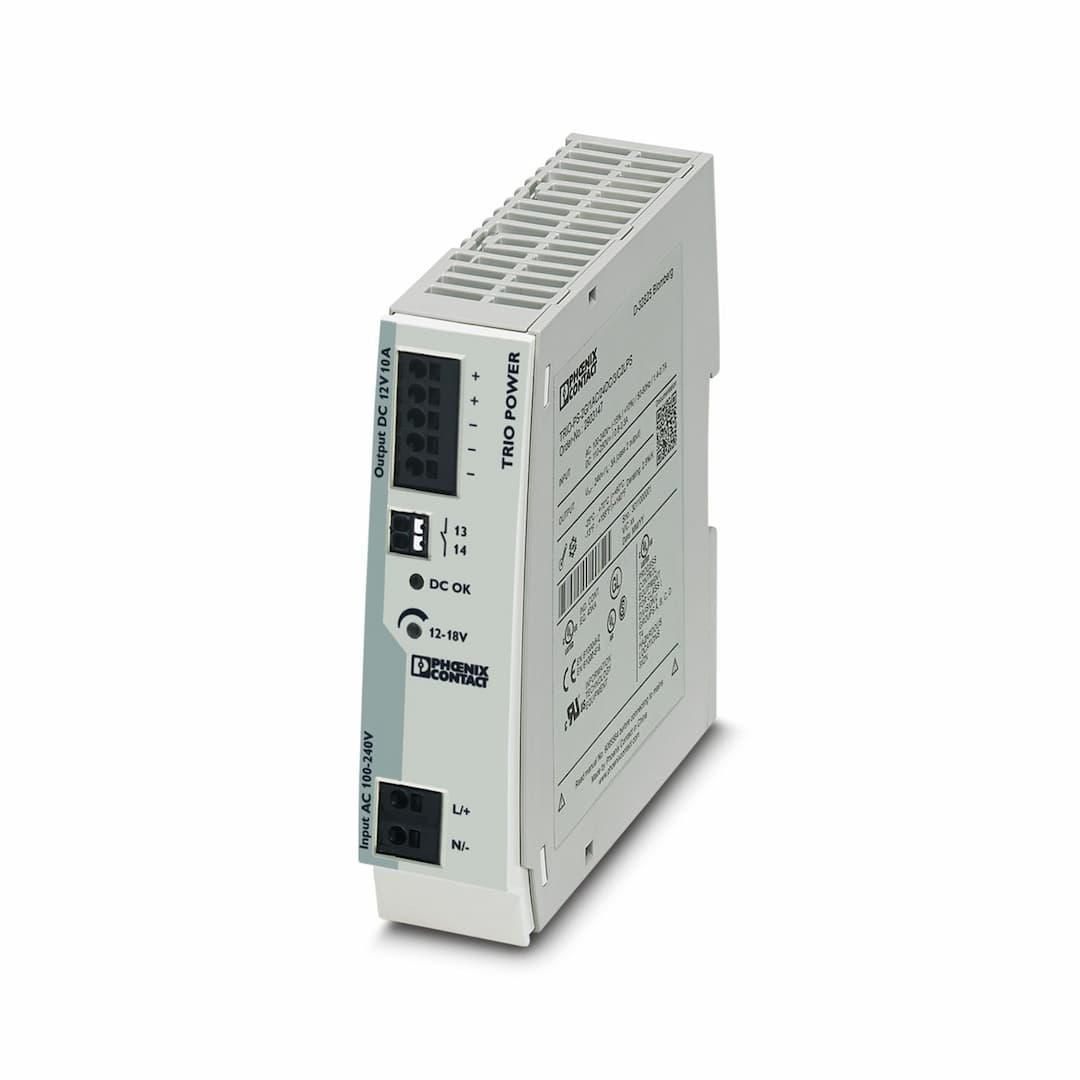

Product Model
TRIO-PS-2G/1AC/12DC/10
Selling Points
- 1Operates from -25°C to +70°C, ideal for industrial and outdoor applications.
- 2Supplies up to 150% of nominal current for 5 seconds to start challenging loads reliably.
- 3Range from 12 V DC to 18 V DC via rotary potentiometer for optimal adjustment.
- 4Excellent energy savings with very low no-load power consumption and high efficiency at nominal load.
- 5Includes transient surge protection, short-circuit, overload, over-voltage, and over-temperature protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Network type | Star network | Nominal input voltage range | 100 V AC ... 240 V AC |
Input voltage range | 100 V AC ... 240 V AC -15 % ... +10 % | Input voltage range AC | 85 V AC ... 264 V AC |
Electric strength, max. | ≤ 300 V AC 15 s | Typical national grid voltage | 120 V AC
230 V AC |
Voltage type of supply voltage | AC/DC | Inrush current | ≤ 30 A (typical) |
Inrush current integral (I | < 1.5 A | Inrush current limitation | typ. 30 A (after 1 ms) |
AC frequency range | 50 Hz ... 60 Hz ±10 % | Mains buffering time | typ. 20 ms (120 V AC)
typ. 20 ms (230 V AC) |
Current consumption | 2.2 A (100 V AC)
1.9 A (120 V AC)
1.1 A (230 V AC)
1.1 A (240 V AC) | Nominal power consumption | 254.7 VA |
Protective circuit | Transient surge protection; Varistor | Power factor (cos phi) | 0.53 |
Typical response time | < 1 s | Input fuse | 6.3 A Fast blow (internal (device protection)) |
Recommended breaker for input protection | 6 A ... 16 A (Characteristics B, C, D, K) | Discharge current to PE | < 0.25 mA |
Nominal input voltage range | 122 V DC ... 250 V DC | Input voltage range | 122 V DC ... 275 V DC |
Extended input voltage range in operation | > 106 V AC | Derating | < 99 V DC (2 %/V) |
Shut-down voltage | 105 V DC | Voltage type of supply voltage | AC/DC |
Mains buffering time | > 100 ms (230 V AC) | Current consumption | 1.4 A (122 V DC)
0.6 A (250 V DC) |
Efficiency | typ. 87.5 % (120 V AC)
typ. 88.7 % (230 V AC) | Output characteristic | U/I with dynamic load reserve |
Nominal output voltage | 12 V DC ±1 % | Setting range of the output voltage (U | 12 V DC ... 18 V DC (> 12 V DC, constant capacity restricted) |
Nominal output current (I | 10 A | Dynamic Boost (I | 15 A (5 s) |
Derating | > 60 °C ... 70 °C (2.5 %/K) | Feedback voltage resistance | < 25 V |
Protection against overvoltage at the output (OVP) | ≤ 22 V DC | Control deviation | < 1 % (change in load, static 10 % ... 90 %)
< 3 % (Dynamic load change 10 % ... 90 %, 10 Hz)
< 0.1 % (change in input voltage ±10 %) |
Residual ripple | < 50 mV | Output power | 120 W
180 W |
Maximum no-load power dissipation | < 1 W (230 V) | Power loss nominal load max. | < 15 W (230 V) |
Rise time | ≤ 10 ms (U | Connection in parallel | yes, for redundancy and increased capacity |
Connection in series | yes | Maximum switching voltage | 30 V AC/DC |
Continuous load current | 100 mA | Connection method | Push-in connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 4 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
Stripping length | 10 mm | Connection method | Push-in connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 4 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
Stripping length | 8 mm | Connection method | Push-in connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 1.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 1.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 16 |
Stripping length | 8 mm | Types of signaling | LED
Floating signal contact |
Signalization designation | DC OK | Status display | “DC OK” LED |
Color | green | Number of phases | 1.00 |
Insulation voltage input/output | 3 kV AC (type test)
1.5 kV AC (routine test) | Product type | Power supply |
Product family | TRIO POWER | MTBF (IEC 61709, SN 29500) | > (25 °C)
> 1700000 h (40 °C)
60 °C |
Article revision | 04 | Protection class | II (in closed control cabinet) |
Degree of pollution | 2 | Width | 35 mm |
Height | 130 mm | Depth | 115 mm |
Installation distance right/left | 0 mm / 0 mm | Installation distance top/bottom | 50 mm / 50 mm |
Mounting type | DIN rail mounting | Assembly note | alignable: horizontally 0 mm (≤ 40 °C) 10 mm (≤ 70 °C), vertically 50 mm |
Mounting position | horizontal DIN rail NS 35, EN 60715 | With protective coating | no |
Flammability rating according to UL 94 (housing / terminal blocks) | V0 | Housing material | Plastic |
Housing material | PC | Type of housing | Polycarbonate |
Hood version | Polycarbonate | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Ambient temperature (start-up type tested) | -25 °C | Maximum altitude | ≤ 5000 m (> 2000 m, Derating: 10 %/1000 m) |
Climatic class | 3K3 (in acc. with EN 60721) | Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) | Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 4g, 90 min. |
Rail applications | EN 50121-4 | Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations | EN 50178/VDE 0160 (PELV) |
Standard – Limitation of mains harmonic currents | EN 61000-3-2 | Standard - Electrical safety | IEC 62368-1 (SELV) |
Standard – Safety extra-low voltage | IEC 60950-1 (SELV) and EN 60204-1 (PELV) | Standard - Safe isolation | DIN VDE 0100-410 |
Standard - Safety of transformers | EN 61558-2-16 (air clearances and creepage distances only) | UL approvals | UL Listed UL 508
UL/C-UL Recognized UL 60950-1 |
SIL in accordance with IEC 61508 | 0 | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 |
EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 | Noise emission | EN 55011 (EN 55022) |
Standards/regulations | EN 61000-4-2 | Contact discharge | 6 kV (Test Level 3) |
Discharge in air | 8 kV (Test Level 3) | Comments | Criterion A |
Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 6 GHz |
Test field strength | 10 V/m (Test Level 3) | Frequency range | 80 MHz ... 6 GHz |
Test field strength | 10 V/m (Test Level 3) | Frequency range | 80 MHz ... 6 GHz |
Test field strength | 10 V/m (Test Level 3) | Comments | Criterion A |
Standards/regulations | EN 61000-4-4 | Input | 4 kV (Test Level 3 - asymmetrical) |
Output | 2 kV (Test Level 3 - asymmetrical) | Signal | 2 kV (Test Level 3 - asymmetrical) |
Comments | Criterion A | Standards/regulations | EN 61000-4-5 |
Input | 1 kV (Test Level 3 - symmetrical)
2 kV (Test Level 3 - asymmetrical) | Output | 0.5 kV (Test Level 2 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical) |
Signal | 0.5 kV (Test Level 1 - asymmetrical) | Comments | Criterion B |
Standards/regulations | EN 61000-4-6 | Input/Output | asymmetrical |
Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
Voltage | 10 V (Test Level 3) | Standards/regulations | EN 61000-4-11 |
Voltage | 230 V AC | Frequency | 50 Hz |
Standards/regulations | EN 61000-6-3 | Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential | Criterion A | Normal operating behavior within the specified limits. |
Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
