Product Model

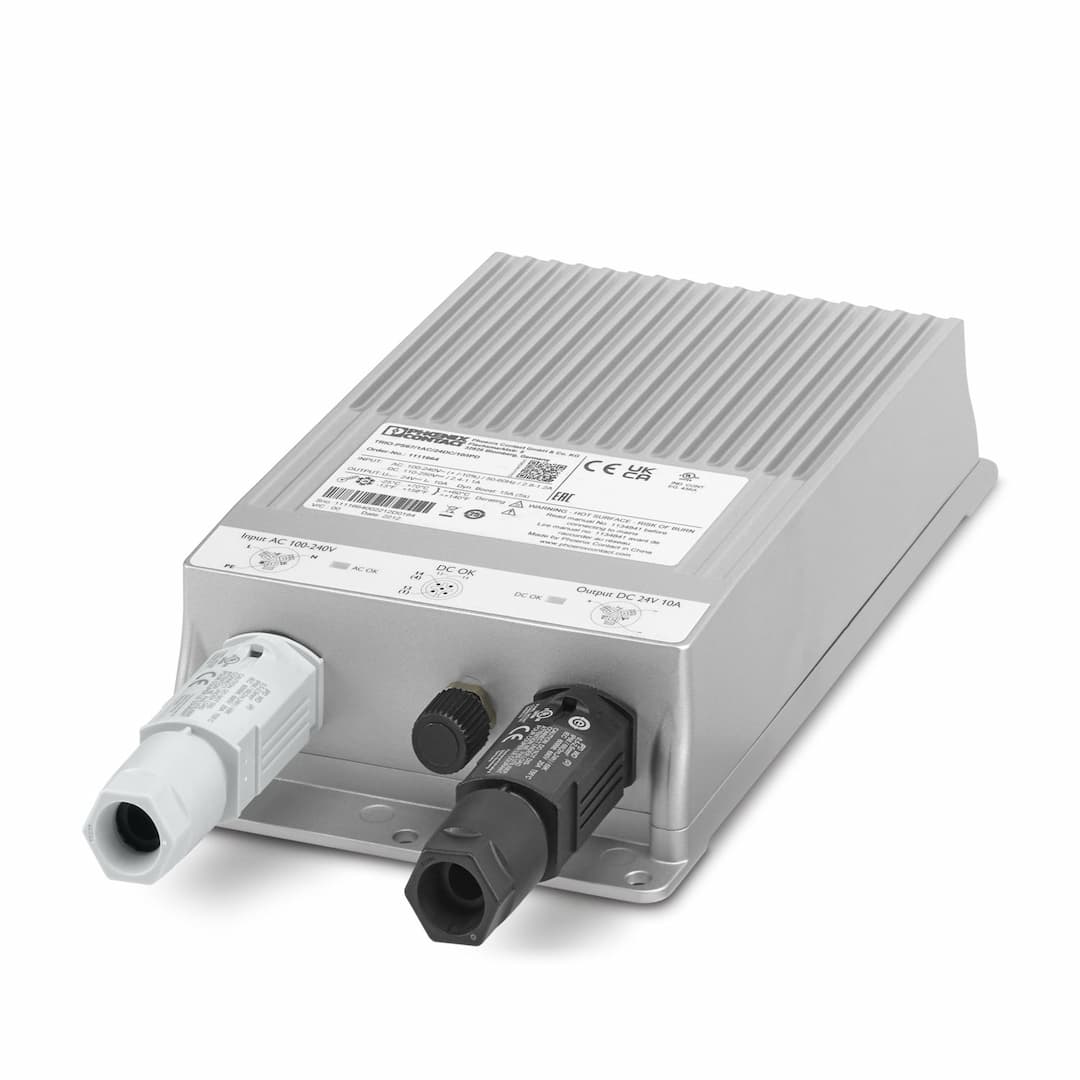

TRIO-PS67/1AC/24DC/10/IPD
Selling Points
- 1IP67 Protection: Durable and weather-resistant cast-aluminum housing.
- 2Wide Input Range: Compatible with 110 VDC to 250 VDC input voltages.
- 3High Efficiency: Up to 93% efficiency at 230 V AC.
- 4Reliable Output: Fixed 24 V DC output voltage with low residual ripple.
- 5Robust Design: Mechanically and electrically robust, ensuring safe operation in harsh conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Supply system configuration | Star network (TN, TT, IT (PE)) | Nominal input voltage range | 100 V AC ... 240 V AC |
Input voltage range | 100 V AC ... 240 V AC ±10 % | Switch-on voltage | > 75 V AC |
Shut-down voltage | < 70 V AC | Electric strength, max. | ≤ 300 V AC 15 s |
Typical national grid voltage | 120 V AC
230 V AC | Voltage type of supply voltage | AC/DC |
Inrush current | ≤ 25 A (typical) | Inrush current integral (I | < 0.5 A |
Inrush current limitation | typ. 25 A (after 1 ms) | AC frequency range | 50 Hz ... 60 Hz ±10 % |
Frequency range (f | 50 Hz ... 60 Hz ±10 % | Mains buffering time | > 15 ms (120 V AC)
> 15 ms (230 V AC) |
Current consumption | 2.8 A (100 V AC)
1.2 A (240 V AC) | Nominal power consumption | 285 VA |
Protective circuit | Transient surge protection; Varistor | Power factor (cos phi) | > 0.93 |
Switch-on time | < 1 s | Input fuse | 6.3 A (internal (device protection)) |
Recommended breaker for input protection | 6 A ... 16 A (US/CAN: branch circuit protection 20 A) (Characteristic B, C, D, K or comparable) | Discharge current to PE | < 3.5 mA |
Nominal input voltage range | 110 V DC ... 250 V DC | Input voltage range | 110 V DC ... 250 V DC ±10 % |
Switch-on voltage | ≥ 95 V DC | Shut-down voltage | < 95 V DC |
Voltage type of supply voltage | AC/DC | Mains buffering time | > 15 ms (230 V AC) |
Current consumption | 2.4 A (110 V DC)
1.1 A (250 V DC) | Efficiency | typ. 91 % (120 V AC)
typ. 93 % (230 V AC) |
Nominal output voltage | 24 V DC ±1 % | Nominal output current (I | 10 A |
Dynamic Boost (I | 15 A (5 s) | Derating | > 60 °C ... 70 °C (2.5 %/K) |
Feedback voltage resistance | ≤ 35 V DC | Protection against overvoltage at the output (OVP) | ≤ 30 V DC |
Control deviation | < 1 % (change in load, static 10 % ... 90 %)
< 3 % (Dynamic load change 10 % ... 90 %, 10 Hz)
< 0.1 % (change in input voltage ±10 %) | Residual ripple | ≤ 10 mV |
Short-circuit-proof | yes | No-load proof | yes |
Output power | 240 W
360 W | Maximum no-load power dissipation | < 10 W (120 V AC)
< 6 W (230 V AC) |
Power loss nominal load max. | < 22 W (120 V AC)
< 17 W (230 V AC) | Rise time | ≤ 12 ms (U |
Connection in parallel | yes, for redundancy and increased capacity | Connection in series | yes |
Maximum switching voltage | 30 V AC/DC | Continuous load current | 100 mA |
Default | closed | Digital | 30 V AC 30 V DC 100 mA |
Connection method | IPD panel feed-through with Push-in spring connection | Conductor cross section, rigid min. | 0.5 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.5 mm² |
Conductor cross section flexible max. | 2.5 mm² | Single conductor/terminal point, stranded, with ferrule, min. | 0.5 mm² |
Single conductor/terminal point, stranded, with ferrule, max. | 2.5 mm² | Conductor cross section AWG max. | 14 |
Color-coded | gray | Type of locking | Clip locking |
Number of positions | 3 | Connection method | IPD panel feed-through with Push-in spring connection |
Conductor cross section, rigid min. | 0.5 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.5 mm² | Conductor cross section flexible max. | 2.5 mm² |
Single conductor/terminal point, stranded, with ferrule, min. | 0.5 mm² | Single conductor/terminal point, stranded, with ferrule, max. | 2.5 mm² |
Conductor cross section AWG max. | 14 | Color-coded | black |
Type of locking | Clip locking | Number of positions | 3 |
Connection method | M12 circular connector | Coding | A |
Type of locking | M12 | Number of positions | 5 |
Types of signaling | LED
Floating signal contact | Status display | 2 x LED (green) |
Signalization designation | AC OK | Status display | LED |
Color | green | AC OK | AC |
Signalization designation | DC OK | Status display | LED |
Color | green | DC OK | U |
Number of phases | 1.00 | Insulation voltage input/output | 3 kV AC (type test)
1.5 kV AC (routine test) |
Product type | Power supply | Product family | TRIO POWER |
MTBF (IEC 61709, SN 29500) | > 1200000 h (25 °C)
> 700000 h (40 °C)
> 300000 h (60 °C) | Article revision | 02 |
Protection class | I | Pollution degree | 2 (IEC 61010-1) |
Width | 136 mm | Height | 292 mm |
Depth | 53 mm | Diameter | 5.6 mm |
Installation distance right/left | 10 mm / 10 mm | Installation distance top/bottom | 0 mm / 102 mm |
Mounting type | Wall mounting | Assembly note | Alignable: 20 mm horizontally, 50 mm vertically above, 100 mm vertically below |
With protective coating | no | Flammability rating according to UL 94 (housing / terminal blocks) | V0 |
Housing material | Metal | Type of housing | Aluminum (AlMg3) |
Degree of protection | IP67 | Ambient temperature (operation) | -25 °C ... 70 °C (Derating >60°C: 2.5 %/K) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Ambient temperature (start-up type tested) | -40 °C |
Maximum altitude | ≤ 4000 m (> 2000 m, Derating: 10 %/1000 m) | Climatic class | 4K26 (EN 60721-3-4) |
Max. permissible relative humidity (operation) | ≤ 100 % (at 25 °C, non-condensing) | Permissible humidity (operation) | ≤ 100 % (at 25 °C, non-condensing) |
Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) | Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 4g, 90 min. |
EN 61010-1 | III (≤ 2000 m)
II (≤ 4000 m) | Standard designation | Electrical safety |
Standards/specifications | IEC 61010-1 | Standard designation | Protective extra-low voltage |
Standards/specifications | IEC 61010-1 (SELV)
IEC 61010-2-201 (PELV) | Standard designation | Safe isolation |
Standard designation | Low-voltage power supplies, DC output | Standards/specifications | EN 61204-3 |
Standard designation | Safety requirements for electrical equipment for measurement, control, and laboratory use | Standards/specifications | IEC 61010-1 |
Standard designation | Limit values for harmonic currents | Standards/specifications | EN 61000-3-2 |
Standard designation | Degrees of protection provided by enclosures (IP code) | Standards/specifications | EN/IEC 60529 |
Identification | UL/C-UL Listed UL 61010-1 | Identification | UL/C-UL Listed UL 61010-2-201 |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
Interference emission | Interference emission in accordance with EN 61000-6-3 (residential and commercial) and EN 61000-6-4 (industrial) | Noise immunity | Immunity in accordance with EN 61000-6-1 (residential), EN 61000-6-2 (industrial) |
Conducted noise emission | EN 55016
EN 61000-6-3 (Class B) | Noise emission | EN 55011 (EN 55022) |
Noise emission | EN 55016
EN 61000-6-3 (Class B) | Standards/regulations | EN 61000-3-2
EN 61000-3-2 (Class A) |
Standards/regulations | EN 61000-4-2 | Contact discharge | 6 kV (Test Level 3) |
Comments | Criterion A | Standards/regulations | EN 61000-4-3 |
Frequency range | 80 MHz ... 1 GHz | Test field strength | 10 V/m (Test Level 3) |
Frequency range | 1 GHz ... 2 GHz | Test field strength | 10 V/m (Test Level 3) |
Frequency range | 2 GHz ... 6 GHz | Test field strength | 10 V/m (Test Level 3) |
Comments | Criterion A | Standards/regulations | EN 61000-4-4 |
Input | 4 kV (Test Level 3 - asymmetrical) | Output | 2 kV (Test Level 3 - asymmetrical) |
Signal | 2 kV (Test Level 3 - asymmetrical) | Comments | Criterion A |
Standards/regulations | EN 61000-4-5 | Input | 1 kV (Test Level 1 - symmetrical)
2 kV (Test Level 1 - asymmetrical) |
Output | 0.5 kV (Test Level 1 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical) | Signal | 1 kV (Test Level 2 - asymmetrical) |
Comments | Criterion B | Standards/regulations | EN 61000-4-6 |
Input/Output | asymmetrical | Frequency range | 0.15 MHz ... 80 MHz |
Comments | Criterion A | Voltage | 10 V (Test Level 3) |
Standards/regulations | EN 61000-4-11 | Voltage | 230 V AC |
Frequency | 50 Hz | Voltage dip | 70 % |
Number of periods | 25 periods | Comments | Criterion A |
Voltage dip | 40 % | Number of periods | 10 periods |
Comments | Criterion A | Voltage dip | 0 % |
Number of periods | 1 period | Comments | Criterion A |
Standards/regulations | EN 61000-6-3 | Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential | Criterion A | Normal operating behavior within the specified limits. |
Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. | Criterion C | Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements. |
