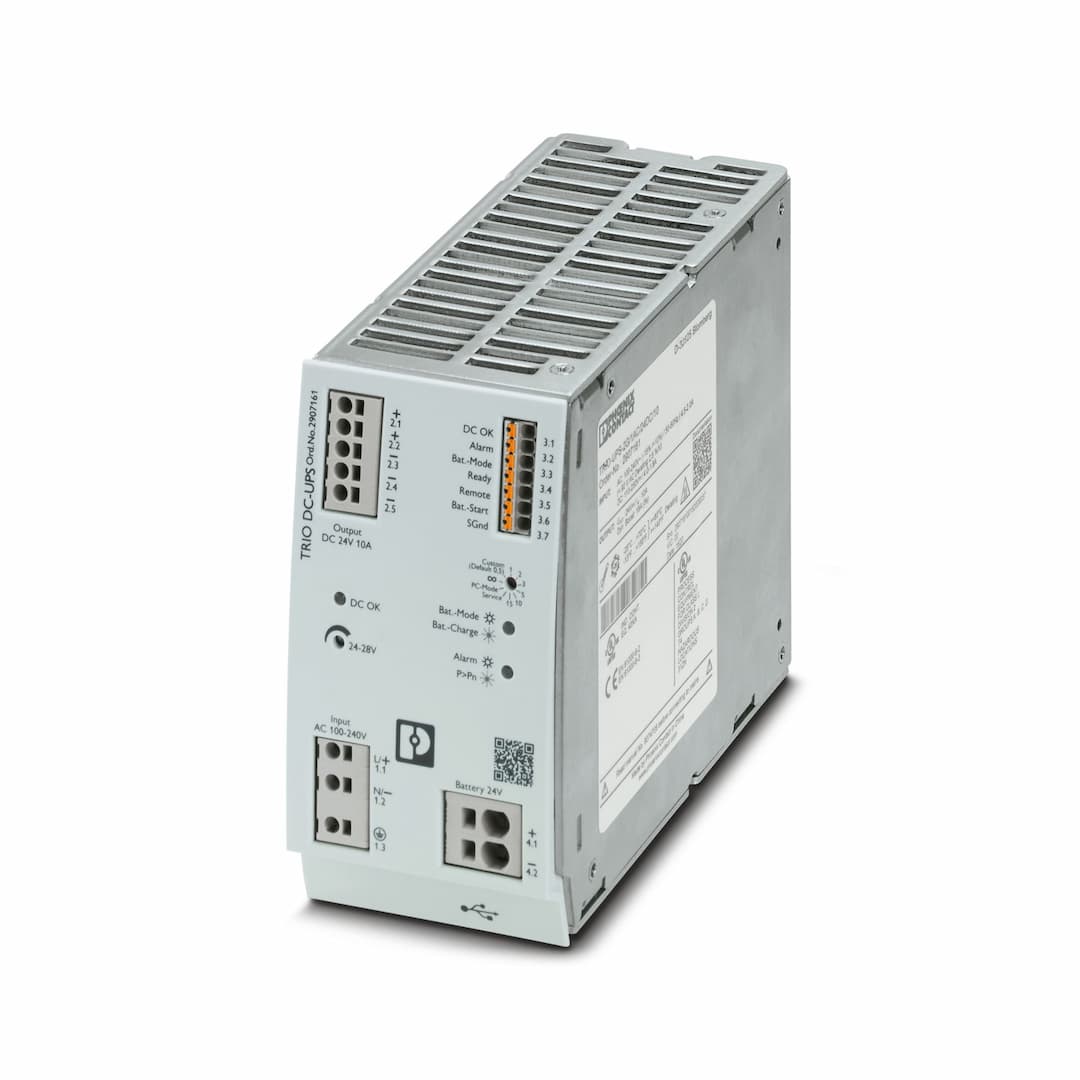

TRIO-UPS-2G/1AC/24DC/10 - Reliable DC Power for Industrial PCs

Selling Points

1Wide Input Range: Supports input voltage from 100 V AC to 250 V DC.
2High MTBF: Offers a Mean Time Between Failures (MTBF) of over 2 million hours.
3Push-in Connection Technology: Easy device wiring with no tools required.
4Space-Saving Design: Combines UPS module and power supply in a single housing.
5Long Buffer Times: Up to 3 hours of buffer time with VRLA energy storage systems.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Input voltage range	100 V AC ... 240 V AC -15 % ... +10 %	Voltage type of supply voltage	AC
Inrush current	< 9 A	Inrush current integral (I	< 0.2 A
Frequency range (f	50 Hz ... 60 Hz (±10 %)	Mains buffering time	≥ 25 ms (120 V AC)
Switch-on time	typ. 200 ms	Typical current consumption	4.5 A (100 V AC)
Input fuse	6.3 A (slow-blow, internal)	Connection labeling	3.6
Signalization designation	Bat.-Start	Low signal	Connection to SGnd with < 2.7 kΩ
High signal	Open (> 200 kΩ between Bat.-Start and SGnd)	Connection labeling	3.5
Signalization designation	Remote	Low signal	Connection to SGnd with < 2.7 kΩ
High signal	Open (> 35 kΩ between Remote and SGnd)	Efficiency	typ. 90 % (120 V AC) typ. 91 % (230 V AC) typ. 96 % (Battery operation)
Derating	> 60 °C (2.5%/K of P	Crest factor	1.5 (120 V AC) 1.5 (230 V AC)
Switch-over time	< 20 ms	UPS connection in parallel	yes, with diode module uncoupled
UPS connection in series	no	Energy storage device connection in parallel	yes
Feedback voltage resistance	≤ 35 V DC	Protection against overvoltage at the output (OVP)	< 30 V DC
Residual ripple	< 20 mV	Control deviation	< 0.55 % (change in load, static 10 % ... 90 %) < 2.6 % (Dynamic load change 10 % ... 90 %, 10 Hz) < 0.05 % (change in input voltage ±10 %)
Rise time	< 30 ms	Permissible backup fuse	B10
Output voltage	24 V DC	Output voltage range	24 V DC ... 28 V DC (> 24 V constant capacity)
Output current I	10 A	Dynamic Boost (I	15 A
Output power P	240 W	Maximum no-load power dissipation	< 3 W (230 V AC)
Power loss nominal load max.	< 32 W (230 V AC)	Output voltage	U
Output voltage range	18 V DC ... 30 V DC	Output current I	10 A
Connection labeling	3.2	Signalization designation	Alarm
Type of signaling	LED red	Switching output	Transistor output, active
Output voltage	24 V DC	Continuous load current	20 mA
LED status indicator	red	Connection labeling	3.3
Signalization designation	Battery mode	Type of signaling	Yellow LED
Switching output	Transistor output, active	Output voltage	24 V DC
Continuous load current	20 mA	LED status indicator	yellow
Connection labeling	3.1	Signalization designation	DC OK
Type of signaling	Green LED	Switching output	Transistor output, active
Output voltage	24 V DC	Continuous load current	20 mA
LED status indicator	green	Connection labeling	3.4
Signalization designation	Ready	Switching output	Transistor output, active
Output voltage	24 V DC	Continuous load current	20 mA
Nominal voltage U	24 V DC	End-of-charge voltage	max. 30 V DC
Charging current (Configurable)	0.2 A ... 3 A (-25 °C ... 40 °C)	Charging current (Reduced)	3 A ... 0 A (40 °C ... 65 °C)
Charging current (Preset)	2.1 A (-25 °C ... 40 °C)	Charging current ()	3 A
Nominal capacity range	1.2 Ah ... 40 Ah	Battery technology	VRLA-AGM
Charge characteristic curve	IU	Connection method	Push-in connection
rigid	0.2 mm² ... 4 mm²	flexible	0.2 mm² ... 2.5 mm²
flexible with ferrule without plastic sleeve	0.25 mm² ... 2.5 mm²	flexible with ferrule with plastic sleeve	0.25 mm² ... 1.5 mm²
rigid (AWG)	24 ... 12	Stripping length	10 mm
Connection method	Push-in connection	rigid	0.2 mm² ... 4 mm²
flexible	0.2 mm² ... 2.5 mm²	flexible with ferrule without plastic sleeve	0.25 mm² ... 2.5 mm²
flexible with ferrule with plastic sleeve	0.25 mm² ... 1.5 mm²	rigid (AWG)	24 ... 12
Stripping length	10 mm	Connection method	Push-in connection
rigid	0.2 mm² ... 1.5 mm²	flexible	0.2 mm² ... 1.5 mm²
flexible with ferrule without plastic sleeve	0.2 mm² ... 1.5 mm²	flexible with ferrule with plastic sleeve	0.2 mm² ... 0.75 mm²
rigid (AWG)	24 ... 16	Stripping length	8 mm
Connection method	Push-in connection	rigid	0.2 mm² ... 10 mm²
flexible	0.2 mm² ... 6 mm²	flexible with ferrule without plastic sleeve	0.25 mm² ... 6 mm²
flexible with ferrule with plastic sleeve	0.25 mm² ... 4 mm²	rigid (AWG)	24 ... 8
Stripping length	15 mm	Interface	USB (Modbus/RTU)
Number of interfaces	1	Connection method	MINI-USB Type B
Locking	Screw	Number of phases	1.00
Insulation voltage input/output	4 kV AC (type test) 2 kV AC (routine test)	Insulation voltage output / PE	500 V AC 500 V AC (routine test)
Insulation voltage input / PE	3.5 kV AC (type test) 2 kV AC (routine test)	Product type	DC UPS with integrated power supply
Product family	TRIO UPS	MTBF (IEC 61709, SN 29500)	> 2007013 h (230 V AC, at 25 °C) > 1210518 h (230 V AC, at 40 °C) > 575978 h (230 V AC, at 60 °C)
Article revision	04	Protection class	I
Degree of pollution	2	Current	10 A
Temperature	40 °C	Time	73005 h
Additional text	230 V AC	Width	68 mm
Height	130 mm	Depth	68 mm
Installation distance right/left	0 mm / 0 mm	Installation distance top/bottom	50 mm / 50 mm
Mounting type	DIN rail mounting	Assembly note	alignable: horizontally 0 mm, vertically 50 mm
Mounting position	horizontal DIN rail NS 35, EN 60715	Flammability rating according to UL 94 (housing / terminal blocks)	V0
Housing material	Metal	Hood version	PC
Side element version	Aluminum	Degree of protection	IP20
Ambient temperature (operation)	-25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K)	Ambient temperature (storage/transport)	-40 °C ... 85 °C
Ambient temperature (start-up type tested)	-40 °C	Maximum altitude	≤ 4000 m (> 2000 m, observe derating)
Climatic class	3K3 (in acc. with EN 60721)	Max. permissible relative humidity (operation)	≤ 93 % (at +25 °C, non-condensing)
Shock	30g, 18 ms in accordance with IEC 60068-2-27	Vibration (operation)	in accordance with IEC 60068-2-6
EN 61010-1	II	Standard designation	Safety for equipment for measurement, control, and laboratory use
Standards/specifications	IEC 61010-1	Standard designation	Protective extra-low voltage
Standards/specifications	IEC 61010 (SELV) / (PELV)	Standard designation	Safe isolation
Standards/specifications	DIN VDE 0100-410	Standard designation	Low-voltage power supplies, DC output
Standards/specifications	EN 61204-3	Standard designation	Ship’s bridge
Standards/specifications	IEC/EN 60945	Identification	UL Listed UL 61010
Identification	UL/C-UL Listed ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C	Identification	DNV
Identification	LR	Electromagnetic compatibility	Conformance with EMC Directive 2014/30/EU
Low Voltage Directive	Conformance with Low Voltage Directive 2014/35/EC	EMC requirements for noise emission	EN 61000-6-3 EN 61000-6-4
EMC requirements for noise immunity	EN 61000-6-1 EN 61000-6-2	Noise immunity	Immunity in accordance with EN 61000-6-2 (industrial)
Conducted noise emission	EN 61000-6-3	Noise emission	EN 61000-6-3
DNV GL conducted interference	Class B	Additional text	Area power distribution
DNV GL noise radiation	Class B	Additional text	Bridge and deck area
Standards/regulations	EN 61000-3-2	Standards/regulations	EN 61000-3-3
Standards/regulations	EN 61000-4-2	Contact discharge	6 kV (Test Level 3)
Discharge in air	8 kV (Test Level 3)	Standards/regulations	EN 61000-4-3
Frequency range	80 MHz ... 6 GHz	Test field strength	10 V/m
Frequency range	1.4 GHz ... 6 GHz	Test field strength	3 V/m
Standards/regulations	EN 61000-4-4	Input	4 kV
Output	2 kV	Signal	2 kV
Standards/regulations	EN 61000-4-5	Input	1 kV (Test Level 3 - symmetrical) 2 kV (Test Level 3 - asymmetrical)
Output	0.5 kV (Test Level 2 - symmetrical) 1 kV (Test Level 2 - asymmetrical)	Signal	1 kV (Test Level 2 - asymmetrical)
Standards/regulations	EN 61000-4-6	Frequency range	0.15 MHz ... 80 MHz
Voltage	10 V	Standards/regulations	EN 61000-4-12
Comments	Criterion A

Specifications may be subject to change without notice
