Product Model

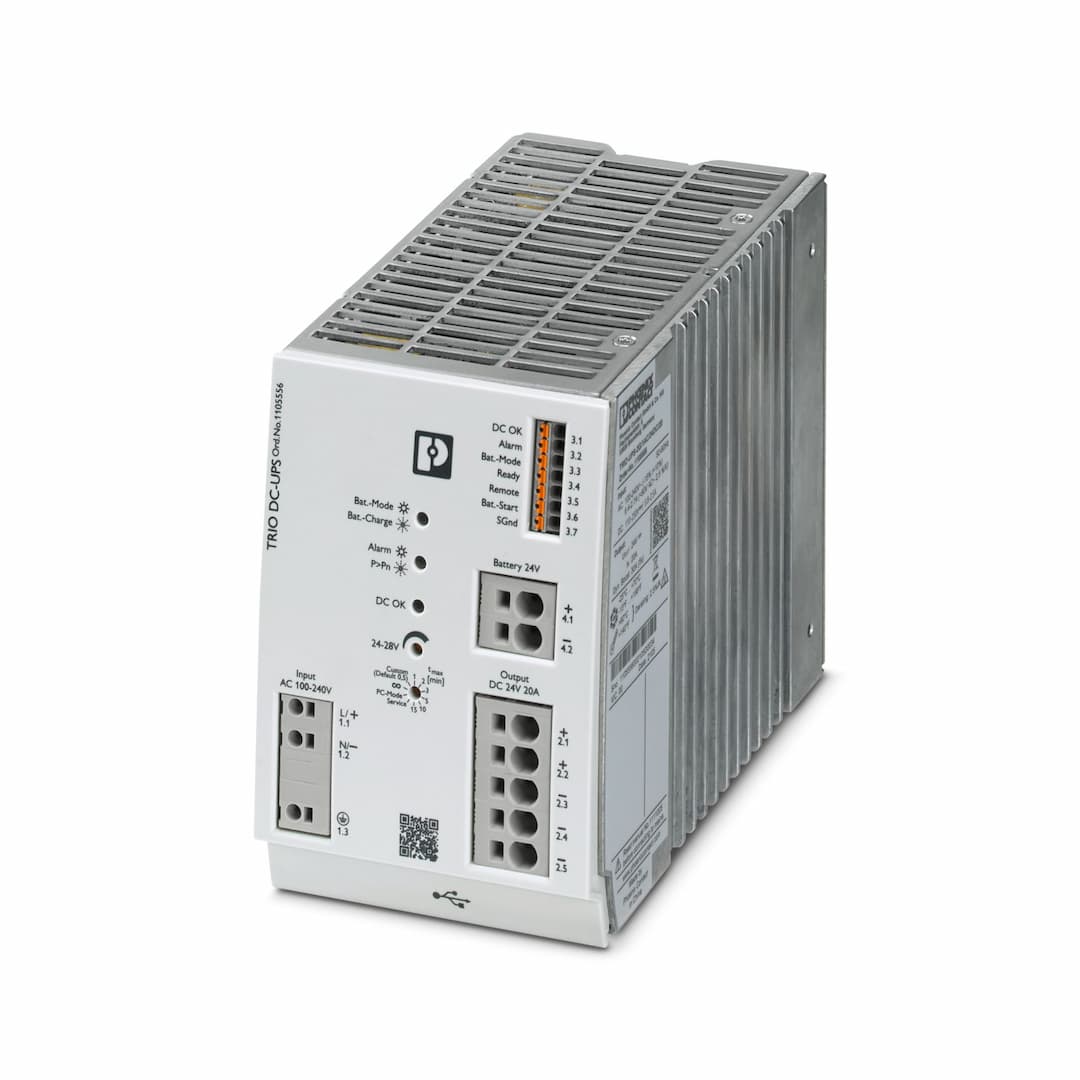

TRIO-UPS-2G/1AC/24DC/20
Selling Points
- 1Supports input voltage from 100 V AC to 250 V DC.
- 2Offers a Mean Time Between Failures (MTBF) of over 2007013 hours at 230 V AC.
- 3Designed for harsh industrial environments with a rugged build and high isolation voltages.
- 4Provides up to 3 hours of buffer period during power outages.
- 5Achieves efficiency of up to 91% at nominal load conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Input voltage range | 100 V AC ... 240 V AC -15 % ... +10 % | Voltage type of supply voltage | AC |
Inrush current | < 10 A | Inrush current integral (I | < 0.4 A |
Frequency range (f | 50 Hz ... 60 Hz (±10 %) | Mains buffering time | ≥ 20 ms (120 V AC) |
Switch-on time | typ. 200 ms | Typical current consumption | 6.4 A (100 V AC) |
Input fuse | 10 A (slow-blow, internal) | Connection labeling | 3.6 |
Signalization designation | Bat.-Start | Low signal | Connection to SGnd with < 2.7 kΩ |
High signal | Open (> 200 kΩ between Bat.-Start and SGnd) | Connection labeling | 3.5 |
Signalization designation | Remote | Low signal | Connection to SGnd with < 2.7 kΩ |
High signal | Open (> 35 kΩ between Remote and SGnd) | Efficiency | typ. 88 % (100 V AC)
typ. 92 % (240 V AC)
typ. (Battery operation) |
Derating | > 60 °C (2.5%/K of P | Crest factor | 1.57 (120 V AC)
1.58 (230 V AC) |
Switch-over time | < 3 ms | UPS connection in parallel | yes, with diode module uncoupled |
UPS connection in series | no | Energy storage device connection in parallel | yes |
Feedback voltage resistance | ≤ 35 V DC | Protection against overvoltage at the output (OVP) | < 30 V DC |
Residual ripple | < 20 mV | Control deviation | < 0.4 % (change in load, static 10 % ... 90 %)
< 2.9 % (Dynamic load change 10 % ... 90 %, 10 Hz)
< 0.1 % (change in input voltage ±10 %) |
Rise time | < 34 ms | Permissible backup fuse | B16 |
Output voltage | 24 V DC | Output voltage range | 24 V DC ... 28 V DC (> 24 V constant capacity) |
Output current I | 20 A | Dynamic Boost (I | 30 A |
Maximum no-load power dissipation | < 4 W (230 V AC) | Power loss nominal load max. | < 50 W (230 V AC) |
Output voltage | U | Output voltage range | 18 V DC ... 30 V DC |
Output current I | 20 A | Connection labeling | 3.2 |
Signalization designation | Alarm | Type of signaling | LED red |
Switching output | Transistor output, active | Output voltage | 24 V DC |
Continuous load current | 20 mA | LED status indicator | red |
Connection labeling | 3.3 | Signalization designation | Battery mode |
Type of signaling | Yellow LED | Switching output | Transistor output, active |
Output voltage | 24 V DC | Continuous load current | 20 mA |
LED status indicator | yellow | Connection labeling | 3.1 |
Signalization designation | DC OK | Type of signaling | Green LED |
Switching output | Transistor output, active | Output voltage | 24 V DC |
Continuous load current | 20 mA | LED status indicator | green |
Connection labeling | 3.4 | Signalization designation | Ready |
Switching output | Transistor output, active | Output voltage | 24 V DC |
Continuous load current | 20 mA | Nominal voltage U | 24 V DC |
End-of-charge voltage | max. 30 V DC | Charging current (Configurable) | 0.2 A ... 3 A (-25 °C ... 40 °C) |
Charging current (Reduced) | 3 A ... 0 A (40 °C ... 65 °C) | Charging current (Preset) | 2.1 A (-25 °C ... 40 °C) |
Charging current () | 3 A | Nominal capacity range | 4 Ah ... 40 Ah |
Battery technology | VRLA-AGM | Charge characteristic curve | IU |
Connection method | Push-in connection | rigid | 1 mm² ... 4 mm² |
flexible | 1 mm² ... 2.5 mm² | flexible with ferrule without plastic sleeve | 1 mm² ... 2.5 mm² |
flexible with ferrule with plastic sleeve | 1 mm² ... 1.5 mm² | rigid (AWG) | 16 ... 12 |
Stripping length | 10 mm | Connection method | Push-in connection |
rigid | 2.5 mm² ... 10 mm² | flexible | 2.5 mm² ... 6 mm² |
flexible with ferrule without plastic sleeve | 2.5 mm² ... 6 mm² | flexible with ferrule with plastic sleeve | 2.5 mm² ... 4 mm² |
rigid (AWG) | 12 ... 8 | Stripping length | 15 mm |
Connection method | Push-in connection | rigid | 0.2 mm² ... 1.5 mm² |
flexible | 0.2 mm² ... 1.5 mm² | flexible with ferrule without plastic sleeve | 0.2 mm² ... 1.5 mm² |
flexible with ferrule with plastic sleeve | 0.2 mm² ... 0.75 mm² | rigid (AWG) | 24 ... 16 |
Stripping length | 8 mm | Connection method | Push-in connection |
rigid | 2.5 mm² ... 10 mm² | flexible | 2.5 mm² ... 6 mm² |
flexible with ferrule without plastic sleeve | 2.5 mm² ... 6 mm² | flexible with ferrule with plastic sleeve | 2.5 mm² ... 4 mm² |
rigid (AWG) | 12 ... 8 | Stripping length | 15 mm |
Interface | USB (Modbus/RTU) | Number of interfaces | 1 |
Connection method | MINI-USB Type B | Locking | Screw |
Number of phases | 1.00 | Product type | DC UPS with integrated power supply |
Product family | TRIO UPS | MTBF (IEC 61709, SN 29500) | 958219 h (25 °C)
576370 h (40 °C)
265724 h (60 °C) |
Article revision | 02 | Protection class | I |
Degree of pollution | 2 | Width | 88 mm |
Height | 130 mm | Depth | 160 mm |
Width | 160 mm | Height | 130 mm |
Depth | 88 mm | Installation distance right/left | 0 mm / 0 mm |
Installation distance top/bottom | 50 mm / 50 mm | Mounting type | DIN rail mounting |
Assembly note | alignable: horizontally 0 mm, vertically 50 mm | Mounting position | horizontal DIN rail NS 35, EN 60715 |
Flammability rating according to UL 94 (housing / terminal blocks) | V0 | Hood version | PC |
Side element version | Aluminum | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Ambient temperature (start-up type tested) | -40 °C | Maximum altitude | ≤ 4000 m (> 2000 m, observe derating) |
Climatic class | 3K3 (in acc. with EN 60721) | Max. permissible relative humidity (operation) | ≤ 95 % (at +25 °C, non-condensing) |
Shock | 30g, 18 ms in accordance with IEC 60068-2-27 | Vibration (operation) | in accordance with IEC 60068-2-6 |
EN 61010-1 | II | Standard designation | Safety for equipment for measurement, control, and laboratory use |
Standards/specifications | IEC 61010-1 | Standard designation | Protective extra-low voltage |
Standards/specifications | IEC 61010 (SELV) / (PELV) | Standard designation | Safe isolation |
Standards/specifications | DIN VDE 0100-410 | Standard designation | Low-voltage power supplies, DC output |
Standards/specifications | EN 61204-3 | Identification | UL Listed UL 61010 |
Identification | UL/C-UL Listed ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 |
EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 | Noise immunity | Immunity in accordance with EN 61000-6-2 (industrial) |
Conducted noise emission | EN 61000-6-3 | Noise emission | EN 61000-6-3 |
Standards/regulations | EN 61000-3-2 | Standards/regulations | EN 61000-3-3 |
Standards/regulations | EN 61000-4-2 | Contact discharge | 6 kV (Test Level 3) |
Discharge in air | 8 kV (Test Level 3) | Standards/regulations | EN 61000-4-3 |
Frequency range | 80 MHz ... 6 GHz | Test field strength | 10 V/m |
Frequency range | 1.4 GHz ... 6 GHz | Test field strength | 3 V/m |
Standards/regulations | EN 61000-4-4 | Input | 4 kV |
Output | 2 kV | Signal | 2 kV |
Standards/regulations | EN 61000-4-5 | Input | 1 kV (Test Level 3 - symmetrical)
2 kV (Test Level 3 - asymmetrical) |
Output | 0.5 kV (Test Level 2 - symmetrical)
1 kV (Test Level 2 - asymmetrical) | Signal | 1 kV (Test Level 2 - asymmetrical) |
Standards/regulations | EN 61000-4-6 | Frequency range | 0.15 MHz ... 80 MHz |
Voltage | 10 V |
Specifications may be subject to change without notice
