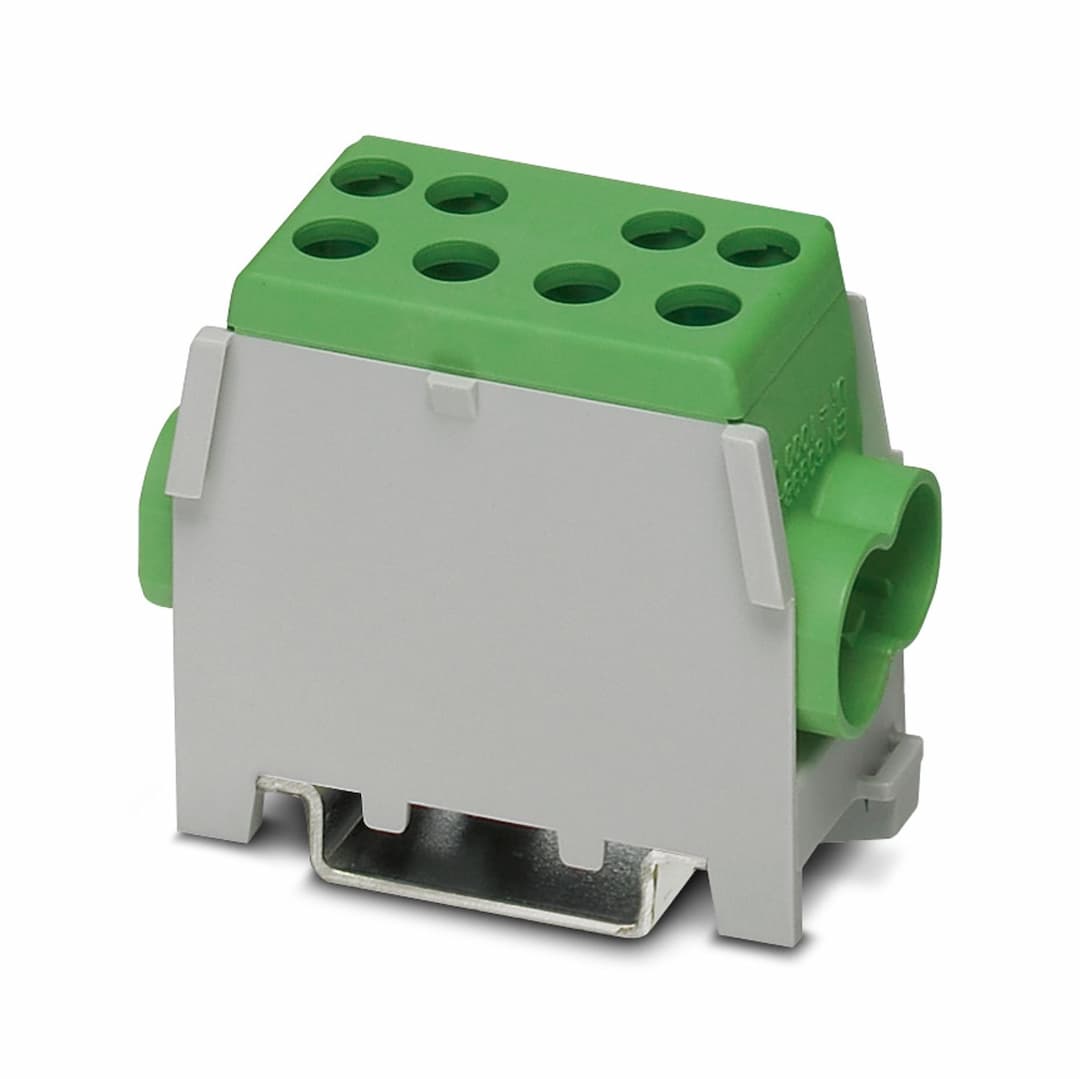

Selling Points
- 1High-quality electrical connection for industrial use.
- 2Nominal voltage: 400V, nominal current: 125A.
- 3Compact design with 4 screw connections.
- 4Suitable for up to 35mm² cross-section.
- 5Green color for easy identification in electrical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
General | Up to 3 terminal blocks alignable | Product type | Feed-through terminal block |
Number of positions | 1 | Number of connections | 4 |
Number of rows | 1 | Potentials | 1 |
Article revision | 00 | Overvoltage category | III |
Degree of pollution | 3 | Rated surge voltage | 8 kV |
Maximum power dissipation for nominal condition | 4.06 W | Number of connections per level | 4 |
Nominal cross section | 35 mm² | Screw thread | M6/M8 |
Tightening torque | ... 4 Nm | Stripping length | 25 mm |
Connection in acc. with standard | IEC 60998-1 | Conductor cross section rigid | 10 mm² ... 35 mm² |
Cross section AWG | 6 ... 2 (converted acc. to IEC) | Conductor cross section flexible | 10 mm² ... 25 mm² |
Conductor cross section, flexible [AWG] | 6 ... 4 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 10 mm² ... 25 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 10 mm² ... 16 mm² | Nominal current | 125 A |
Maximum load current | 125 A | Nominal voltage | 400 V (max. 1000 V) |
Note | Use ferrules for stranded conductors | Nominal cross section | 35 mm² |
Stripping length | 25 mm | Connection in acc. with standard | IEC 60998-1 |
Conductor cross section rigid | 1.5 mm² ... 25 mm² | Conductor cross-section flexible (ferrule without plastic sleeve) | 1.5 mm² ... 16 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 1.5 mm² ... 10 mm² | Width | 27 mm |
Height | 55 mm | Depth on NS 35/7,5 | 46 mm |
Depth on NS 35/15 | 53.5 mm | Color | green (RAL 6021) |
Flammability rating according to UL 94 | V0 | Insulating material group | I |
Insulating material | PA | Open side panel | No |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Connection in acc. with standard | IEC 60998-1
IEC 60998-1 | Mounting type | NS 35/7,5
NS 35/15 |
Specifications may be subject to change without notice
