Selling Points
- 1Single-Level Design: Connects two wires with a common junction point for easy component isolation.
- 2Screw Connection: Securely terminates wires with a reliable screw connection method.
- 3High Current Rating: Supports up to 125A, making it ideal for high-current applications.
- 4DIN VDE 0603-2/EN 60998-1 Compliant: Meets stringent safety standards for electrical connections.
- 5Grey Color Option: Available in grey color for easy identification in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation

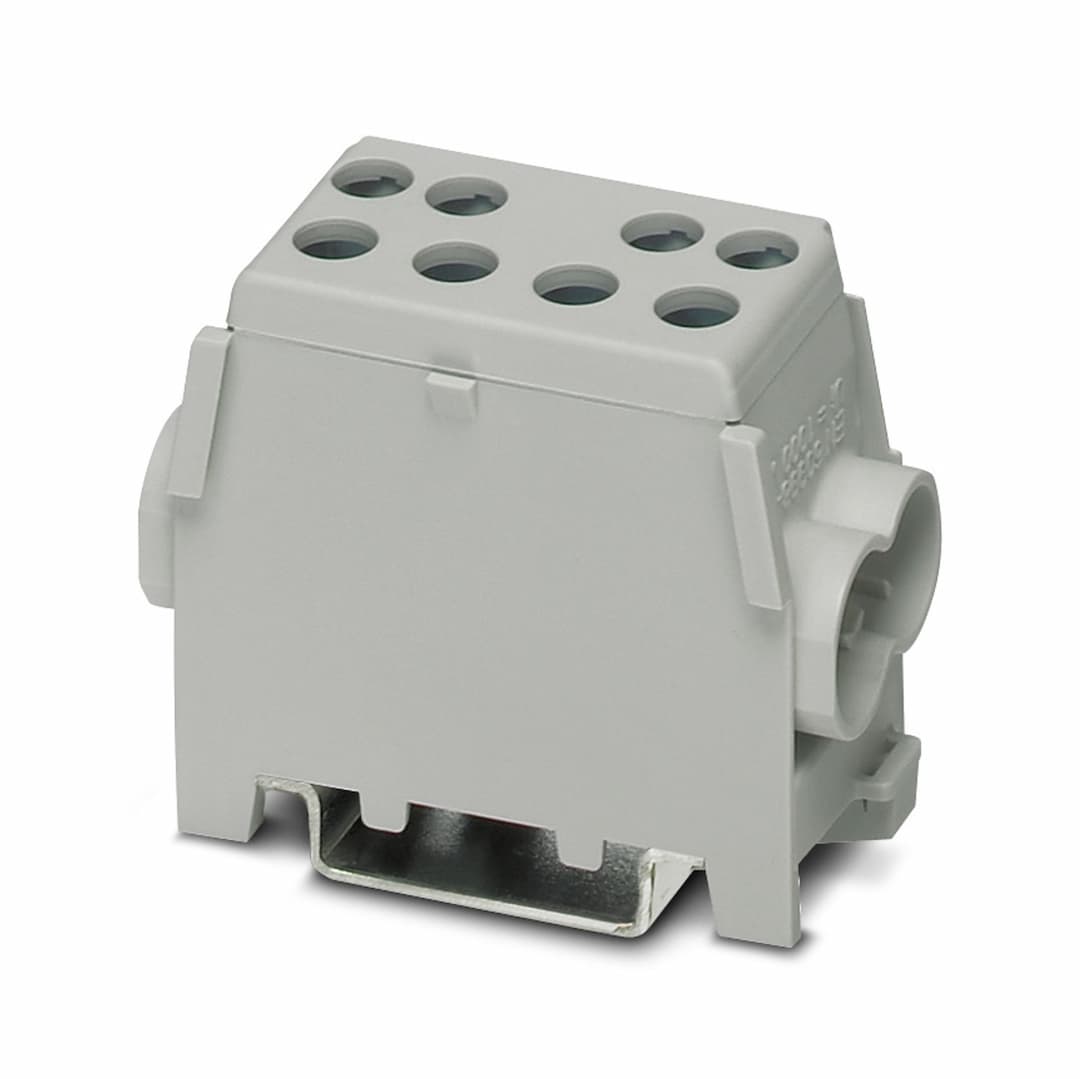

| Parameter | Value | Parameter | Value |
|---|---|---|---|
General | Up to 3 terminal blocks alignable | Product type | Feed-through terminal block |
Product family | UDB | Number of positions | 1 |
Number of connections | 4 | Number of rows | 1 |
Potentials | 1 | Article revision | 00 |
Overvoltage category | III | Degree of pollution | 3 |
Rated surge voltage | 8 kV | Maximum power dissipation for nominal condition | 4.06 W |
Number of connections per level | 4 | Nominal cross section | 35 mm² |
Screw thread | M6/M8 | Tightening torque | ... 4 Nm |
Stripping length | 25 mm | Connection in acc. with standard | IEC 60998-1 |
Conductor cross section rigid | 10 mm² ... 35 mm² | Cross section AWG | 6 ... 2 (converted acc. to IEC) |
Conductor cross section flexible | 10 mm² ... 25 mm² | Conductor cross section, flexible [AWG] | 6 ... 4 (converted acc. to IEC) |
Conductor cross-section flexible (ferrule without plastic sleeve) | 10 mm² ... 25 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 10 mm² ... 16 mm² |
Nominal current | 125 A | Maximum load current | 125 A |
Nominal voltage | 400 V (max. 1000 V) | Note | Use ferrules for stranded conductors |
Nominal cross section | 35 mm² | Stripping length | 25 mm |
Connection in acc. with standard | IEC 60998-1 | Conductor cross section rigid | 1.5 mm² ... 25 mm² |
Conductor cross-section flexible (ferrule without plastic sleeve) | 1.5 mm² ... 16 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 1.5 mm² ... 10 mm² |
Width | 27 mm | Height | 55 mm |
Depth on NS 35/7,5 | 46 mm | Depth on NS 35/15 | 53.5 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 |
Insulating material group | I | Insulating material | PA |
Open side panel | No | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 60998-1
IEC 60998-1 |
Mounting type | NS 35/7,5
NS 35/15 |
Specifications may be subject to change without notice
