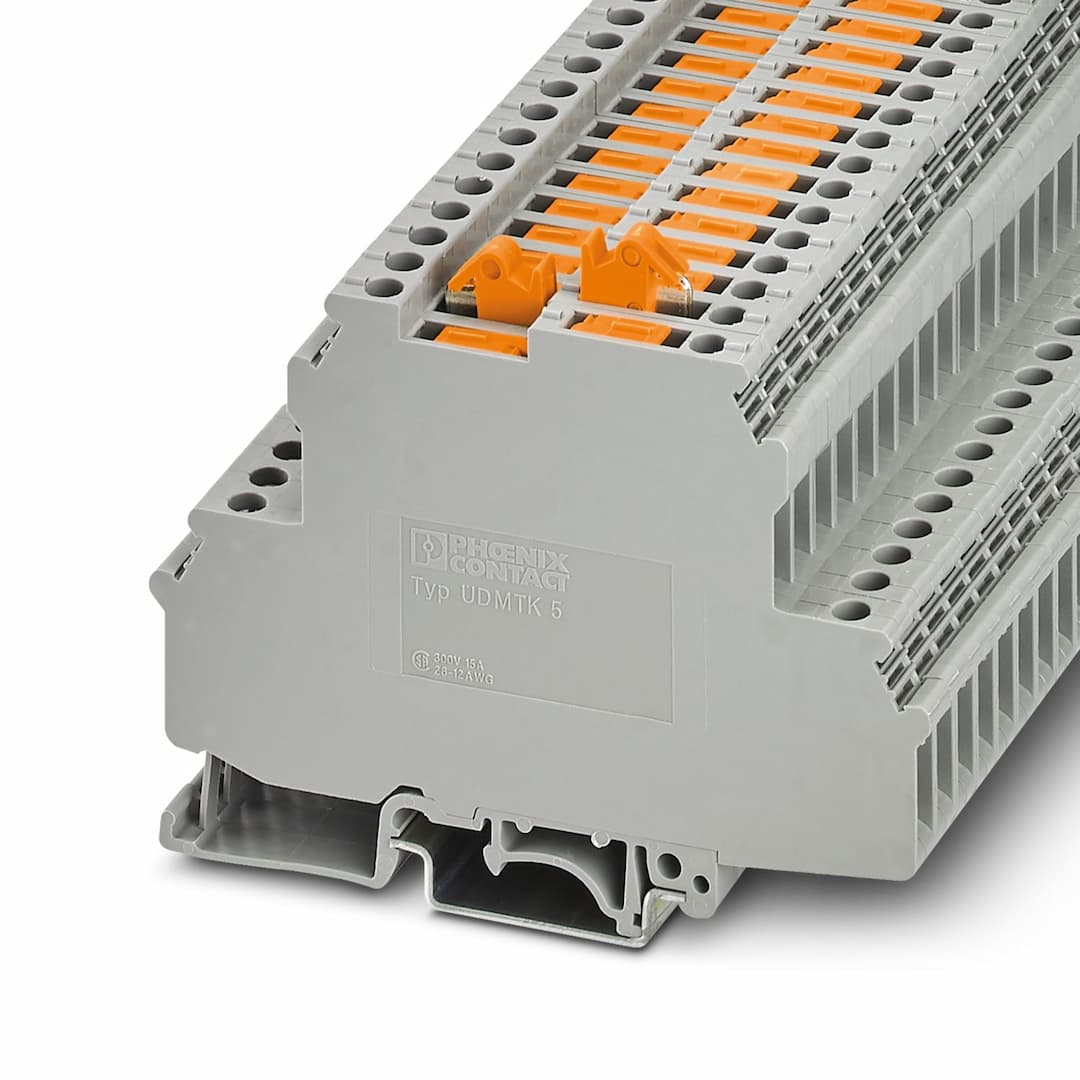

Product Model
UDMTK 5-PL
Selling Points
- 1High Performance: Designed for high-performance applications with a rated surge voltage of 4 kV.
- 2Durable Construction: Made from PA insulating material with a flammability rating of UL 94 V2.
- 3Versatile Connectivity: Supports screw connection with a cross section range of 0.2 mm² to 4 mm².
- 4Compact Design: Measures 93 mm in length and 6.2 mm in width, suitable for various mounting options.
- 5Reliable Operation: Operates within a wide ambient temperature range (-60 °C to 85 °C) and humidity levels (30% to 70%).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
General | with test socket screws for accommodating test plugs (1 test socket screw per level) | Product type | Disconnect terminal block |
Number of connections | 4 | Number of rows | 2 |
Potentials | 1 | Article revision | 08 |
Overvoltage category | III | Degree of pollution | 3 |
Rated surge voltage | 4 kV | Maximum power dissipation for nominal condition | 1.02 W |
Number of connections per level | 2 | Nominal cross section | 4 mm² |
Screw thread | M3 | Tightening torque | 0.6 ... 0.8 Nm |
Stripping length | 8 mm | Internal cylindrical gage | A4 |
Connection in acc. with standard | IEC 60947-7-1 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Cross section AWG | 24 ... 12 (converted acc. to IEC) | Conductor cross section flexible | 0.2 mm² ... 4 mm² |
Conductor cross section, flexible [AWG] | 24 ... 12 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 4 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 2.5 mm² | 2 conductors with same cross section, solid | 0.2 mm² ... 1.5 mm² |
2 conductors with same cross section, flexible | 0.2 mm² ... 1.5 mm² | 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² |
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 2.5 mm² | Nominal current | 10 A |
Maximum load current | 10 A (with 4 mm² conductor cross section) | Nominal voltage | 400 V |
Nominal cross section | 4 mm² | Screw thread | M3 |
Connection in acc. with standard | IEC 60947-7-1 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Cross section AWG | 24 ... 12 (converted acc. to IEC) | Conductor cross section flexible | 0.2 mm² ... 4 mm² |
Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 4 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 2.5 mm² |
2 conductors with same cross section, solid | 0.2 mm² ... 1.5 mm² | 2 conductors with same cross section, flexible | 0.2 mm² ... 1.5 mm² |
2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² | 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 2.5 mm² |
Nominal current | 8 A (with 4 mm² conductor cross section) | Maximum load current | 10 A (in case of a 4 mm² conductor cross section, the maximum load current must not be exceeded by the total current of all connected conductors.) |
Nominal voltage | 400 V | Nominal cross section | 4 mm² |
Width | 6.2 mm | Height | 93 mm |
Depth on NS 32 | 73.5 mm | Depth on NS 35/7,5 | 68.5 mm |
Depth on NS 35/15 | 76 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V2 | Insulating material group | I |
Insulating material | PA | Open side panel | No |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Connection in acc. with standard | IEC 60947-7-1
IEC 60947-7-1 | Mounting type | NS 35/7,5
NS 35/15
NS 32 |
Specifications may be subject to change without notice
