Product Model

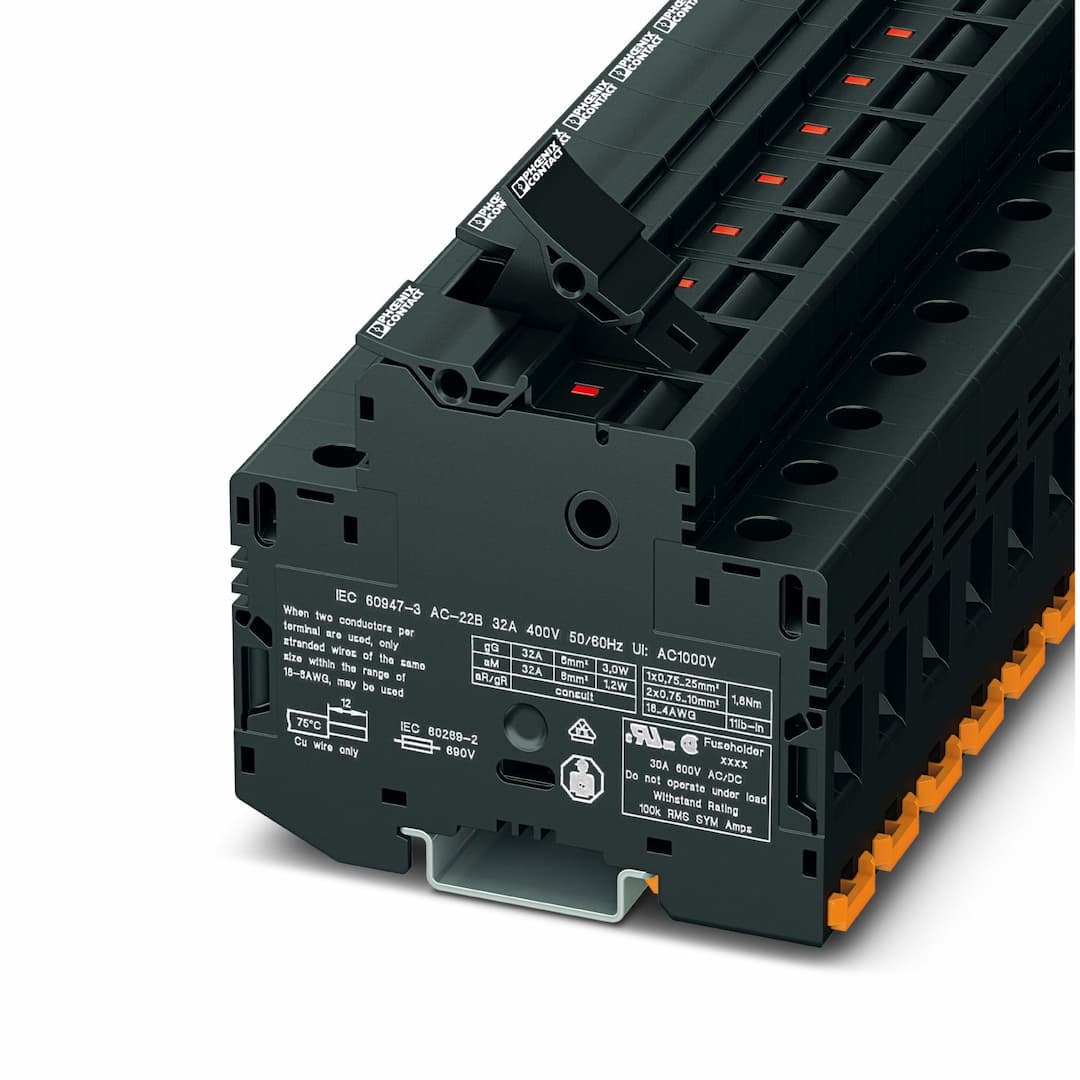

UK 10,3-CC HESILED A 600V
Selling Points
- 1Designed for 600V applications, ensuring reliable performance in demanding electrical environments.
- 2Easy to install and configure with 2 connections per level, enhancing flexibility and efficiency.
- 3Built with a nominal cross section of 16 mm² and rated cross section AWG of 6, providing robust electrical connections.
- 4Suitable for various electrical projects requiring a secure and reliable terminal block solution.
- 5Features M4 screw thread for straightforward mounting, reducing installation time and effort.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Fuse terminal block | Number of connections | 2 |
Number of rows | 1 | Article revision | 00 |
Overvoltage category | III | Degree of pollution | 3 |
Fuse type | Glass / ceramics / ... | Rated surge voltage | 6 kV |
Fuse | Class CC | Number of connections per level | 2 |
Nominal cross section | 16 mm² | Rated cross section AWG | 6 |
Screw thread | M4 | Tightening torque | 1.5 ... 1.8 Nm |
Stripping length | 12 mm ... 14 mm | Internal cylindrical gage | A7 |
Conductor cross section rigid | 0.75 mm² ... 25 mm² | Cross section AWG | 16 ... 3 (converted acc. to IEC) |
Conductor cross section flexible | 0.75 mm² ... 25 mm² | Conductor cross section, flexible [AWG] | 18 ... 3 (converted acc. to IEC) |
Conductor cross-section flexible (ferrule without plastic sleeve) | 0.75 mm² ... 16 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.75 mm² ... 16 mm² |
Cross-section with insertion bridge, rigid | 10 mm² | Cross-section with insertion bridge, flexible | 10 mm² |
2 conductors with same cross section, solid | 0.75 mm² ... 10 mm² | 2 conductors with same cross section, flexible | 0.75 mm² ... 10 mm² |
2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.75 mm² ... 6 mm² | Nominal current | 30 A (the current and voltage are determined by the fuse) |
Maximum load current | 30 A (the current and voltage are determined by the fuse) | Nominal voltage | 600 V (the current and voltage are determined by the fuse) |
Nominal cross section | 16 mm² | Width | 17.8 mm |
Height | 66.8 mm | Color | black |
Flammability rating according to UL 94 | V0 | Insulating material group | I |
Insulating material | PA | Open side panel | No |
Mounting type | NS 35/7,5
NS 35/15 |
Specifications may be subject to change without notice
