Product Model

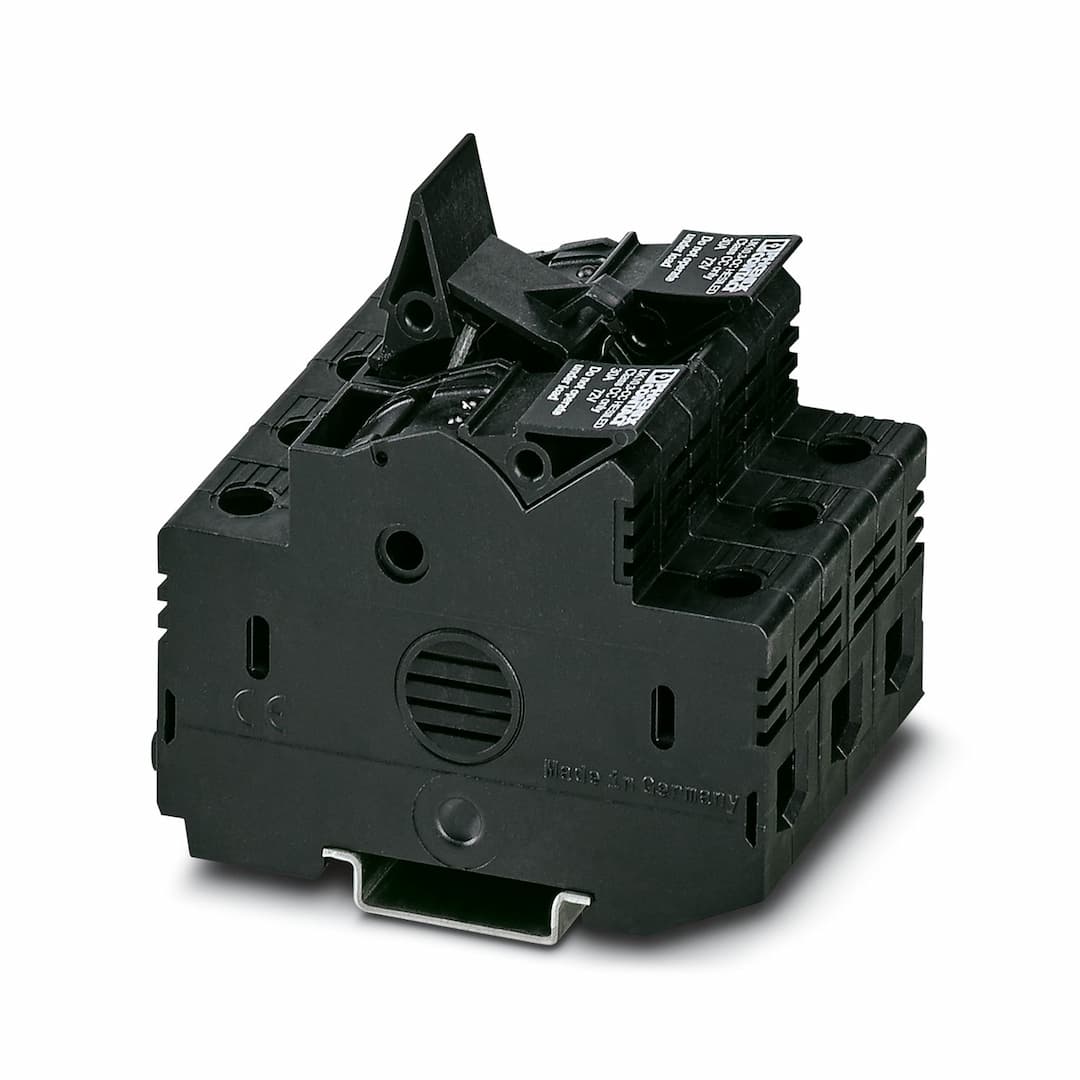

UK 10,3-CC HESILED N 72 3POL
Selling Points
- 1Designed for 690 Volt applications.
- 2Fused black terminal block for added safety.
- 3Easy installation and modular connectivity.
- 4Built to withstand demanding electrical environments.
- 5Three connections for flexible wiring configurations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Fuse terminal block | Number of connections | 3 |
Number of rows | 1 | Overvoltage category | III |
Degree of pollution | 3 | Fuse type | Glass |
Rated surge voltage | 6 kV | Maximum power dissipation for nominal condition | 3.26 W |
Fuse | Class CC | Nominal cross section | 25 mm² |
Screw thread | M5 | Tightening torque | 2.5 ... 3 Nm |
Stripping length | 12 mm | Internal cylindrical gage | B6 |
Conductor cross section rigid | 1.5 mm² ... 25 mm² | Cross section AWG | 16 ... 4 (converted acc. to IEC) |
Conductor cross section flexible | 1.5 mm² ... 25 mm² | Conductor cross section, flexible [AWG] | 16 ... 3 (converted acc. to IEC) |
Conductor cross-section flexible (ferrule without plastic sleeve) | 1.5 mm² ... 16 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 1.5 mm² ... 16 mm² |
Cross-section with insertion bridge, rigid | 10 mm² | Cross-section with insertion bridge, flexible | 10 mm² |
2 conductors with same cross section, solid | 1.5 mm² ... 4 mm² | 2 conductors with same cross section, flexible | 1.5 mm² ... 4 mm² |
2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 1.5 mm² ... 4 mm² | 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 1.5 mm² ... 10 mm² |
Nominal current | 32 A (the current and voltage are determined by the fuse) | Maximum load current | 32 A (the current and voltage are determined by the fuse) |
Nominal voltage | 72 V (the current and voltage are determined by the fuse) | Nominal cross section | 25 mm² |
Width | 54 mm | Color | black |
Flammability rating according to UL 94 | V0 | Insulating material group | IIIb |
Insulating material | PA | Mounting type | NS 35/7,5
NS 35/15 |
