Product Model

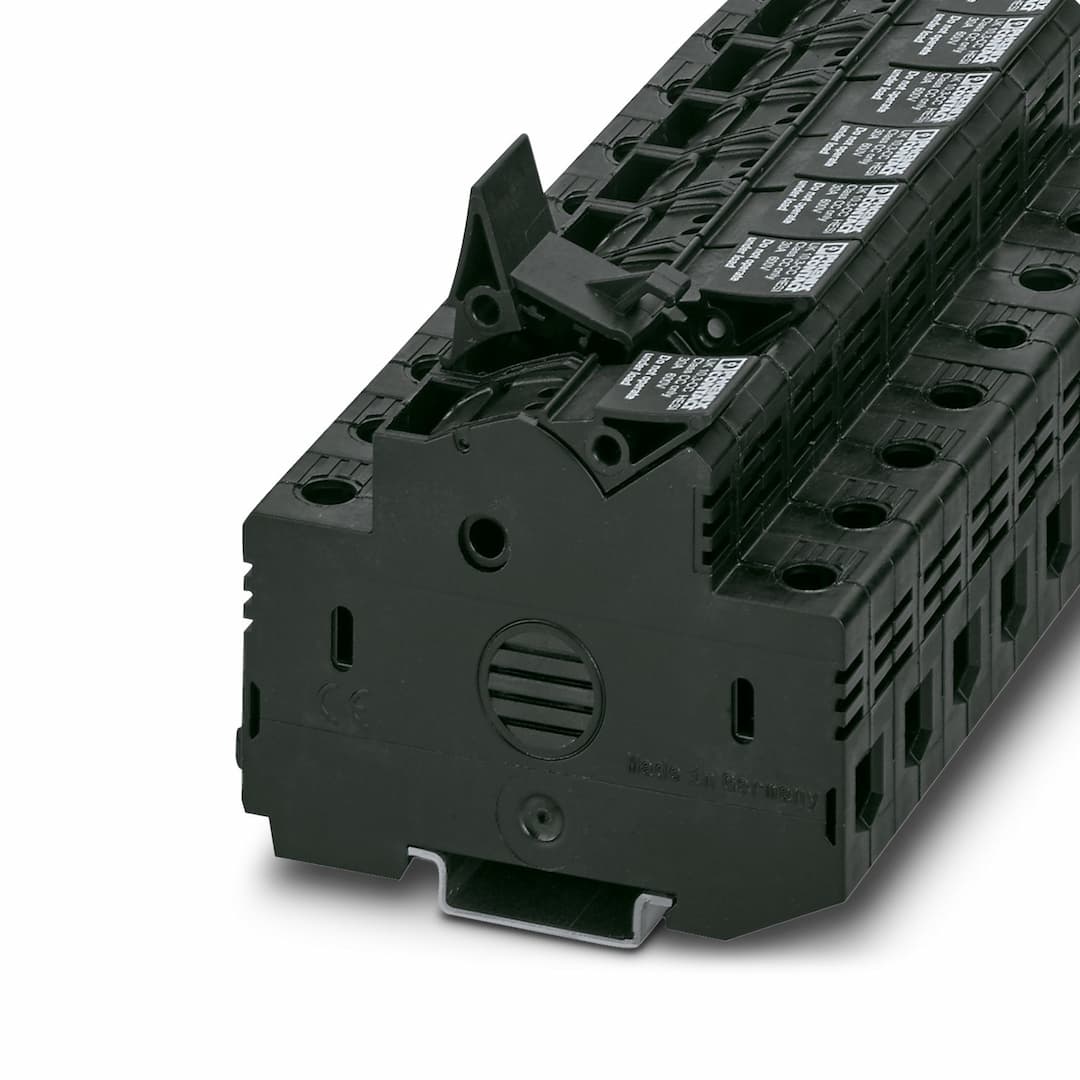

UK 10,3-CC HESI N 2POL
Selling Points
- 1Glass Fuse Type: Ensures high reliability and safety in electrical circuits.
- 2Screw Connection: Easy and secure connection for efficient installation.
- 3600V, 32A Max Rating: Suitable for a wide range of applications with high voltage and current requirements.
- 4Not Grounded, Fused Black: Provides clear visual indication of fuse status for easy monitoring.
- 5Compact Design: Space-saving design ideal for various industrial and commercial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
CE note | The products are offered exclusively for export outside the EU and the European Economic Area. | Product type | Fuse terminal block |
Number of connections | 2 | Number of rows | 1 |
Article revision | 03 | Overvoltage category | III |
Degree of pollution | 3 | Fuse type | Glass / ceramics / ... |
Rated surge voltage | 6 kV | Maximum power dissipation for nominal condition | 4 W |
Fuse | Class CC | Number of connections per level | 2 |
Nominal cross section | 25 mm² | Screw thread | M5 |
Tightening torque | 2 ... 2.5 Nm | Stripping length | 11 mm |
Internal cylindrical gage | B6 | Conductor cross section rigid | 1.5 mm² ... 25 mm² |
Cross section AWG | 14 ... 4 (converted acc. to IEC) | Conductor cross section flexible | 1.5 mm² ... 25 mm² |
Conductor cross section, flexible [AWG] | 14 ... 4 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 1.5 mm² ... 16 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 1.5 mm² ... 16 mm² | Cross-section with insertion bridge, rigid | 10 mm² |
Cross-section with insertion bridge, flexible | 10 mm² | 2 conductors with same cross section, solid | 1.5 mm² ... 4 mm² |
2 conductors with same cross section, flexible | 1.5 mm² ... 4 mm² | 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 1.5 mm² ... 4 mm² |
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 1.5 mm² ... 10 mm² | Nominal current | 30 A (the current and voltage are determined by the fuse) |
Maximum load current | 32 A (the current and voltage are determined by the fuse) | Nominal voltage | 600 V (the current and voltage are determined by the fuse) |
Nominal cross section | 25 mm² | Width | 36 mm |
Height | 81 mm | Depth on NS 35/7,5 | 65.5 mm |
Depth on NS 35/15 | 73 mm | Color | black (RAL 9005) |
Flammability rating according to UL 94 | V2 | Insulating material group | IIIb |
Relative insulation material temperature index (Elec., UL 746 B) | 125 °C | Open side panel | No |
Ambient temperature (operation) | -60 °C ... 85 °C (max. short-term operating temperature RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 55 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting type | NS 35/7,5
NS 35/15 |
Specifications may be subject to change without notice
