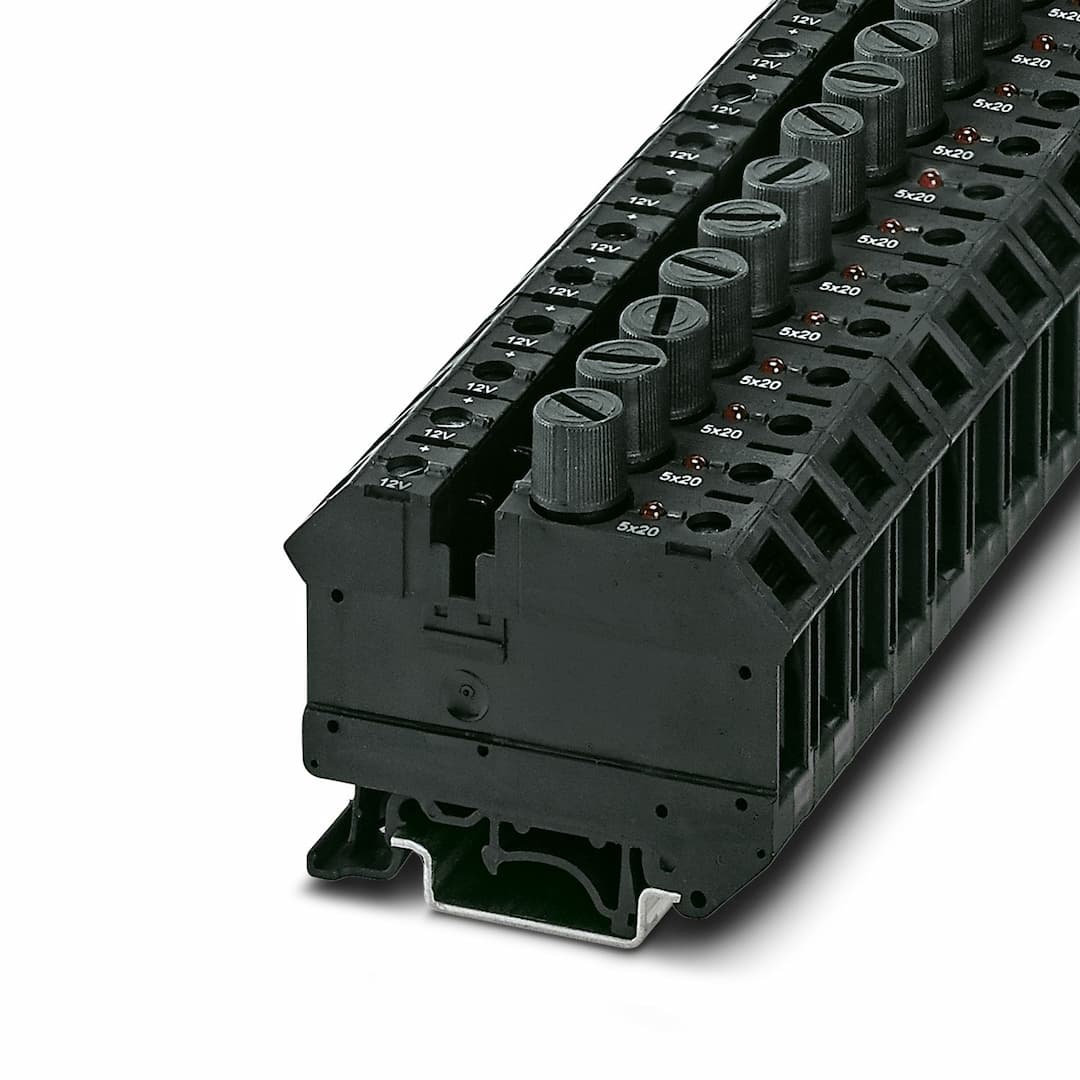

Product Model
UK 10-DREHSILED 12 (5X20)
Selling Points
- 1High-quality fuse terminal block designed for cartridge fuse insert.
- 2Compliant with DIN EN 50155 for service life test category 1, class B.
- 3Versatile conductor compatibility with 5-16 mm² and 24-6 AWG.
- 4Compact dimensions at 62 mm height and 12 mm width.
- 5Screw connection with M4 thread and 1.5-1.8 Nm tightening torque.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Fuse terminal block | Number of connections | 2 |
Number of rows | 1 | Potentials | 1 |
Article revision | 11 | Overvoltage category | III |
Degree of pollution | 3 | Fuse type | Glass / ceramics / ... |
Rated surge voltage | 4 kV | Maximum power dissipation for nominal condition | 2.43 W |
Fuse | G / 5 x 20 | LED voltage range | 5 V AC/DC ... 15 V AC/DC |
LED current range | 0.5 mA ... 2.5 mA | LED voltage range | 5 V AC/DC ... 15 V AC/DC |
Number of connections per level | 2 | Nominal cross section | 16 mm² |
Screw thread | M4 | Tightening torque | 1.5 ... 1.8 Nm |
Stripping length | 11 mm | Internal cylindrical gage | B6 |
Connection in acc. with standard | IEC 60947-7-3 | Conductor cross section rigid | 0.5 mm² ... 16 mm² |
Cross section AWG | 20 ... 6 (converted acc. to IEC) | Conductor cross section flexible | 0.5 mm² ... 16 mm² |
Conductor cross section, flexible [AWG] | 20 ... 6 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.5 mm² ... 10 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 0.5 mm² ... 10 mm² | Cross-section with insertion bridge, rigid | 10 mm² |
Cross-section with insertion bridge, flexible | 10 mm² | 2 conductors with same cross section, solid | 0.5 mm² ... 4 mm² |
2 conductors with same cross section, flexible | 0.5 mm² ... 4 mm² | 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.5 mm² ... 4 mm² |
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 10 mm² | Nominal current | 10 A |
Maximum load current | 10 A | Nominal voltage | 500 V
800 V (As a disconnect terminal block) |
Nominal cross section | 1.5 mm² | Width | 12 mm |
Height | 62 mm | Depth on NS 32 | 62.2 mm |
Depth on NS 35/7,5 | 57.2 mm | Depth on NS 35/15 | 64.7 mm |
Color | black (RAL 9005) | Flammability rating according to UL 94 | V2 |
Insulating material group | I | Insulating material | PA |
Static insulating material application in cold | -60 °C | Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
Relative insulation material temperature index (Elec., UL 746 B) | 130 °C | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 | Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg |
Surface flammability NFPA 130 (ASTM E 162) | passed | Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
Smoke gas toxicity NFPA 130 (SMP 800C) | passed | Open side panel | No |
Specification | DIN EN 50155 (VDE 0115-200):2008-03 | Spectrum | Service life test category 1, class B, body mounted |
Frequency | f | ASD level | 1.857 (m/s²)²/Hz |
Acceleration | 0.8g | Test duration per axis | 5 h |
Test directions | X-, Y- and Z-axis | Result | Test passed |
Specification | DIN EN 50155 (VDE 0115-200):2008-03 | Pulse shape | Half-sine |
Acceleration | 5g | Shock duration | 30 ms |
Number of shocks per direction | 3 | Test directions | X-, Y- and Z-axis (pos. and neg.) |
Result | Test passed | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 60947-7-3 |
Mounting type | NS 35/7,5
NS 35/15
NS 32 |
Specifications may be subject to change without notice
