Product Model

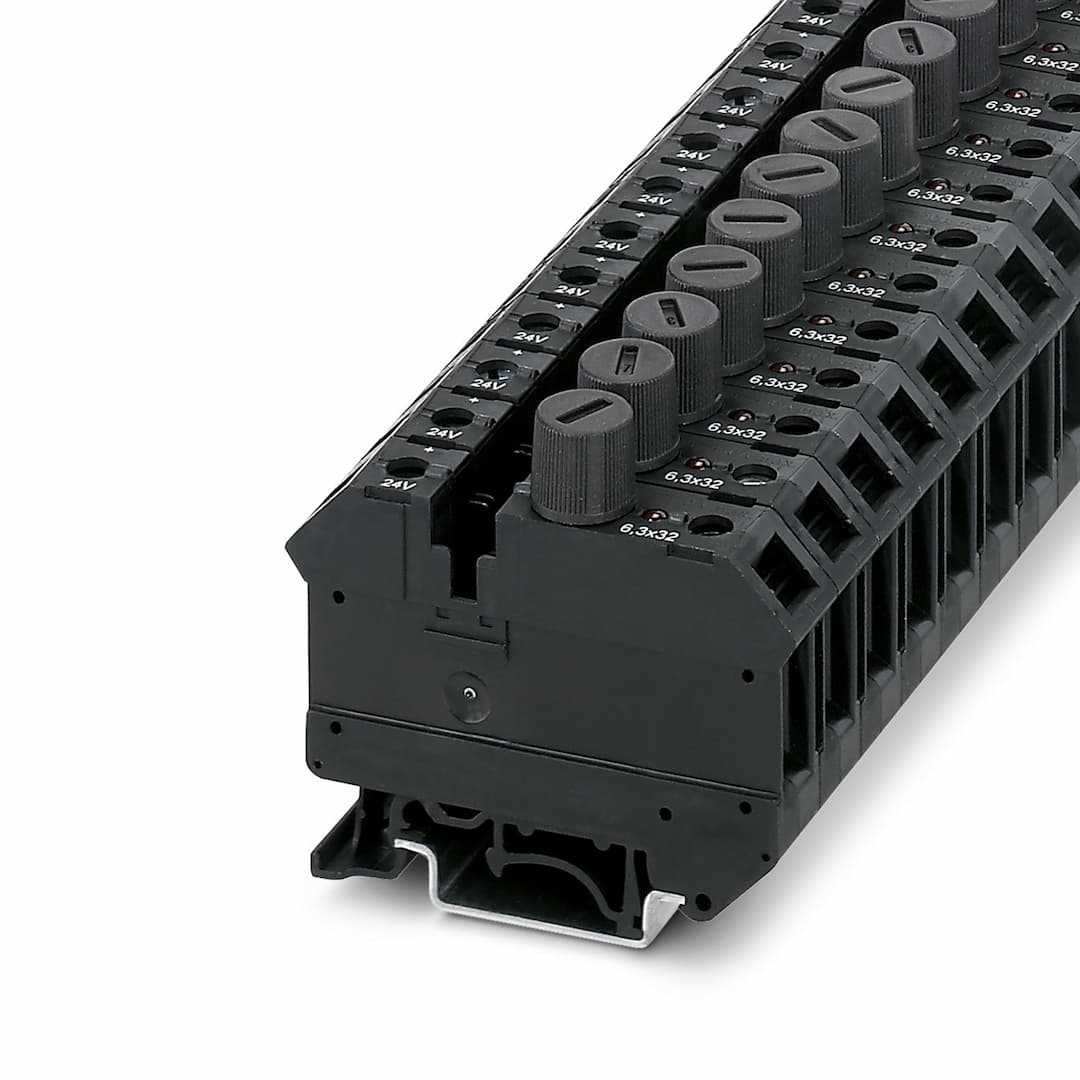

UK 10-DREHSILED 24 (6,3X32)
Selling Points
- 1High-Quality Construction: Built with durable materials for long-lasting performance.
- 2Easy Installation: Simple screw connection for quick setup.
- 3Compact Design: 12 mm depth fits perfectly in tight spaces.
- 4Versatile Use: Suitable for various applications requiring a fuse terminal block.
- 5Reliable Protection: Fused design ensures safe electrical connections up to 800V and 10A.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Fuse terminal block | Number of connections | 2 |
Number of rows | 1 | Potentials | 1 |
Article revision | 10 | Overvoltage category | III |
Degree of pollution | 3 | Fuse type | Glass / ceramics / ... |
Rated surge voltage | 4 kV | Maximum power dissipation for nominal condition | 1.82 W |
Fuse | G / 6,3 x 32 | LED voltage range | 15 V AC/DC ... 30 V AC/DC |
LED current range | 1 mA ... 2.5 mA | Maximum power dissipation | max. 2.5 W (with single arrangement of the fuse terminal block in the event of overload)
max. 2.5 W (With interconnected arrangement of several fuse terminal blocks in the event of overload)
max. 4 W (with single arrangement of the fuse terminal block in the event of a short-circuit)
max. 2.5 W (With interconnected arrangement of several fuse terminal blocks in the event of a short-circuit) |
LED voltage range | 15 V AC/DC ... 30 V AC/DC | Number of connections per level | 2 |
Nominal cross section | 10 mm² | Rated cross section AWG | 6 |
Screw thread | M4 | Tightening torque | 1.5 ... 1.8 Nm |
Stripping length | 11 mm | Internal cylindrical gage | B6 |
Connection in acc. with standard | IEC 60947-7-3 | Conductor cross section rigid | 0.5 mm² ... 16 mm² |
Cross section AWG | 20 ... 6 (converted acc. to IEC) | Conductor cross section flexible | 0.5 mm² ... 16 mm² |
Conductor cross section, flexible [AWG] | 20 ... 6 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.5 mm² ... 10 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 0.5 mm² ... 10 mm² | Cross-section with insertion bridge, rigid | 10 mm² |
Cross-section with insertion bridge, flexible | 10 mm² | 2 conductors with same cross section, solid | 0.5 mm² ... 4 mm² |
2 conductors with same cross section, flexible | 0.5 mm² ... 4 mm² | 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.5 mm² ... 4 mm² |
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 10 mm² | Nominal current | 10 A |
Maximum load current | 10 A | Nominal voltage | 400 V
800 V (As a disconnect terminal block) |
Width | 12 mm | Height | 62 mm |
Depth on NS 32 | 62.2 mm | Depth on NS 35/7,5 | 57.2 mm |
Depth on NS 35/15 | 64.7 mm | Color | black (RAL 9005) |
Flammability rating according to UL 94 | V2 | Insulating material group | I |
Insulating material | PA | Static insulating material application in cold | -60 °C |
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C | Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg | Surface flammability NFPA 130 (ASTM E 162) | passed |
Specific optical density of smoke NFPA 130 (ASTM E 662) | passed | Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Open side panel | No | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 60947-7-3 |
Mounting type | NS 35/7,5
NS 35/15
NS 32 |
Specifications may be subject to change without notice
