Selling Points
- 1High-Quality Construction: Built with PA insulating material and a flammability rating of UL 94 V0.
- 2Versatile Connectivity: Screw connection method with a cross section range of 0.2 mm² to 4 mm².
- 3Industrial Compliance: Meets overvoltage category III and insulating material group I standards.
- 4Enhanced Safety Features: Back of the hand and finger protection guaranteed, with a rated surge voltage of 8 kV.
- 5Durable Design: Tested for mechanical stability and withstands power-frequency and surge voltage tests.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

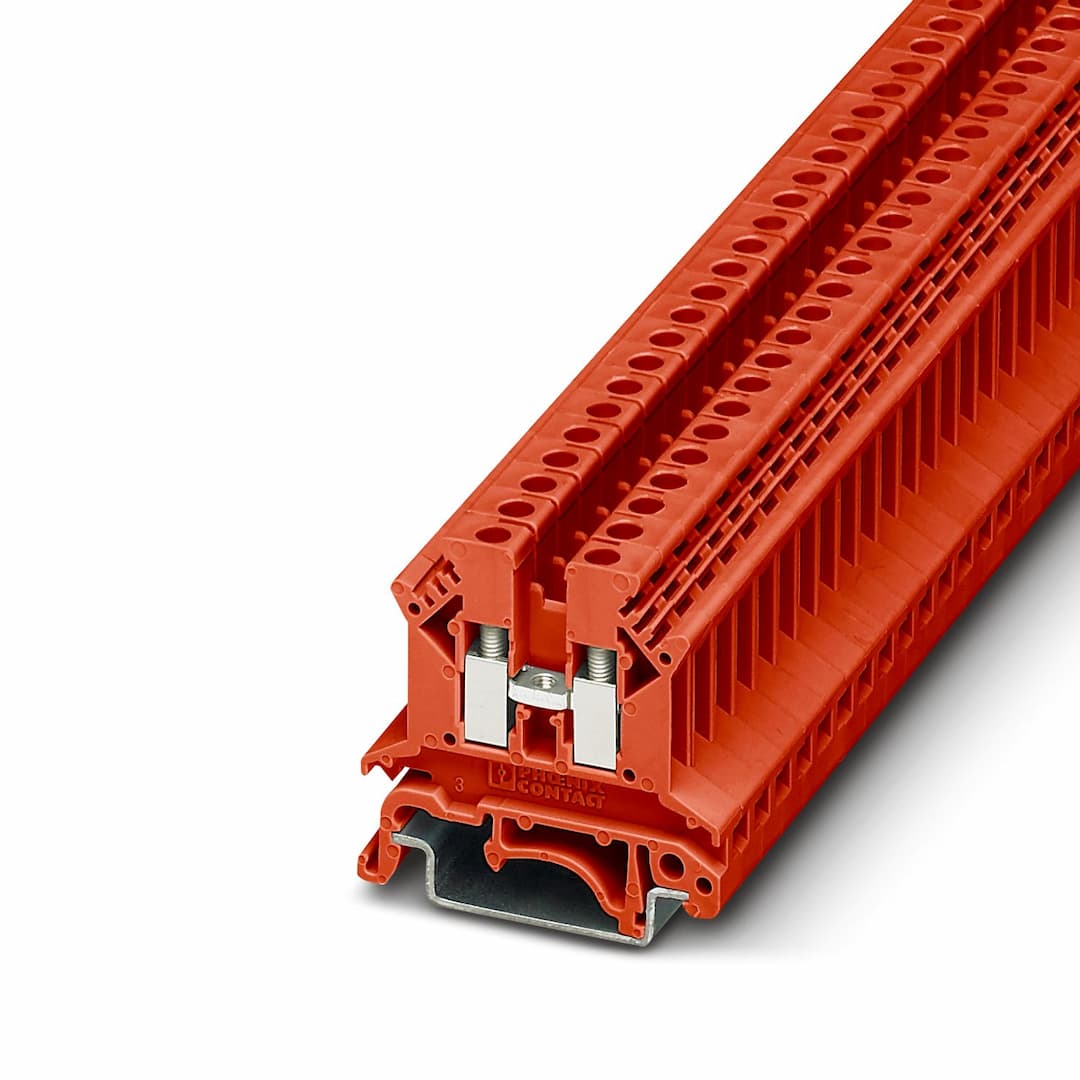

Product type | Feed-through terminal block | Number of positions | 1 |
Number of connections | 2 | Number of rows | 1 |
Overvoltage category | III | Degree of pollution | 3 |
Rated surge voltage | 8 kV | Screw thread | M3 |
Tightening torque | 0.6 ... 0.8 Nm | Stripping length | 7 mm |
Internal cylindrical gage | A3 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Cross section AWG | 24 ... 12 (converted acc. to IEC) | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 2.5 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 1 mm² |
2 conductors with same cross section, solid | 0.2 mm² ... 1 mm² | 2 conductors with same cross section, flexible | 0.25 mm² ... 1 mm² |
2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1 mm² | 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1.5 mm² |
Nominal current | 24 A | Nominal voltage | 800 V |
Connection in acc. with standard | UL | Cross section AWG | 30 ... 12 (converted acc. to IEC) |
Nominal current | 20 A | Nominal voltage | 300 V |
Connection in acc. with standard | CSA | Cross section AWG | 22 ... 12 (converted acc. to IEC) |
Nominal current | 25 A | Nominal voltage | 300 V |
Width | 6.2 mm | End cover width | 1.5 mm |
Color | red | Flammability rating according to UL 94 | V0 |
Insulating material group | I | Insulating material | PA |
Open side panel | Yes | Ambient temperature (storage/transport) | -25 °C ... 55 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Connection in acc. with standard | UL
CSA | Mounting type | NS 35/7,5
NS 35/15
NS 32 |
Specifications may be subject to change without notice
