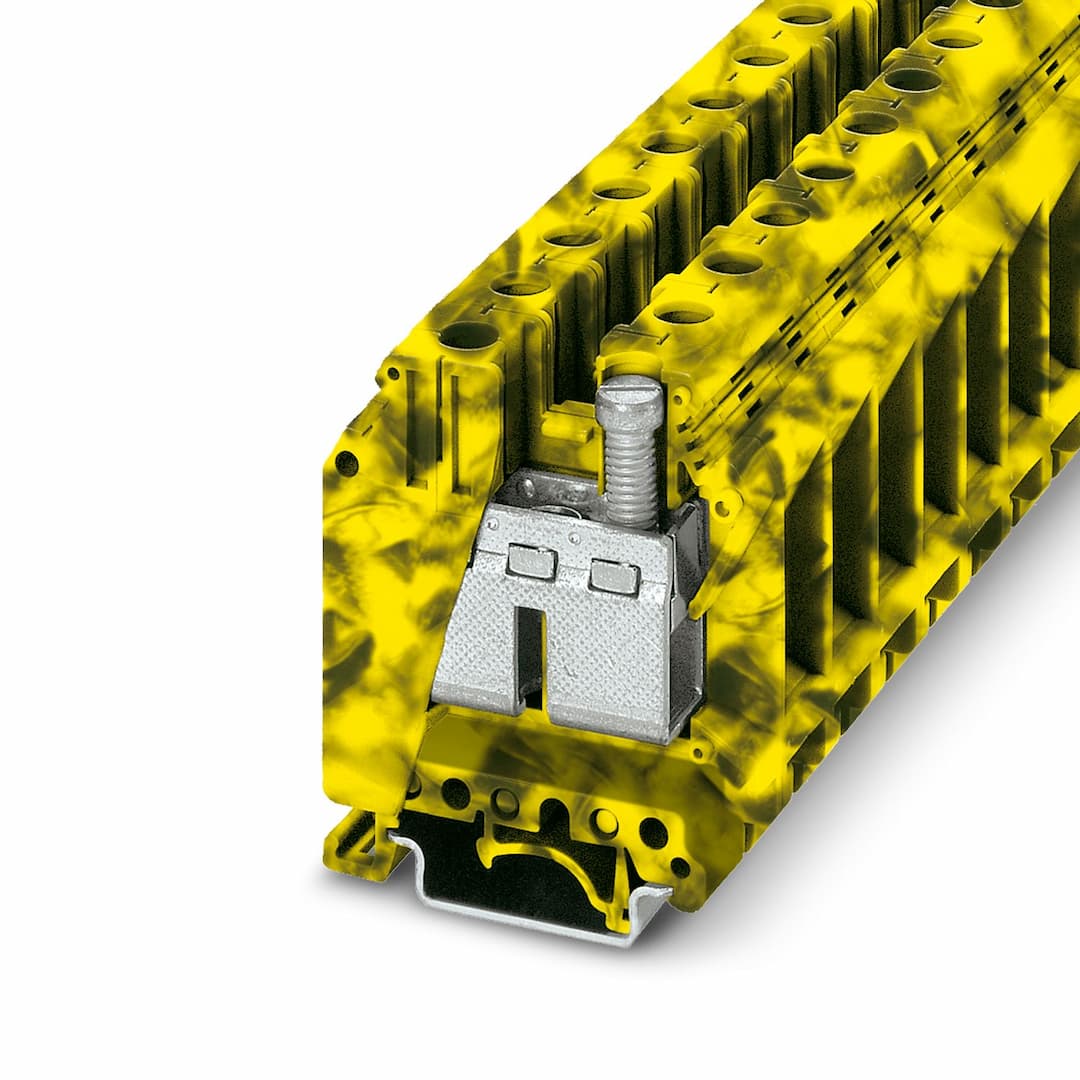

Selling Points
- 1800V for reliable operation in demanding environments.
- 2125A to handle heavy electrical loads efficiently.
- 3Easy and secure connection with screw termination.
- 4Single-level design with a height of 15.1 mm for space-saving installations.
- 5Black and yellow color-coded for easy identification and non-fused, non-grounded for added safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Feed-through terminal block | Number of connections | 2 |
Number of rows | 1 | Potentials | 1 |
Article revision | 05 | Overvoltage category | III |
Degree of pollution | 3 | Rated surge voltage | 8 kV |
Maximum power dissipation for nominal condition | 4.06 W | Number of connections per level | 2 |
Nominal cross section | 35 mm² | Screw thread | M6 |
Tightening torque | 3.2 ... 3.7 Nm | Stripping length | 16 mm |
Connection in acc. with standard | IEC 60947-7-1 | Conductor cross section rigid | 10 mm² ... 35 mm² |
Cross section AWG | 6 ... 2 (converted acc. to IEC) | Conductor cross section flexible | 10 mm² ... 35 mm² |
Conductor cross section, flexible [AWG] | 6 ... 2 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 10 mm² ... 35 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 10 mm² ... 35 mm² | 2 conductors with same cross section, solid | 6 mm² ... 16 mm² |
2 conductors with same cross section, flexible | 6 mm² ... 10 mm² | 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 6 mm² ... 10 mm² |
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 6 mm² ... 10 mm² | Nominal current | 125 A |
Maximum load current | 125 A | Nominal voltage | 800 V |
Nominal cross section | 35 mm² | Identification | II 2 GD Ex eb IIC Gb |
Operating temperature range | -60 °C ... 110 °C | Ex-certified accessories | 3008096 TP-UK 35
1205079 SZS 1,0X6,5 VDE
1201442 E/UK |
List of bridges | Fixed bridge / FBI 2-15 / 0201333
Fixed bridge / FBI 3-15 / 0201278 | Bridge data | 118.5 A / 35 mm² |
List of bridges | Insertion bridge / EB 2-15 K/UK 35 / 0205119
Insertion bridge / EB 10-15 / 0205135 | Bridge data | 105.5 A / 35 mm² |
List of bridges | Chain bridge / KBI- 15 / 0205203 | Bridge data | 116 A / 35 mm² |
Ex temperature increase | 40 K (130.5 A / 35 mm²) | Rated voltage | 690 V |
at bridging with insertion bridge | 690 V | for bridging with bridge | 690 V |
Rated insulation voltage | 630 V | output | (Permanent) |
Rated current | 118.5 A | Maximum load current | 147 A |
Contact resistance | 0.08 mΩ | Torque range | 3.2 Nm ... 3.7 Nm |
Nominal cross section | 35 mm² | Rated cross section AWG | 2 |
Connection capacity rigid | 0.75 mm² ... 50 mm² | Connection capacity AWG | 18 ... 1/0 |
Connection capacity flexible | 0.75 mm² ... 35 mm² | Connection capacity AWG | 18 ... 2 |
2 conductors with same cross section, solid | 0.75 mm² ... 16 mm² | 2 conductors with the same cross-section AWG rigid | 18 ... 6 |
2 conductors with same cross section, stranded | 0.75 mm² ... 10 mm² | 2 conductors with the same cross-section AWG flexible | 18 ... 8 |
Width | 15.1 mm | Height | 54.5 mm |
Depth on NS 32 | 67.1 mm | Depth on NS 35/7,5 | 62.1 mm |
Depth on NS 35/15 | 69.6 mm | Color | multicolored
black (RAL 9005)
yellow (RAL 1018) |
Flammability rating according to UL 94 | V0 | Insulating material group | I |
Insulating material | PA | Static insulating material application in cold | -60 °C |
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C | Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Calorimetric heat release NFPA 130 (ASTM E 1354) | 27,5 MJ/kg | Surface flammability NFPA 130 (ASTM E 162) | passed |
Specific optical density of smoke NFPA 130 (ASTM E 662) | passed | Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Open side panel | No | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 60947-7-1 |
Mounting type | NS 35/7,5
NS 35/15 |
Specifications may be subject to change without notice
