Selling Points
- 1Supports conductors from 0.75 to 50mm².
- 2Enables easy connection of multiple conductors.
- 3Secure and reliable screw termination for stable connections.
- 4Built with high-quality materials for long-lasting performance.
- 5Enjoy free delivery on orders over £50.00.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

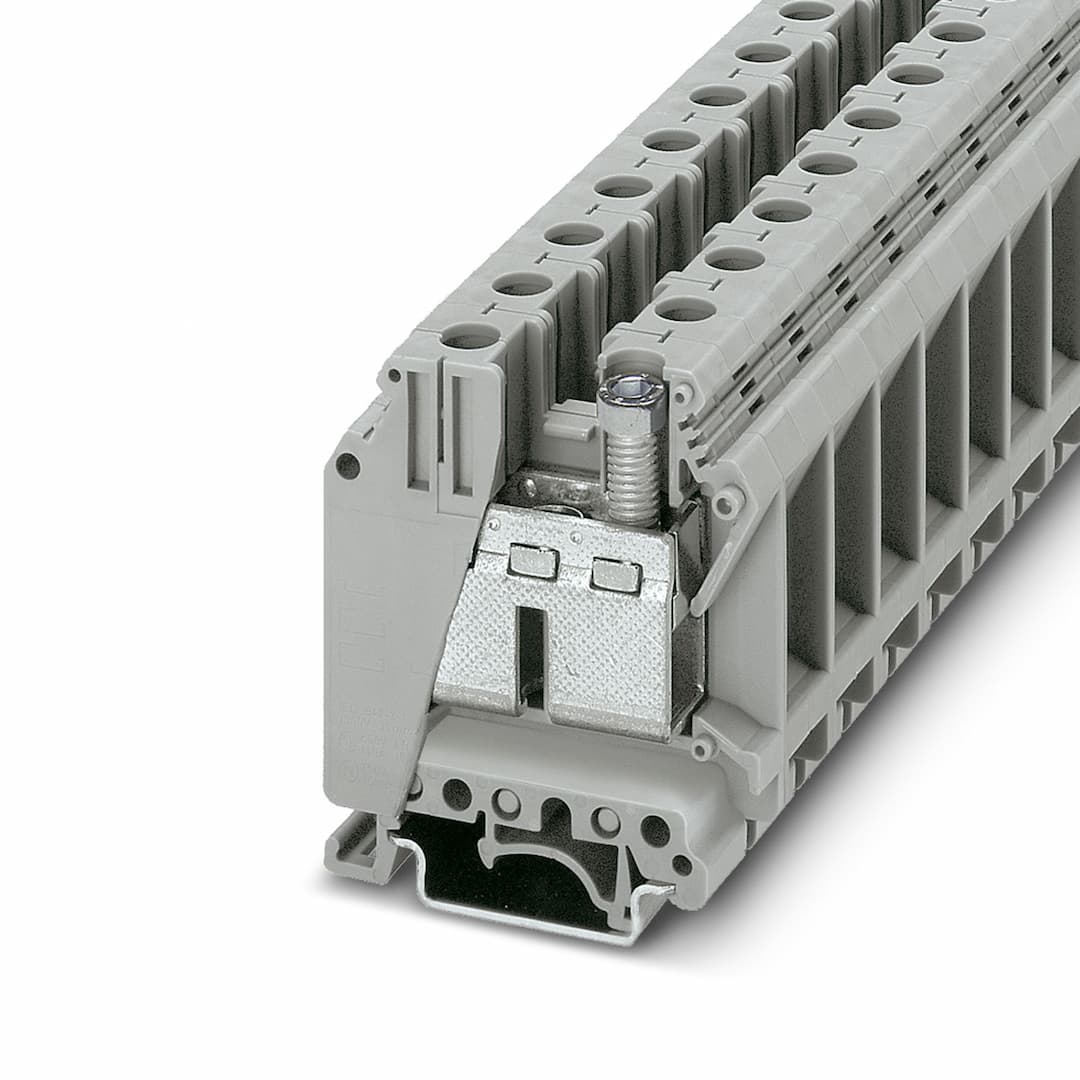

Product type | Feed-through terminal block | Number of connections | 2 |
Number of rows | 1 | Potentials | 1 |
Article revision | 11 | Overvoltage category | III |
Degree of pollution | 3 | Rated surge voltage | 8 kV |
Maximum power dissipation for nominal condition | 4.06 W | Number of connections per level | 2 |
Screw thread | M6 | Tightening torque | 3.2 ... 3.7 Nm |
Stripping length | 16 mm | Internal cylindrical gage | B9 |
Connection in acc. with standard | IEC 60947-7-1 | Conductor cross section rigid | 0.75 mm² ... 50 mm² |
Cross section AWG | 18 ... 2 (converted acc. to IEC) | Conductor cross section flexible | 0.75 mm² ... 35 mm² |
Conductor cross section, flexible [AWG] | 18 ... 2 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.75 mm² ... 35 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 0.75 mm² ... 35 mm² | 2 conductors with same cross section, solid | 0.75 mm² ... 16 mm² |
2 conductors with same cross section, flexible | 0.75 mm² ... 10 mm² | 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.75 mm² ... 10 mm² |
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.75 mm² ... 6 mm² | Nominal current | 150 A |
Maximum load current | 150 A (with 50 mm² conductor cross section) | Nominal voltage | 1000 V |
Nominal cross section | 35 mm² | Identification | II 2 GD Ex eb IIC Gb |
Operating temperature range | -60 °C ... 110 °C | Ex-certified accessories | 3008096 TP-UK 35
1212640 SF-THEX 4-150
1201442 E/UK |
List of bridges | Fixed bridge / FBI 2-15 / 0201333
Fixed bridge / FBI 3-15 / 0201278 | Bridge data | 118.5 A / 35 mm² |
List of bridges | Insertion bridge / EB 2-15 K/UK 35 / 0205119
Insertion bridge / EB 10-15 / 0205135 | Bridge data | 105.5 A / 35 mm² |
List of bridges | Chain bridge / KBI- 15 / 0205203 | Bridge data | 116 A / 35 mm² |
Ex temperature increase | 40 K (130.5 A / 35 mm²) | Rated voltage | 690 V |
at bridging with insertion bridge | 690 V | for bridging with bridge | 690 V |
Rated insulation voltage | 630 V | output | (Permanent) |
Rated current | 118.5 A | Maximum load current | 147 A |
Contact resistance | 0.08 mΩ | Torque range | 3.2 Nm ... 3.7 Nm |
Nominal cross section | 35 mm² | Rated cross section AWG | 2 |
Connection capacity rigid | 0.75 mm² ... 50 mm² | Connection capacity AWG | 18 ... 1/0 |
Connection capacity flexible | 0.75 mm² ... 35 mm² | Connection capacity AWG | 18 ... 2 |
2 conductors with same cross section, solid | 0.75 mm² ... 16 mm² | 2 conductors with the same cross-section AWG rigid | 18 ... 6 |
2 conductors with same cross section, stranded | 0.75 mm² ... 10 mm² | 2 conductors with the same cross-section AWG flexible | 18 ... 8 |
Width | 15.1 mm | Height | 50 mm |
Depth on NS 32 | 67 mm | Depth on NS 35/7,5 | 62 mm |
Depth on NS 35/15 | 69.5 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 | Insulating material group | I |
Insulating material | PA | Static insulating material application in cold | -60 °C |
Relative insulation material temperature index (Elec., UL 746 B) | 130 °C | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 | Surface flammability NFPA 130 (ASTM E 162) | passed |
Specific optical density of smoke NFPA 130 (ASTM E 662) | passed | Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Result | Test passed | Requirement temperature-rise test | Increase in temperature ≤ 45 K |
Result | Test passed | Short-time withstand current 35 mm² | 4.2 kA |
Result | Test passed | Test voltage setpoint | 2.2 kV |
Result | Test passed | Open side panel | No |
Result | Test passed | DIN rail/fixing support | NS 32/NS 35 |
Result | Test passed | Rotation speed | 10 (+/- 2) rpm |
Revolutions | 135 | Conductor cross section/weight | 0.75 mm² / 0.4 kg
35 mm² / 6.8 kg
50 mm² / 9.5 kg |
Result | Test passed | Time of exposure | 30 s |
Result | Test passed | Specification | DIN EN 50155 (VDE 0115-200):2018-05 |
Spectrum | Service life test category 2, bogie-mounted | Frequency | f |
ASD level | 6.12 (m/s²)²/Hz | Acceleration | 3.12g |
Test duration per axis | 5 h | Test directions | X-, Y- and Z-axis |
Result | Test passed | Pulse shape | Half-sine |
Acceleration | 5g | Shock duration | 30 ms |
Number of shocks per direction | 3 | Test directions | X-, Y- and Z-axis (pos. and neg.) |
Result | Test passed | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 60947-7-1 |
Mounting type | NS 32
NS 35/7,5
NS 35/15 |
Specifications may be subject to change without notice
