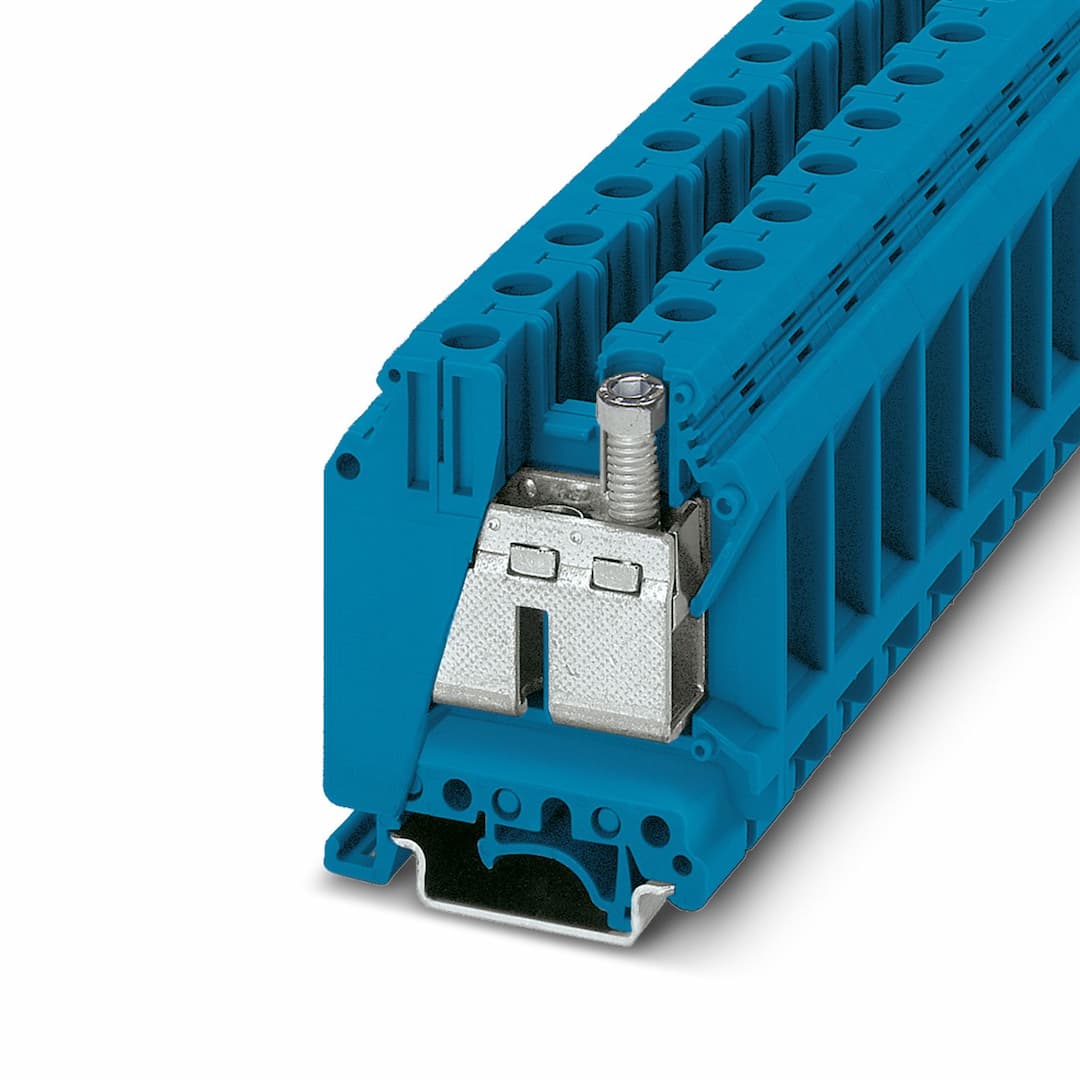

Phoenix Contact UK 35-IB BU

Selling Points

  • 1Supports up to 150A with a 50mm² conductor cross-section.
  • 2Meets overvoltage category III and has a high insulation temperature index of 130°C.
  • 3Simplifies installation with M6 screw threads and a tightening torque range of 3.2 to 3.7 Nm.
  • 4Accommodates rigid and flexible conductors from 0.75 to 50mm².
  • 5Made from blue-colored PA material with a flammability rating of UL 94 V0 for enhanced safety and reliability.
Product Details
UK 35-IB BU
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Note
When establishing a connection on the open housing side of a feed-through modular terminal block of the same series and size, the block must be provided with a cover if the expected insulation voltage is >320 V. The max. load current must not be exceeded by the total current of all connected conductors.
Product type
Feed-through terminal block
Number of connections
2
Number of rows
1
Potentials
1
Article revision
09
Overvoltage category
III
Degree of pollution
3
Rated surge voltage
8 kV
Maximum power dissipation for nominal condition
8.68 W
Number of connections per level
2
Screw thread
M6
Tightening torque
3.2 ... 3.7 Nm
Stripping length
16 mm
Internal cylindrical gage
B9
Connection in acc. with standard
IEC 60947-7-1
Conductor cross section rigid
0.75 mm² ... 50 mm²
Cross section AWG
18 ... 2 (converted acc. to IEC)
Conductor cross section flexible
0.75 mm² ... 35 mm²
Conductor cross section, flexible [AWG]
18 ... 2 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)
0.75 mm² ... 35 mm²
Flexible conductor cross section (ferrule with plastic sleeve)
0.75 mm² ... 35 mm²
2 conductors with same cross section, solid
0.75 mm² ... 16 mm²
2 conductors with same cross section, flexible
0.75 mm² ... 10 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve
0.75 mm² ... 10 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve
0.75 mm² ... 6 mm²
Nominal current
150 A
Maximum load current
150 A (with 50 mm² conductor cross section)
Nominal voltage
1000 V
Identification
 II 2 GD  Ex eb IIC Gb
Operating temperature range
-60 °C ... 110 °C
Ex-certified accessories
3008096 TP-UK 35 1212640 SF-THEX 4-150 1201442 E/UK
List of bridges
Fixed bridge / FBI 2-15 / 0201333 Fixed bridge / FBI 3-15 / 0201278
Bridge data
118.5 A / 35 mm²
List of bridges
Insertion bridge / EB 2-15 K/UK 35 / 0205119 Insertion bridge / EB 10-15 / 0205135
Bridge data
105.5 A / 35 mm²
List of bridges
Chain bridge / KBI- 15 / 0205203
Bridge data
116 A / 35 mm²
Ex temperature increase
40 K (130.5 A / 35 mm²)
Rated voltage
690 V
at bridging with insertion bridge
690 V
for bridging with bridge
690 V
Rated insulation voltage
630 V
output
(Permanent)
Rated current
118.5 A
Maximum load current
147 A
Contact resistance
0.08 mΩ
Torque range
3.2 Nm ... 3.7 Nm
Nominal cross section
35 mm²
Rated cross section AWG
2
Connection capacity rigid
0.75 mm² ... 50 mm²
Connection capacity AWG
18 ... 1/0
Connection capacity flexible
0.75 mm² ... 35 mm²
Connection capacity AWG
18 ... 2
2 conductors with same cross section, solid
0.75 mm² ... 16 mm²
2 conductors with the same cross-section AWG rigid
18 ... 6
2 conductors with same cross section, stranded
0.75 mm² ... 10 mm²
2 conductors with the same cross-section AWG flexible
18 ... 8
Width
15.1 mm
Height
50 mm
Depth on NS 32
67 mm
Depth on NS 35/7,5
62 mm
Depth on NS 35/15
69.5 mm
Color
blue (RAL 5015)
Flammability rating according to UL 94
V0
Insulating material group
I
Insulating material
PA
Static insulating material application in cold
-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))
125 °C
Relative insulation material temperature index (Elec., UL 746 B)
130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26
HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)
27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)
passed
Specific optical density of smoke NFPA 130 (ASTM E 662)
passed
Smoke gas toxicity NFPA 130 (SMP 800C)
passed
Result
Test passed
Requirement temperature-rise test
Increase in temperature ≤ 45 K
Result
Test passed
Short-time withstand current 35 mm²
4.2 kA
Result
Test passed
Test voltage setpoint
2.2 kV
Result
Test passed
Open side panel
No
Result
Test passed
DIN rail/fixing support
NS 32/NS 35
Result
Test passed
Rotation speed
10 (+/- 2) rpm
Revolutions
135
Conductor cross section/weight
0.75 mm² / 0.4 kg 35 mm² / 6.8 kg 50 mm² / 9.5 kg
Result
Test passed
Time of exposure
30 s
Result
Test passed
Specification
DIN EN 50155 (VDE 0115-200):2018-05
Spectrum
Service life test category 2, bogie-mounted
Frequency
f
ASD level
6.12 (m/s²)²/Hz
Acceleration
3.12g
Test duration per axis
5 h
Test directions
X-, Y- and Z-axis
Result
Test passed
Pulse shape
Half-sine
Acceleration
5g
Shock duration
30 ms
Number of shocks per direction
3
Test directions
X-, Y- and Z-axis (pos. and neg.)
Result
Test passed
Ambient temperature (storage/transport)
-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)
-5 °C ... 70 °C
Ambient temperature (actuation)
-5 °C ... 70 °C
Permissible humidity (storage/transport)
30 % ... 70 %
Connection in acc. with standard
IEC 60947-7-1
Mounting type
NS 35/7,5 NS 35/15 NS 32

Specifications may be subject to change without notice
