Selling Points
- 1Supports up to 125 A nominal current.
- 2Insulating material group I with a maximum load current of 125 A.
- 3Saves space with a width of 16 mm and accommodates solid and stranded conductors without ferrules.
- 4Meets DIN EN 50274 (VDE 0660-514) standards for back of the hand and finger protection.
- 5Compatible with conductor cross sections from 10 mm² to 35 mm² and AWG 8 to 2.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

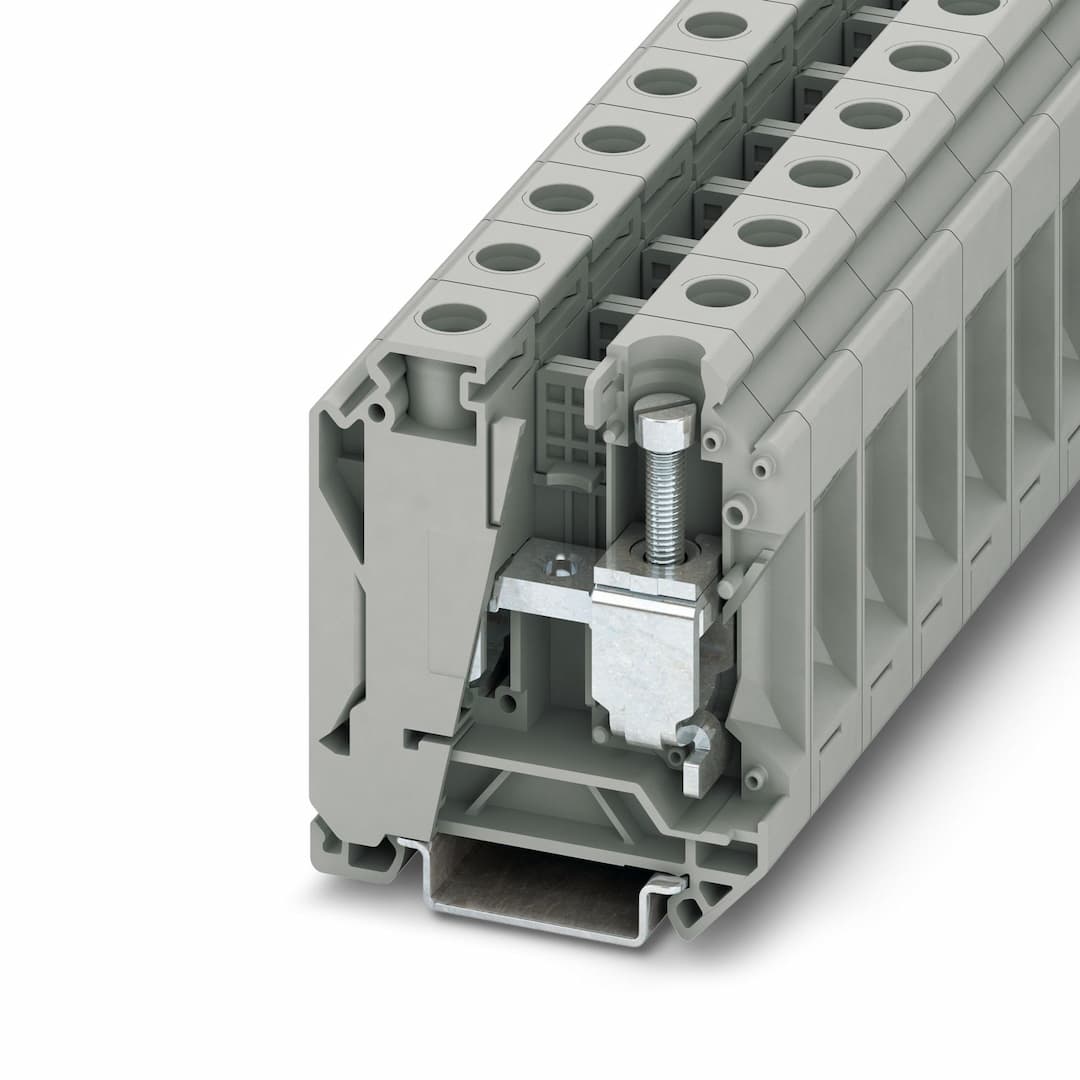

Product type | Feed-through terminal block | Product family | UK |
Number of connections | 2 | Number of rows | 1 |
Potentials | 1 | Article revision | 04 |
Overvoltage category | III | Degree of pollution | 3 |
Rated surge voltage | 8 kV | Maximum power dissipation for nominal condition | 4.06 W |
Number of connections per level | 2 | Nominal cross section | 35 mm² |
Screw thread | M6 | Tightening torque | 3.2 ... 3.7 Nm |
Stripping length | 16 mm | Connection in acc. with standard | IEC 60947-7-1 |
Conductor cross section rigid | 10 mm² ... 35 mm² | Cross section AWG | 6 ... 2 (converted acc. to IEC) |
Conductor cross section flexible | 10 mm² ... 35 mm² | Conductor cross section, flexible [AWG] | 6 ... 2 (converted acc. to IEC) |
Conductor cross-section flexible (ferrule without plastic sleeve) | 10 mm² ... 35 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 10 mm² ... 35 mm² |
2 conductors with same cross section, solid | 6 mm² ... 16 mm² | 2 conductors with same cross section, flexible | 6 mm² ... 10 mm² |
2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 6 mm² ... 10 mm² | 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 6 mm² ... 10 mm² |
Nominal current | 125 A | Maximum load current | 125 A |
Nominal voltage | 1000 V | Nominal cross section | 35 mm² |
Width | 16 mm | Height | 54.5 mm |
Depth on NS 35/7,5 | 62 mm | Depth on NS 35/15 | 69.5 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 |
Insulating material group | I | Insulating material | PA |
Static insulating material application in cold | -60 °C | Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
Relative insulation material temperature index (Elec., UL 746 B) | 130 °C | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 | Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg |
Surface flammability NFPA 130 (ASTM E 162) | passed | Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
Smoke gas toxicity NFPA 130 (SMP 800C) | passed | Result | Test passed |
Requirement temperature-rise test | Increase in temperature ≤ 45 K | Result | Test passed |
Test voltage setpoint | 2.2 kV | Result | Test passed |
Open side panel | No | Result | Test passed |
DIN rail/fixing support | NS 35 | Test force setpoint | 10 N |
Result | Test passed | Rotation speed | 10 (+/- 2) rpm |
Revolutions | 135 | Conductor cross section/weight | 10 mm² / 2 kg
35 mm² / 6.8 kg |
Result | Test passed | Time of exposure | 30 s |
Result | Test passed | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 60947-7-1 |
Mounting type | NS 35/7,5
NS 35/15 |
Specifications may be subject to change without notice
