Phoenix ContactFeed-through terminal blocks, multi-conductor terminal blocks, and multi-level terminal blocks
Product Model

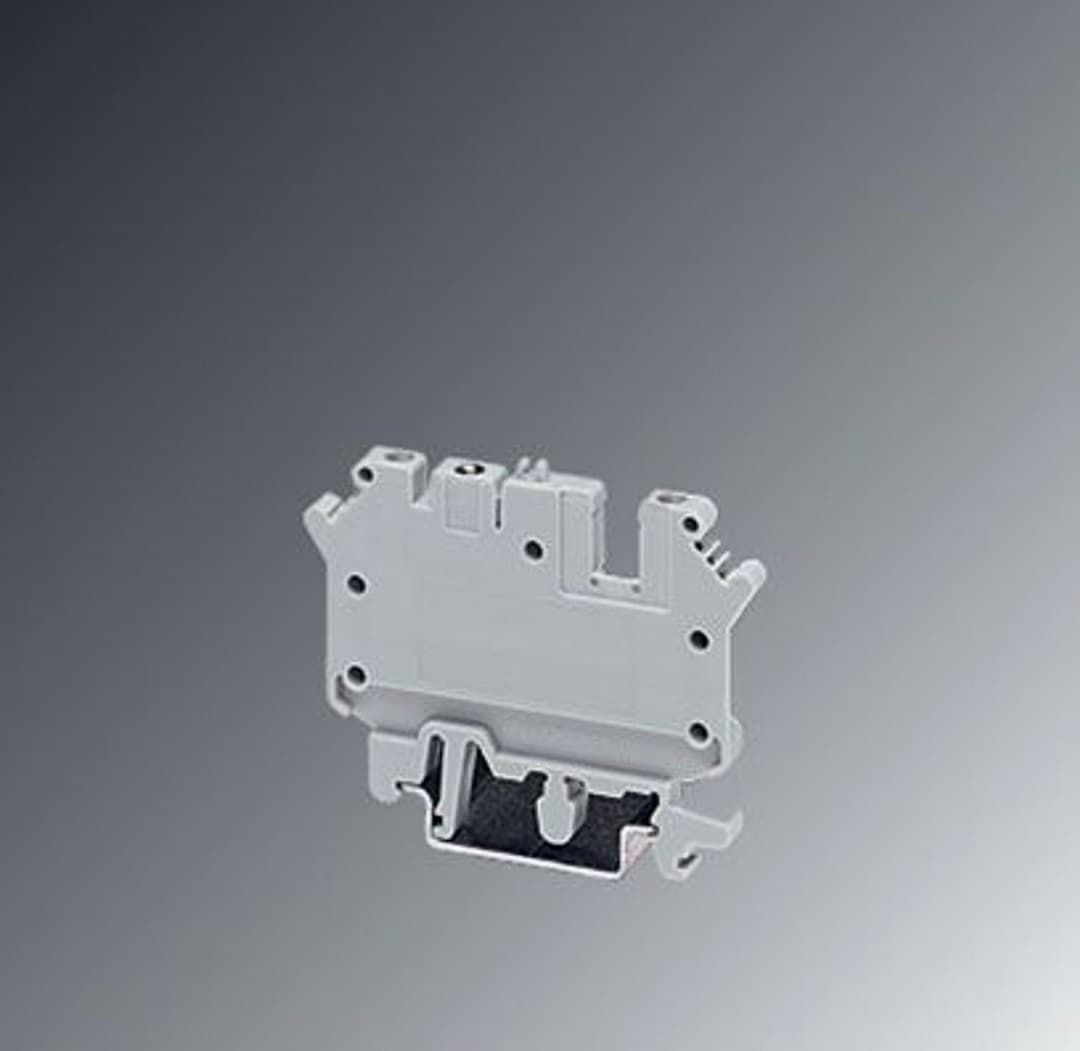

UK 3D-MSTBV-5,08-F
Selling Points
- 1Supports up to 250V for demanding electrical applications.
- 2Handles up to 24A, ensuring robust power transmission.
- 3Allows for easy wiring and reduced installation time.
- 4Made with PA insulating material for long-lasting performance.
- 5Meets WEEE/RoHS standards since 2003 for environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Feed-through terminal block | Product family | UK 3D-MSTBV |
Number of positions | 1 | Pitch | 5.08 mm |
Number of connections | 3 | Number of rows | 2 |
Potentials | 1 | Article revision | 07 |
Overvoltage category | III | Rated surge voltage | 4 kV |
Maximum power dissipation for nominal condition | 0 W | Number of connections per level | 3 |
Screw thread | M3 | Tightening torque | 0.5 ... 0.6 Nm |
Stripping length | 8 mm | Connection in acc. with standard | IEC / EN |
Conductor cross section rigid | 0.2 mm² ... 4 mm² | Cross section AWG | 24 ... 12 (converted acc. to IEC) |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section, flexible [AWG] | 24 ... 14 (converted acc. to IEC) |
Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 2.5 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 1.5 mm² |
2 conductors with same cross section, solid | 0.2 mm² ... 1.5 mm² | 2 conductors with same cross section, flexible | 0.2 mm² ... 1 mm² |
2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 0.5 mm² | 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1 mm² |
Nominal current | 24 A (terminal current - MSTB connection: 12 A) | Maximum load current | 12 A (with 4 mm² conductor cross section) |
Nominal voltage | 250 V | Width | 5.1 mm |
End cover width | 2 mm | Pitch | 5.08 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V2 |
Insulating material group | I | Insulating material | PA |
Contact surface | Tin Sn | Open side panel | Yes |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (storage/transport) | 30 % ... 70 % |
Connection in acc. with standard | IEC / EN | Mounting type | NS 35/7,5
NS 35/15
NS 32 |
Specifications may be subject to change without notice
