Product Model

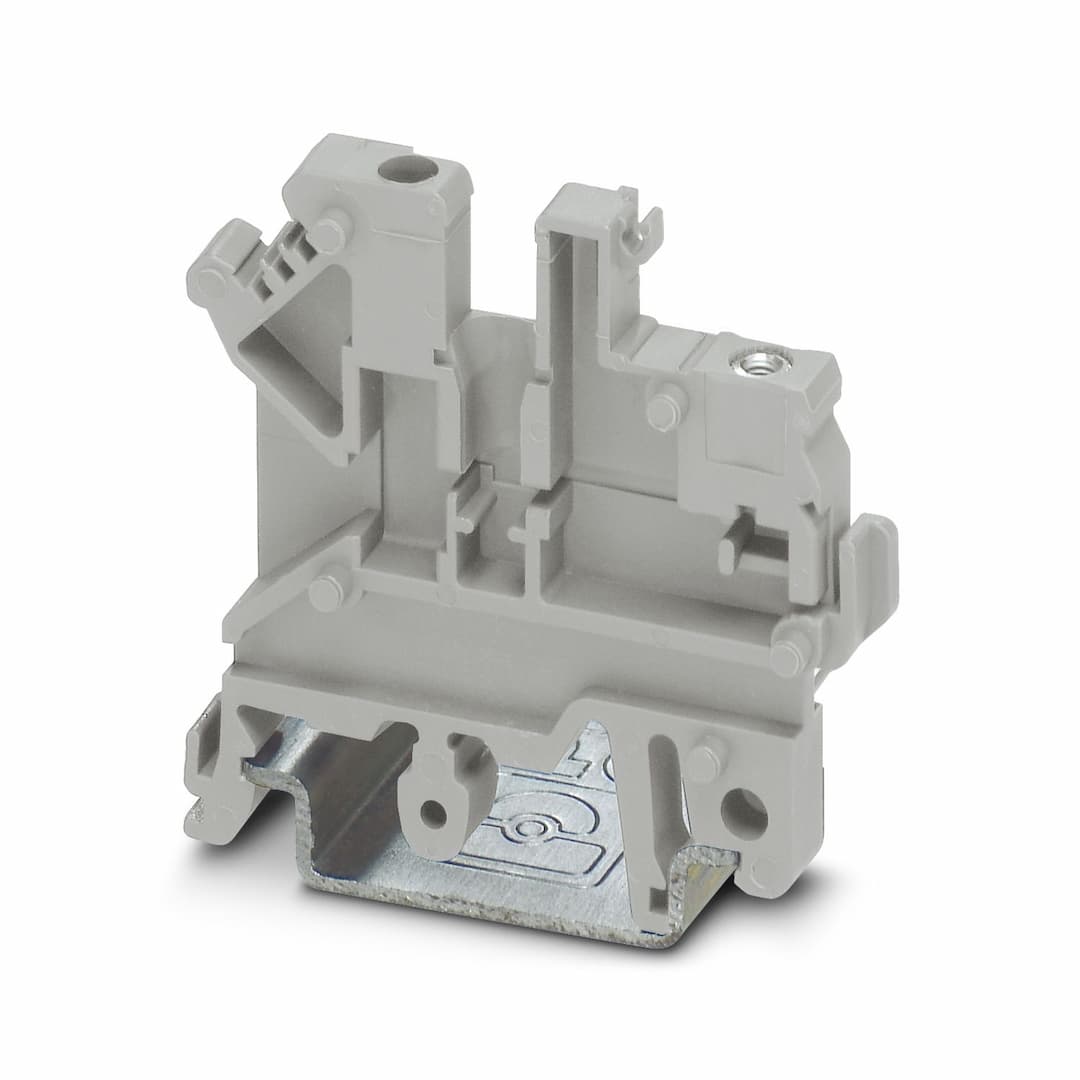

UK 3-MVSTB-5,08-F
Selling Points
- 1High Current Capability: Handles up to 12 A with a 4 mm² conductor cross section.
- 2Compact Design: Measures 48 mm in height and 5.08 mm in pitch.
- 3Versatile Mounting: Compatible with NS 35/7,5, NS 35/15, and NS 32 mounting types.
- 4Durable Construction: Made with PA insulating material and tin Sn contact surface.
- 5Reliable Performance: Meets overvoltage category III and degree of pollution 3 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Flange | Product family | UK 3-MVSTB |
Number of positions | 1 | Pitch | 5.08 mm |
Number of rows | 1 | Potentials | 1 |
Article revision | 07 | Overvoltage category | III |
Degree of pollution | 3 | Maximum load current | 12 A (with 4 mm² conductor cross section) |
Rated surge voltage | 4 kV | Maximum load current | 12 A (with 4 mm² conductor cross section) |
Internal cylindrical gage | A3 | Width | 5.08 mm |
End cover width | 2.5 mm | Height | 48 mm |
Depth on NS 35/7,5 | 47 mm | Length | 48 mm |
Pitch | 5.08 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V2 | Insulating material group | I |
Insulating material | PA | Contact surface | Tin Sn |
Ambient temperature (operation) | -60 °C (max. operating temperature see derating curve) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting type | NS 35/7,5
NS 35/15
NS 32 |
Specifications may be subject to change without notice
