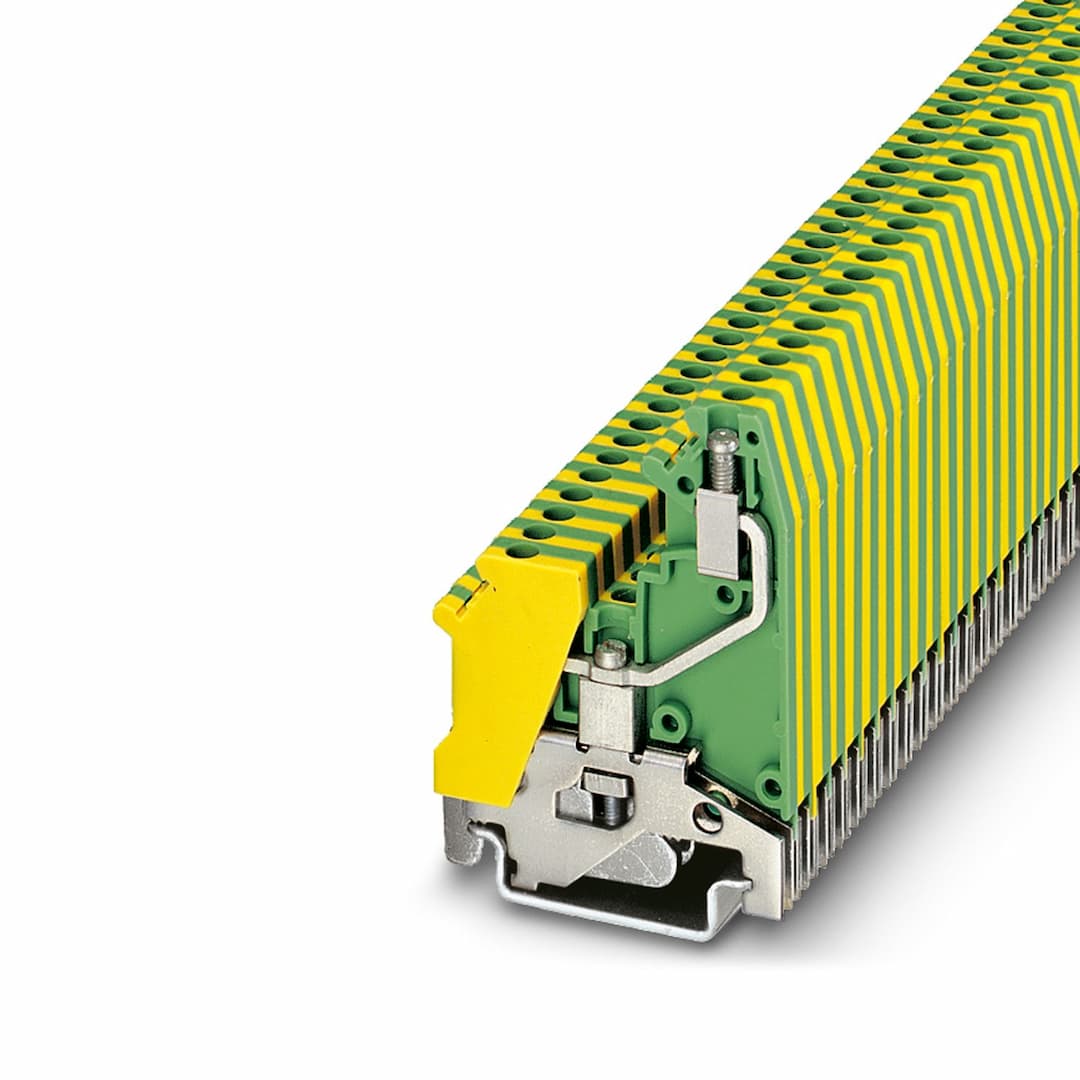

Product Model
UK 3-RETURN-PE
Selling Points
- 1Built to last with a robust design.
- 2Simple screw connection method for quick setup.
- 3Ensures electrical safety with proper grounding.
- 4Measuring 5.2 mm in width, ideal for space-saving applications.
- 5Suitable for various industrial and electrical projects.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Ground terminal block | Number of connections | 2 |
Number of rows | 2 | Overvoltage category | III |
Degree of pollution | 3 | Rated surge voltage | 6 kV |
Grounding foot | Yes | Number of connections per level | 2 |
Screw thread | M3 | Note | Please observe the current carrying capacity of the DIN rails. |
Tightening torque | 0.6 ... 0.8 Nm | Stripping length | 8 mm |
Internal cylindrical gage | A3 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Cross section AWG | 24 ... 12 (converted acc. to IEC) | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section, flexible [AWG] | 24 ... 14 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 2.5 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 1.5 mm² | Cross section AWG | 30 ... 12 (converted acc. to IEC) |
Width | 5.2 mm | Color | green-yellow |
Flammability rating according to UL 94 | V2 | Insulating material group | I |
Insulating material | PA | Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
Relative insulation material temperature index (Elec., UL 746 B) | 125 °C | Terminal block mounting | 0.6 Nm ... 0.8 Nm (PE foot with mounting screw, M3) |
Open side panel | No | Mounting type | NS 35/7,5
NS 35/15
NS 32 |
Terminal block mounting | 0.6 Nm ... 0.8 Nm (PE foot with mounting screw, M3) |
Specifications may be subject to change without notice
