Selling Points
- 1Single-Sided Double Connection: Efficiently manage multiple connections in a compact design.
- 2Robust Insulation: Meets overvoltage category III and degree of pollution 3 for reliable performance.
- 3Versatile Mounting: Compatible with NS 35/7.5, NS 35/15, and NS 32 DIN rails for flexible installation.
- 4High Surge Voltage: Rated for 6 kV surge voltage to ensure electrical safety.
- 5Easy Installation: Simple screw termination method with M3 screw thread for quick setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

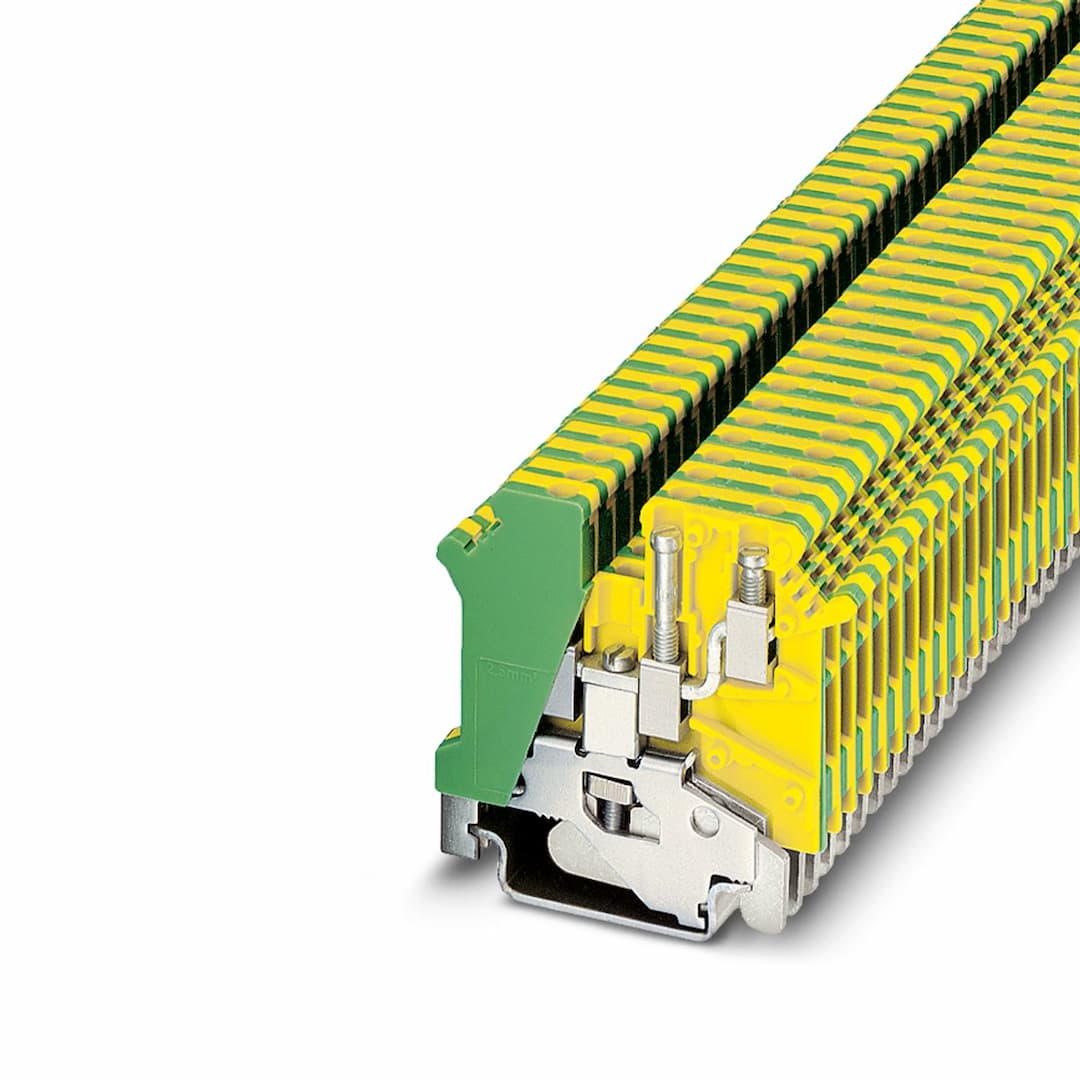

Product type | Ground terminal block | Number of connections | 3 |
Number of rows | 2 | Article revision | 10 |
Overvoltage category | III | Degree of pollution | 3 |
Rated surge voltage | 6 kV | Maximum power dissipation for nominal condition | 0.77 W |
Grounding foot | Yes | Number of connections per level | 3 |
Nominal cross section | 2.5 mm² | Screw thread | M3 |
Note | Please observe the current carrying capacity of the DIN rails. | Tightening torque | 0.5 ... 0.6 Nm |
Stripping length | 8 mm | Connection in acc. with standard | IEC 60947-7-2 |
Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Cross section AWG | 24 ... 14 (converted acc. to IEC) |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section, flexible [AWG] | 24 ... 14 (converted acc. to IEC) |
Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 1.5 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 1 mm² |
Cross-section with insertion bridge, rigid | 4 mm² | Cross-section with insertion bridge, flexible | 4 mm² |
Width | 5.2 mm | Height | 50.5 mm |
Depth on NS 32 | 52 mm | Depth on NS 35/7,5 | 47 mm |
Depth on NS 35/15 | 54.5 mm | Color | green-yellow |
Flammability rating according to UL 94 | V0 | Insulating material group | I |
Insulating material | PA | Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
Relative insulation material temperature index (Elec., UL 746 B) | 125 °C | Terminal block mounting | 0.5 Nm ... 0.6 Nm (PE foot with mounting screw, M2.5) |
Open side panel | No | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 60947-7-2 |
Mounting type | NS 35/7,5
NS 35/15
NS 32 | Terminal block mounting | 0.5 Nm ... 0.6 Nm (PE foot with mounting screw, M2.5) |
Specifications may be subject to change without notice
