Product Model

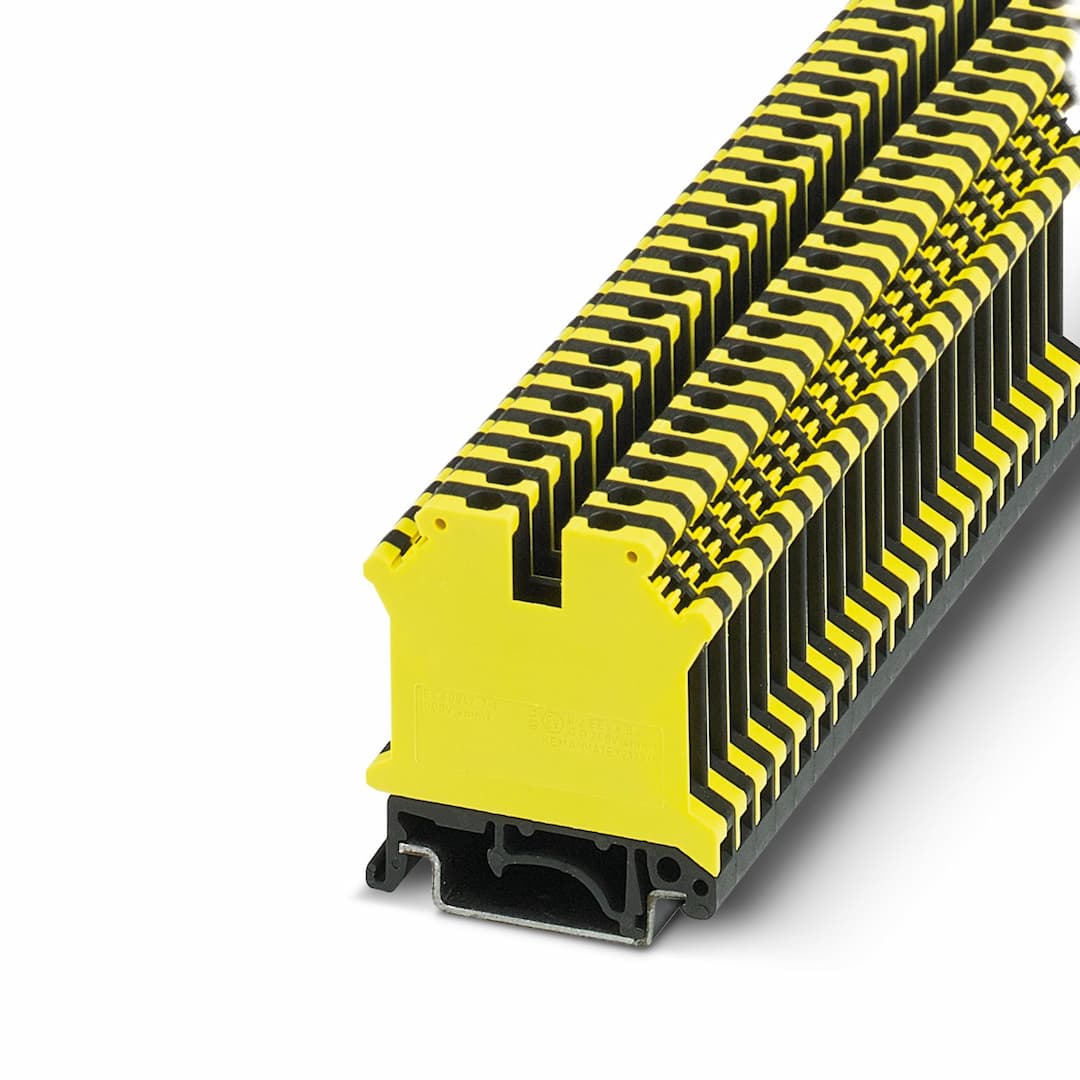

UK 4-EX BKYE-FE
Selling Points
- 1Easily connect two or more conductors with flexible bridgeability.
- 2Secure connections with a tightening torque range of 0.5 to 0.6 Nm.
- 3Meets IEC/EN standards for reliable and safe connections.
- 4Compact dimensions with a stripping length of 8 mm for efficient use.
- 5Suitable for various applications requiring multi-conductor connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Feed-through terminal block | Number of positions | 1 |
Number of connections | 2 | Number of rows | 1 |
Potentials | 1 | Article revision | 02 |
Overvoltage category | III | Degree of pollution | 3 |
Rated surge voltage | 8 kV | Maximum power dissipation for nominal condition | 0 W |
Number of connections per level | 2 | Screw thread | M3 |
Tightening torque | 0.5 ... 0.6 Nm | Stripping length | 8 mm |
Connection in acc. with standard | IEC / EN | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Cross section AWG | 24 ... 12 (converted acc. to IEC) | Conductor cross section flexible | 0.2 mm² ... 4 mm² |
Conductor cross section, flexible [AWG] | 24 ... 12 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 4 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 2.5 mm² | 2 conductors with same cross section, solid | 0.2 mm² ... 1.5 mm² |
2 conductors with same cross section, flexible | 0.2 mm² ... 1.5 mm² | 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² |
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1.5 mm² | Nominal current | 32 A |
Nominal voltage | 800 V | Connection in acc. with standard | UL |
Cross section AWG | 28 ... 12 (converted acc. to IEC) | Nominal current | 20 A |
Nominal voltage | 600 V | Connection in acc. with standard | CSA |
Cross section AWG | 28 ... 12 (converted acc. to IEC) | Nominal current | 25 A |
Nominal voltage | 600 V | Width | 6.2 mm |
End cover width | 1.8 mm | Height | 42.5 mm |
Depth on NS 32 | 52 mm | Depth on NS 35/7,5 | 47 mm |
Depth on NS 35/15 | 54.5 mm | Color | multicolored |
Flammability rating according to UL 94 | V2 | Insulating material group | I |
Insulating material | PA | Static insulating material application in cold | -40 °C |
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C | Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
Test voltage setpoint | 9.8 kV | Result | Test passed |
Requirement temperature-rise test | Increase in temperature ≤ 45 K | Result | Test passed |
Short-time withstand current 4 mm² | 0.48 kA | Result | Test passed |
Test voltage setpoint | 2 kV | Result | Test passed |
Open side panel | No | Result | Test passed |
DIN rail/fixing support | NS 32/NS 35 | Test force setpoint | 1 N |
Result | Test passed | Rotation speed | 10 rpm |
Revolutions | 135 | Conductor cross section/weight | 0.2 mm² / 0.2 kg
4 mm² / 0.9 kg |
Result | Test passed | Time of exposure | 30 s |
Result | Test passed | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC / EN
UL
CSA |
Mounting type | NS 35/7,5
NS 35/15
NS 32 |
Specifications may be subject to change without notice
