Selling Points
- 1High voltage rating up to 800 V.
- 2High current rating of 41A for efficient power distribution.
- 3Single-level design with screw termination for easy installation.
- 4Made in Germany with high-quality materials for durability.
- 5Ideal for industrial applications requiring reliable electrical connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

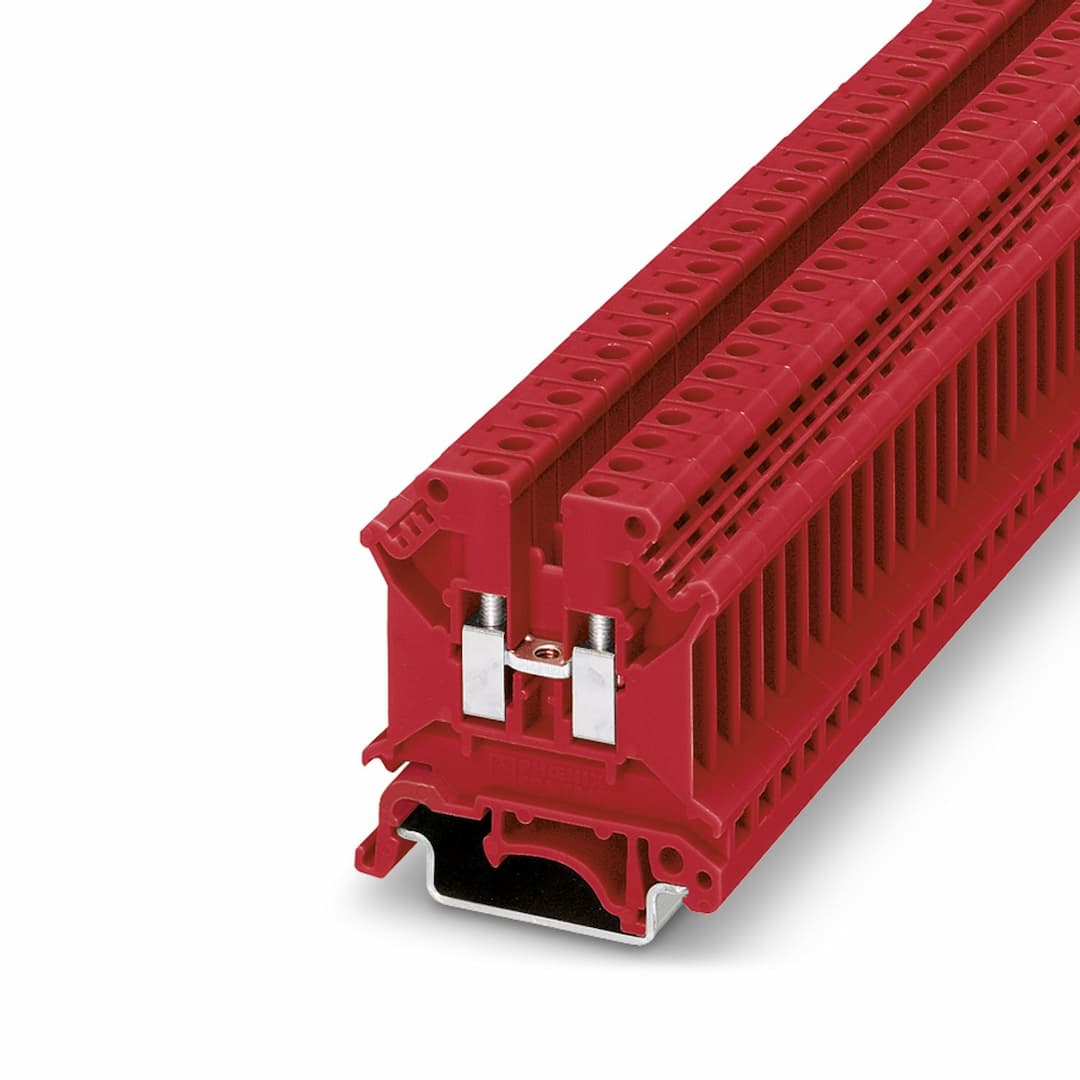

Product type | Feed-through terminal block | Number of connections | 2 |
Number of rows | 1 | Article revision | 11 |
Overvoltage category | III | Degree of pollution | 3 |
Rated surge voltage | 8 kV | Maximum power dissipation for nominal condition | 1.02 W |
Number of connections per level | 2 | Nominal cross section | 4 mm² |
Screw thread | M3 | Tightening torque | 0.6 ... 0.8 Nm |
Stripping length | 8 mm | Internal cylindrical gage | A4 |
Connection in acc. with standard | IEC 60947-7-1 | Conductor cross section rigid | 0.2 mm² ... 6 mm² |
Cross section AWG | 24 ... 10 (converted acc. to IEC) | Conductor cross section flexible | 0.2 mm² ... 4 mm² |
Conductor cross section, flexible [AWG] | 24 ... 12 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 4 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 2.5 mm² | Cross-section with insertion bridge, rigid | 4 mm² |
Cross-section with insertion bridge, flexible | 4 mm² | 2 conductors with same cross section, solid | 0.2 mm² ... 1.5 mm² |
2 conductors with same cross section, flexible | 0.2 mm² ... 1.5 mm² | 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² |
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 2.5 mm² | Nominal current | 32 A |
Maximum load current | 41 A (with 6 mm² conductor cross section) | Nominal voltage | 800 V |
Nominal cross section | 4 mm² | Identification | II 2 GD Ex eb IIC Gb |
Operating temperature range | -60 °C ... 110 °C | Ex-certified accessories | 3003020 D-UK 4/10
3006027 D-UK 16
3003224 ATP-UK
1212587 SF-SL 0,6X3,5-100 S-VDE
1201442 E/UK |
List of bridges | Fixed bridge / FB 2- 6-EX / 0201456
Fixed bridge / FB 3- 6-EX / 0201469
Fixed bridge / FB 10- 6-EX / 0201281 | Bridge data | 27.5 A / 4 mm² |
List of bridges | Fixed bridge / FBI 10- 6-EX / 0203519 | Bridge data | 28.5 A / 4 mm² |
List of bridges | Chain bridge / KB- 6-EX / 0201485 | Bridge data | 28 A / 4 mm² |
List of bridges | Chain bridge / KBI- 6-EX / 0711849 | Bridge data | 28 A / 4 mm² |
List of bridges | Cross connection bar / FB-150 METER / 0201595
Cross connection bar / ZSR-EX / 0200017 | Bridge data | 26 A / 4 mm² |
Ex temperature increase | 40 K (30 A / 4 mm²) | Rated voltage | 690 V (NS 35) |
for bridging with bridge | 550 V (NS 32) | - At bridging between non-adjacent terminal blocks | 176 V |
Rated insulation voltage | 630 V (NS 35)
500 V (NS 32) | output | (Permanent) |
Rated current | 27 A | Maximum load current | 35 A |
Contact resistance | 0.37 mΩ | Torque range | 0.6 Nm ... 0.8 Nm |
Nominal cross section | 4 mm² | Rated cross section AWG | 12 |
Connection capacity rigid | 0.2 mm² ... 6 mm² | Connection capacity AWG | 24 ... 10 |
Connection capacity flexible | 0.2 mm² ... 4 mm² | Connection capacity AWG | 24 ... 12 |
2 conductors with same cross section, solid | 0.2 mm² ... 1.5 mm² | 2 conductors with the same cross-section AWG rigid | 24 ... 16 |
2 conductors with same cross section, stranded | 0.2 mm² ... 1.5 mm² | 2 conductors with the same cross-section AWG flexible | 24 ... 16 |
Width | 6.2 mm | End cover width | 1.8 mm |
Height | 42.5 mm | Depth on NS 32 | 52 mm |
Depth on NS 35/7,5 | 47 mm | Depth on NS 35/15 | 54.5 mm |
Color | red (RAL 3001) | Flammability rating according to UL 94 | V0 |
Insulating material group | I | Insulating material | PA |
Static insulating material application in cold | -60 °C | Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Surface flammability NFPA 130 (ASTM E 162) | passed | Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
Smoke gas toxicity NFPA 130 (SMP 800C) | passed | Test voltage setpoint | 8 kV |
Result | Test passed | Requirement temperature-rise test | Increase in temperature ≤ 45 K |
Result | Test passed | Short-time withstand current 4 mm² | 0.48 kA |
Short-time withstand current 6 mm² | 0.72 kA | Result | Test passed |
Test voltage setpoint | 2 kV | Result | Test passed |
Open side panel | Yes | Result | Test passed |
DIN rail/fixing support | NS 32/NS 35 | Test force setpoint | 1 N |
Result | Test passed | Rotation speed | 10 rpm |
Revolutions | 135 | Conductor cross section/weight | 0.2 mm² / 0.2 kg
4 mm² / 0.9 kg
6 mm² / 1.4 kg |
Result | Test passed | Time of exposure | 30 s |
Result | Test passed | Specification | DIN EN 50155 (VDE 0115-200):2018-05 |
Spectrum | Service life test category 1, class B, body mounted | ASD level | 1.857 (m/s²)²/Hz |
Acceleration | 0.8g | Test duration per axis | 5 h |
Test directions | X-, Y- and Z-axis | Result | Test passed |
Specification | DIN EN 50155 (VDE 0115-200):2018-05 | Pulse shape | Half-sine |
Acceleration | 5g (10-150-10 Hz) | Shock duration | 30 ms |
Number of shocks per direction | 3 | Test directions | X-, Y- and Z-axis (pos. and neg.) |
Result | Test passed | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 60947-7-1 |
Mounting type | NS 35/7,5
NS 35/15
NS 32 |
Specifications may be subject to change without notice
