Product Model

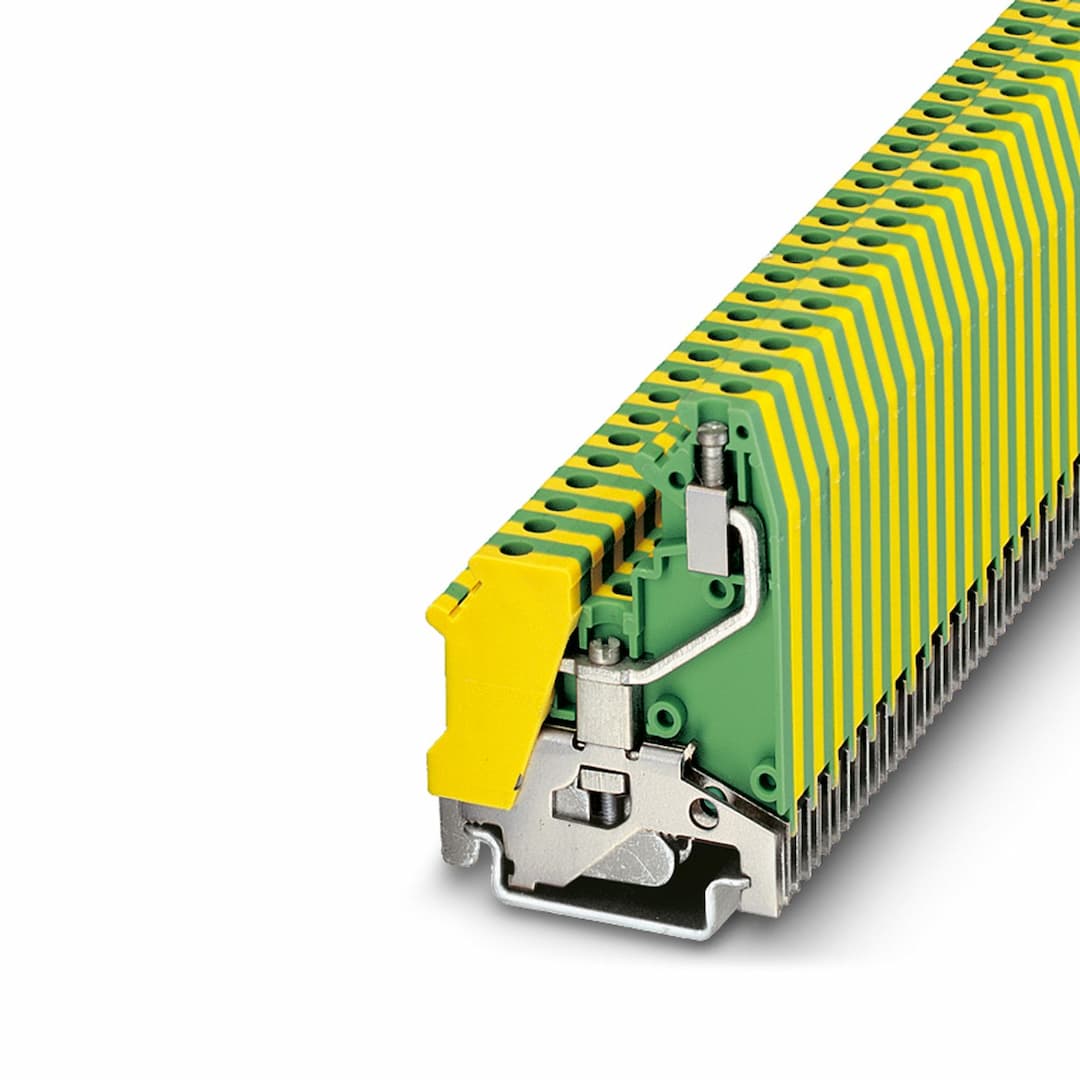

UK 5-RETURN-PE
Selling Points
- 1High-quality insulating material: PA (Polyamide) ensures reliable electrical insulation.
- 2Compact design: 2 levels, 2 connections, and a width of 6.2 mm for efficient use in tight spaces.
- 3Flammability rating: UL 94 V2 compliant, meeting stringent safety standards.
- 4Versatile connections: Supports conductor cross sections from 0.2 to 4 mm² (AWG 24 to 10).
- 5Durable construction: Rated surge voltage of 6 kV and temperature index up to 125 °C for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Ground terminal block | Number of connections | 2 |
Number of rows | 2 | Overvoltage category | III |
Degree of pollution | 3 | Rated surge voltage | 6 kV |
Grounding foot | Yes | Number of connections per level | 2 |
Screw thread | M3 | Note | Please observe the current carrying capacity of the DIN rails. |
Tightening torque | 0.6 ... 0.8 Nm | Stripping length | 8 mm |
Internal cylindrical gage | A4 | Conductor cross section rigid | 0.2 mm² ... 6 mm² |
Cross section AWG | 24 ... 10 (converted acc. to IEC) | Conductor cross section flexible | 0.2 mm² ... 4 mm² |
Conductor cross section, flexible [AWG] | 24 ... 8 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 4 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 2.5 mm² | Cross section AWG | 30 ... 12 (converted acc. to IEC) |
Width | 6.2 mm | Color | green-yellow |
Flammability rating according to UL 94 | V2 | Insulating material group | I |
Insulating material | PA | Static insulating material application in cold | -40 °C |
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C | Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
Terminal block mounting | 0.5 Nm ... 0.6 Nm (PE foot with mounting screw, M2.5) | Open side panel | No |
Mounting type | NS 35/7,5
NS 35/15
NS 32 | Terminal block mounting | 0.5 Nm ... 0.6 Nm (PE foot with mounting screw, M2.5) |
