Product Model

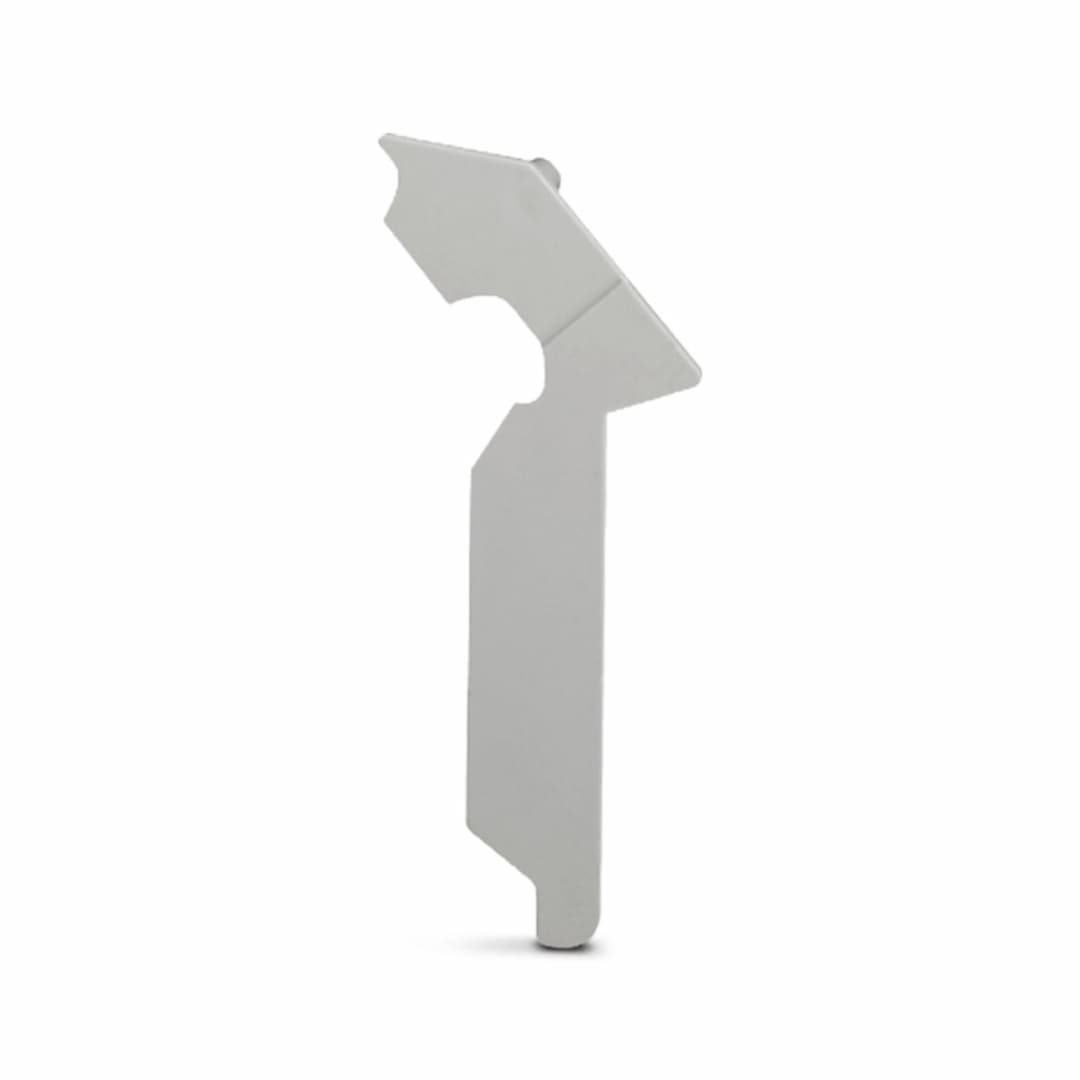

UK 5-TWIN DECKELSEGMENT
Selling Points
- 1Mounts on NS 35 or NS 32 DIN rails for versatile installation.
- 2Made with PA material, ensuring high insulation standards and V2 flammability rating.
- 3Rated up to 6 kV, providing reliable protection against electrical surges.
- 4Supports conductors with cross sections from 0.2 to 4 mm², including stranded and solid types.
- 5Meets IEC 60947-7-1 standards and undergoes rigorous testing for mechanical stability and electrical performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | End cover | Article revision | 00 |
Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (storage/transport) | 30 % ... 70 % | Color | gray (RAL 7042) |
Material | PA | Flammability rating according to UL 94 | V0 |
Width | 0.7 mm |
Specifications may be subject to change without notice
