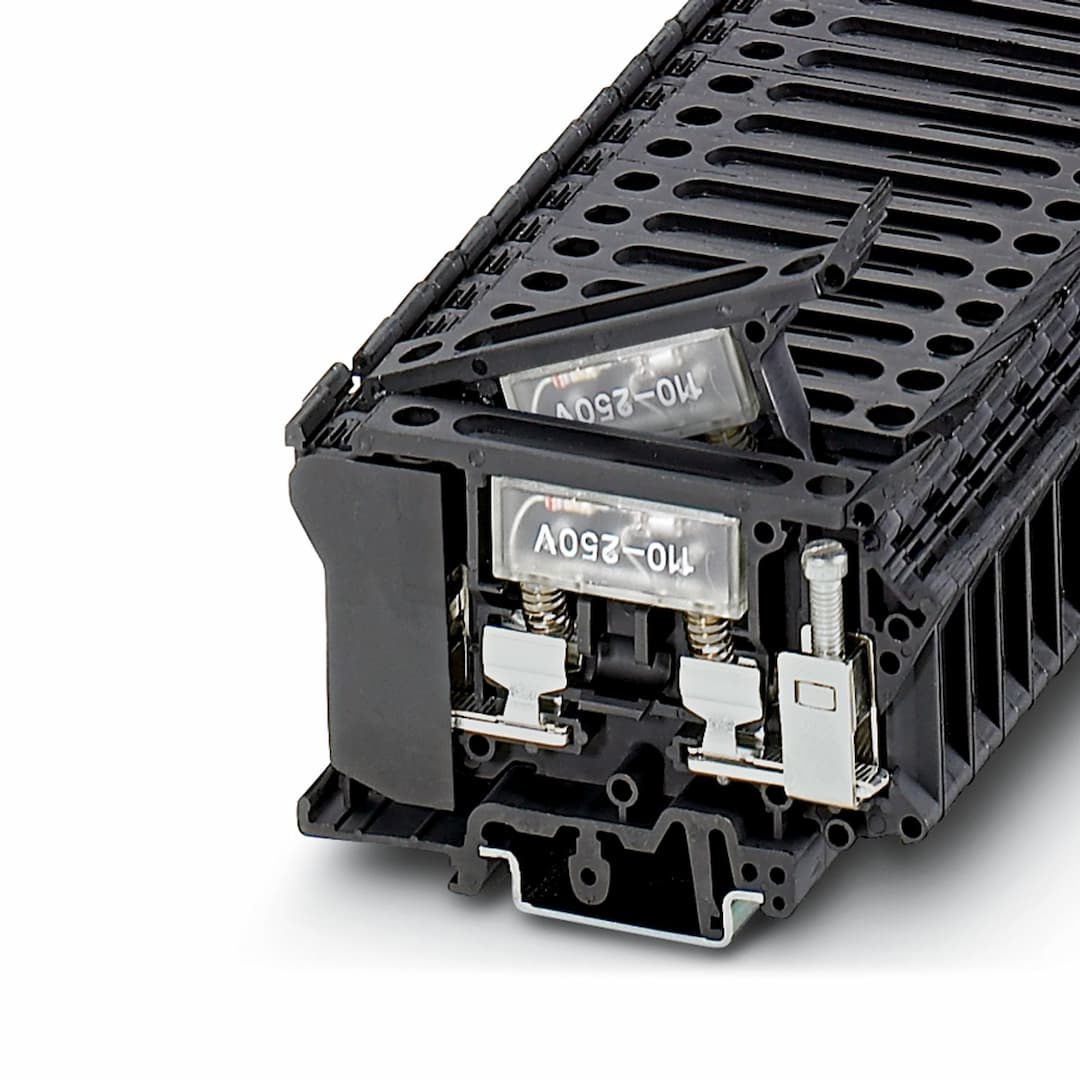

Product Model
UK 6,3-HESILA 500
Selling Points
- 1Compact design with a terminal block width of 10.2 mm.
- 2Fused and not grounded, ensuring reliable electrical connections.
- 3Push-in connection method for easy installation.
- 4Black component color for easy identification in industrial settings.
- 5Suitable for 400V voltage rating, ensuring safe operation in various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note regarding marking | For terminal marking, please use marking material with 10.2 mm pitch. | Note regarding marking | For lever marking, please use marking material with 8.2 mm pitch. |
Product type | Fuse terminal block | Number of connections | 2 |
Number of rows | 1 | Article revision | 10 |
Overvoltage category | III | Degree of pollution | 3 |
Fuse type | Glass / ceramics / ... | Rated surge voltage | 6 kV |
Maximum power dissipation for nominal condition | 2.43 W | Fuse | G / 6,3 x 32 |
LED voltage range | 500 V AC/DC | Maximum power dissipation | max. 2.5 W (with single arrangement of the fuse terminal block in the event of overload)
max. 1.6 W (With interconnected arrangement of several fuse terminal blocks in the event of overload)
max. 4 W (with single arrangement of the fuse terminal block in the event of a short-circuit)
max. 2.5 W (With interconnected arrangement of several fuse terminal blocks in the event of a short-circuit) |
LED voltage range | 500 V AC/DC | Number of connections per level | 2 |
Nominal cross section | 16 mm² | Screw thread | M4 |
Tightening torque | 1.2 ... 1.5 Nm | Stripping length | 12 mm |
Internal cylindrical gage | B6 | Connection in acc. with standard | IEC 60947-7-3 |
Conductor cross section rigid | 0.5 mm² ... 16 mm² | Cross section AWG | 20 ... 6 (converted acc. to IEC) |
Conductor cross section flexible | 0.5 mm² ... 16 mm² | Conductor cross section, flexible [AWG] | 20 ... 6 (converted acc. to IEC) |
Conductor cross-section flexible (ferrule without plastic sleeve) | 0.5 mm² ... 10 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.5 mm² ... 10 mm² |
Cross-section with insertion bridge, rigid | 10 mm² | Cross-section with insertion bridge, flexible | 10 mm² |
2 conductors with same cross section, solid | 0.5 mm² ... 4 mm² | 2 conductors with same cross section, flexible | 0.5 mm² ... 4 mm² |
2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.5 mm² ... 4 mm² | 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 6 mm² |
Nominal current | 10 A | Maximum load current | 10 A |
Nominal voltage | 500 V (As a fuse terminal block) | Nominal cross section | 1.5 mm² |
Connection in acc. with standard | IEC 60947-7-3 | Conductor cross section rigid | 0.5 mm² ... 16 mm² |
Cross section AWG | 20 ... 6 (converted acc. to IEC) | Conductor cross section flexible | 0.5 mm² ... 16 mm² |
Conductor cross-section flexible (ferrule without plastic sleeve) | 0.5 mm² ... 10 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.5 mm² ... 10 mm² |
Cross-section with insertion bridge, rigid | 10 mm² | Cross-section with insertion bridge, flexible | 10 mm² |
2 conductors with same cross section, solid | 0.5 mm² ... 4 mm² | 2 conductors with same cross section, flexible | 0.5 mm² ... 4 mm² |
2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.5 mm² ... 4 mm² | 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 6 mm² |
Nominal current | 10 A | Maximum load current | 10 A |
Nominal voltage | 800 V (As a disconnect terminal block) | Nominal cross section | 1.5 mm²
1.5 mm² |
Width | 10.2 mm | Color | black (RAL 9005) |
Flammability rating according to UL 94 | V2 | Insulating material group | I |
Insulating material | PA | Static insulating material application in cold | -60 °C |
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C | Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Calorimetric heat release NFPA 130 (ASTM E 1354) | 27,5 MJ/kg | Surface flammability NFPA 130 (ASTM E 162) | passed |
Specific optical density of smoke NFPA 130 (ASTM E 662) | passed | Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Open side panel | No | Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (storage/transport) | 30 % ... 70 % |
Connection in acc. with standard | IEC 60947-7-3
IEC 60947-7-3 | Mounting type | NS 35/7,5
NS 35/15
NS 32 |
