Product Model

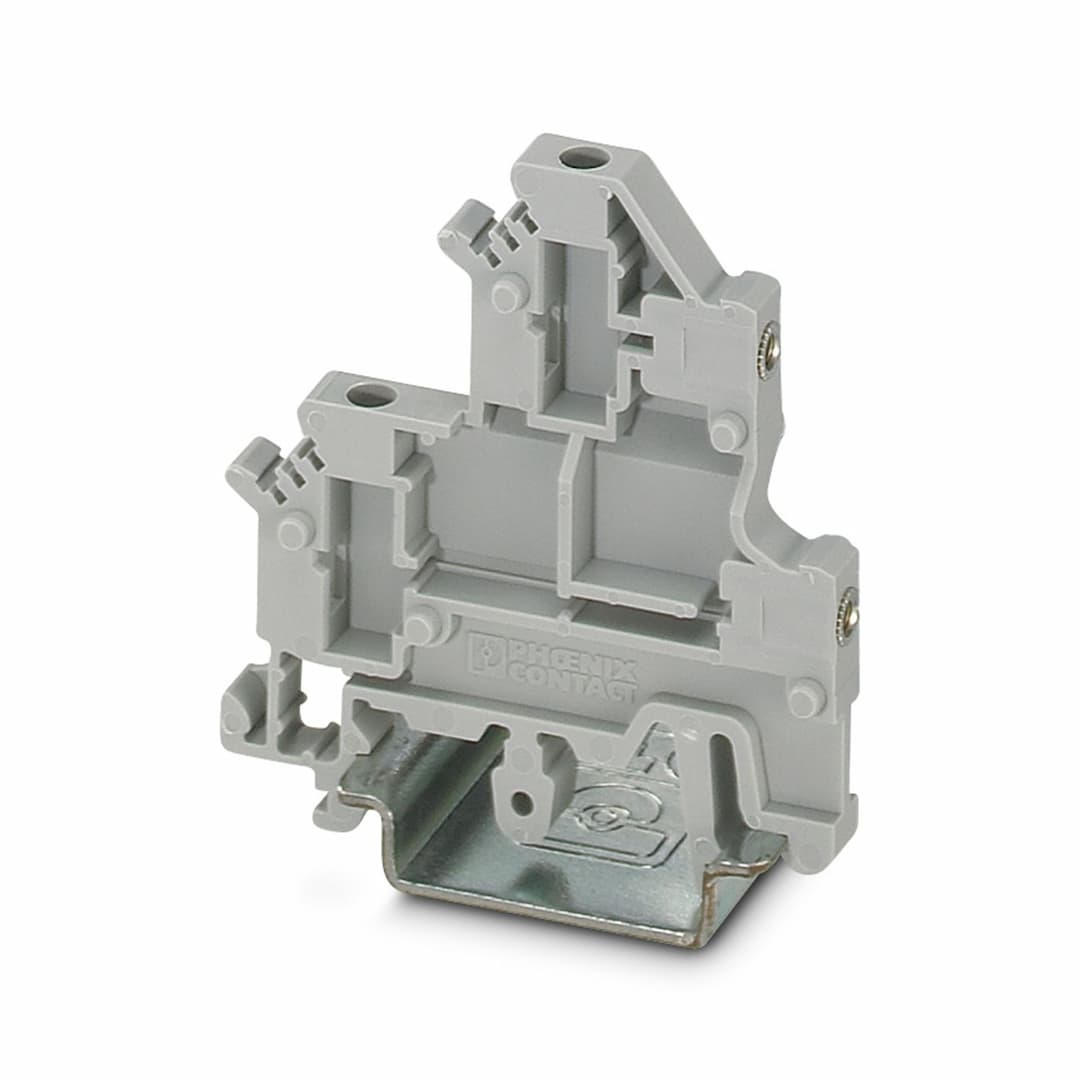

UKK 3-MSTB-5,08-F
Selling Points
- 15.08 mm pitch and 50 mm length for efficient space utilization.
- 2Insulating material group I, flammability rating V2, and overvoltage category III for reliable performance.
- 3Compatible with NS 35/7,5, NS 35/15, and NS 32 mounting types.
- 4Operating temperature range from -60°C to 110°C and permissible humidity of 20% to 90%.
- 5Screw/plug-in connection method for quick and secure terminal block assembly.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Flange | Product family | UKK 3-MSTB |
Number of positions | 1 | Pitch | 5.08 mm |
Number of rows | 2 | Article revision | 07 |
Overvoltage category | III | Degree of pollution | 3 |
Maximum power dissipation for nominal condition | 0 W | Width | 5.08 mm |
End cover width | 2.5 mm | Height | 50 mm |
Depth on NS 35/7,5 | 53.5 mm | Length | 50 mm |
Pitch | 5.08 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V2 | Insulating material group | I |
Insulating material | PA | Contact surface | Tin Sn |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting type | NS 35/7,5
NS 35/15
NS 32 |
Specifications may be subject to change without notice
