Selling Points

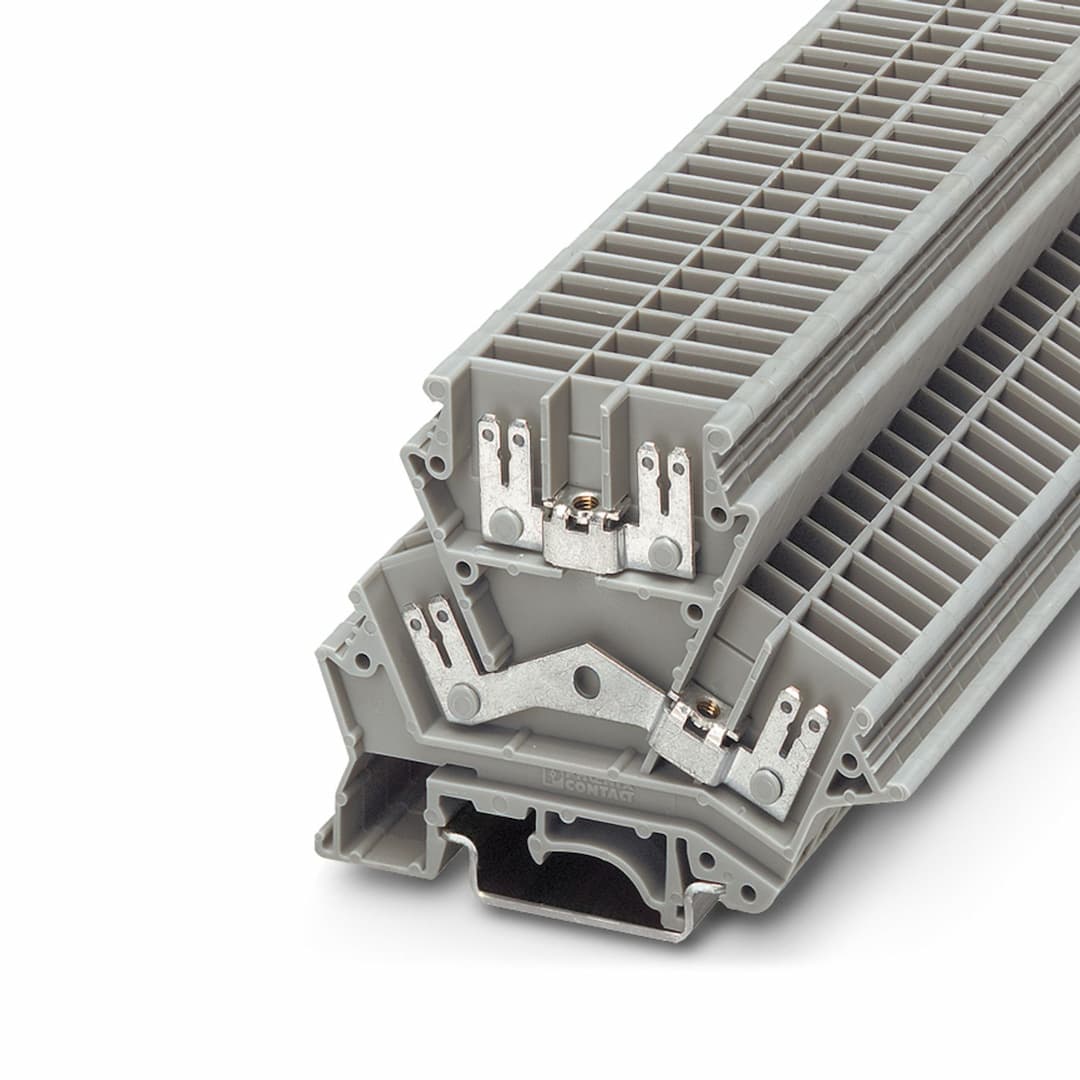

- 1High-Quality Connectivity: Ensure reliable connections with the Phoenix Contact UKK 4-FS/FS feed-through terminal block.
- 2Versatile Pin Configuration: Equipped with 8 pins, suitable for various industrial applications.
- 3Durable Construction: Grey color and robust design for long-lasting performance.
- 4Flexible AWG Range: Compatible with 20-10 AWG, accommodating different wire sizes.
- 5Industrial-grade Insulation: Features PA insulation material for enhanced safety and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Feed-through terminal block | Number of connections | 8 |
Number of rows | 2 | Potentials | 2 |
Article revision | 02 | Overvoltage category | III |
Degree of pollution | 3 | Rated surge voltage | 6 kV |
Maximum power dissipation for nominal condition | 1.02 W | Number of connections per level | 4 |
Nominal cross section | 4 mm² | Spade connection | 6.3/2.8 x 0.8 mm |
Conductor cross section rigid | 0.5 mm² ... 6 mm² | Cross section AWG | 20 ... 10 (converted acc. to IEC) |
Conductor cross section flexible | 0.5 mm² ... 6 mm² | Conductor cross section, flexible [AWG] | 20 ... 10 (converted acc. to IEC) |
Flexible conductor cross section (ferrule with plastic sleeve) | 0.5 mm² ... 6 mm² | Nominal current | 20 A (current data for slip-on connections in acc. with DIN 61210 are also dependent on nominal size, material, insulation of the sleeve and conductor cross section.) |
Maximum load current | 20 A (current data for slip-on connections in acc. with DIN 61210 are also dependent on nominal size, material, insulation of the sleeve and conductor cross section.) | Nominal voltage | 400 V (voltage data for slip-on connections in acc. with DIN 61210 are also dependent on nominal size, material, insulation of the sleeve and conductor cross section.) |
Nominal cross section | 4 mm² | Width | 6.2 mm |
End cover width | 1.5 mm | Height | 72 mm |
Depth on NS 32 | 64 mm | Depth on NS 35/7,5 | 59 mm |
Depth on NS 35/15 | 66.5 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 | Insulating material group | I |
Insulating material | PA | Open side panel | Yes |
Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | NS 35/7,5
NS 35/15
NS 32 |
Specifications may be subject to change without notice
