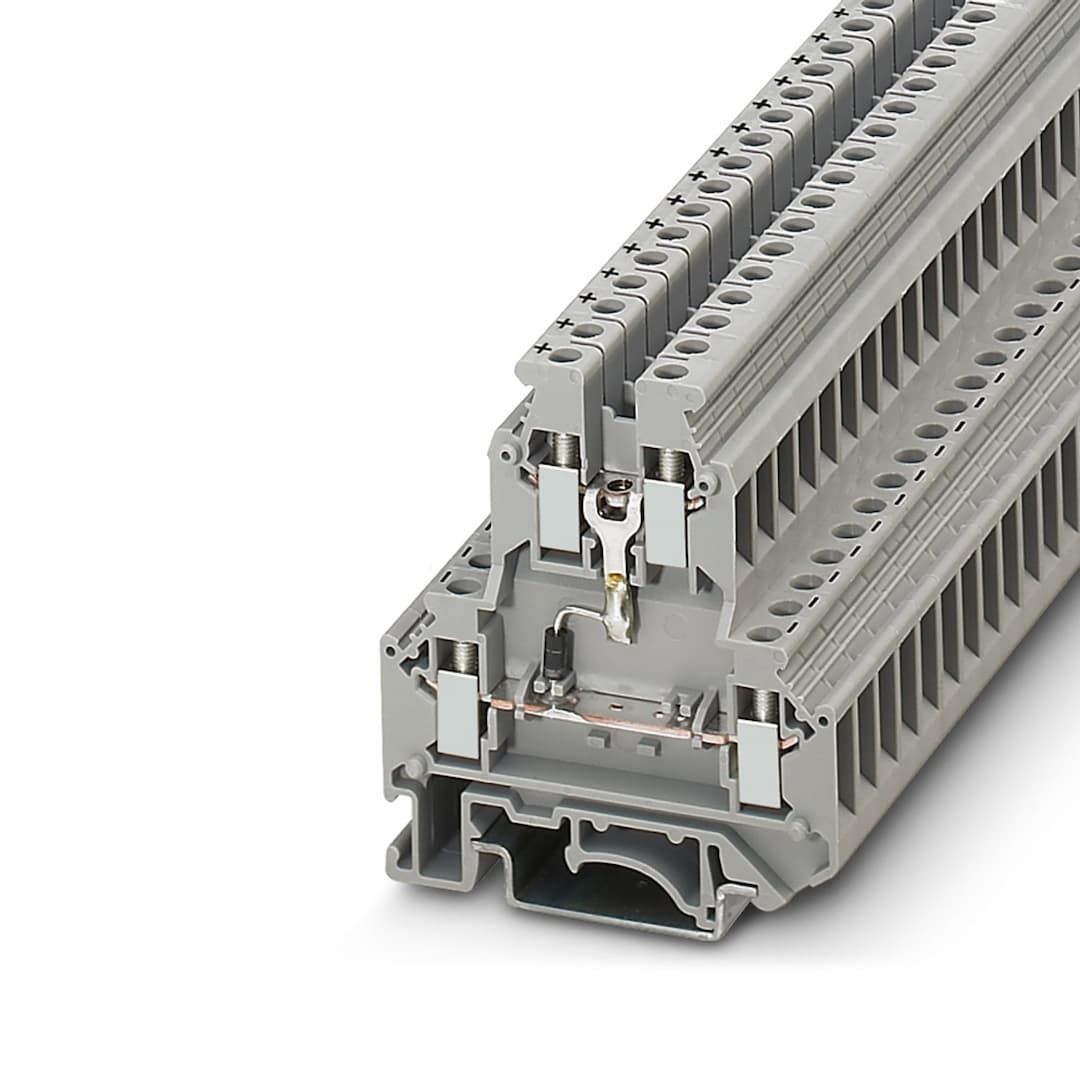

Product Model
UKK 5-DIO/O-U
Selling Points
- 1Double-Level Feed Through Design: Efficiently manage multiple connections with our double-level terminal block.
- 2High Current Capacity: Handle up to 32A with a 4 mm² conductor cross section, ensuring reliable performance.
- 3Gray Color and PA Insulation: Durable gray color and PA insulation for enhanced durability and safety.
- 4Wide Conductor Range: Compatible with 12-24 AWG conductors, accommodating various wiring needs.
- 5UL 94 V0 Inflammability Class: Meets stringent safety standards with a UL 94 V0 inflammability class.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
General | The max. current is determined by the diode. Installed: Diode 1N 4007, reverse voltage: 1300 V, maximum continuous current: 0.5 A. | Product type | Component terminal block |
Number of connections | 4 | Number of rows | 2 |
Potentials | 2 | Article revision | 09 |
Overvoltage category | III | Degree of pollution | 3 |
Rated surge voltage | 6 kV | Maximum power dissipation for nominal condition | 1.02 W |
Number of connections per level | 2 | Nominal cross section | 4 mm² |
Screw thread | M3 | Tightening torque | 0.6 ... 0.8 Nm |
Stripping length | 8 mm | Internal cylindrical gage | A4 |
Conductor cross section rigid | 0.2 mm² ... 4 mm² | Cross section AWG | 24 ... 12 (converted acc. to IEC) |
Conductor cross section flexible | 0.2 mm² ... 4 mm² | Conductor cross section, flexible [AWG] | 24 ... 12 (converted acc. to IEC) |
Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 4 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 2.5 mm² |
Cross-section with insertion bridge, rigid | 4 mm² | Cross-section with insertion bridge, flexible | 2.5 mm² |
2 conductors with same cross section, solid | 0.2 mm² ... 1.5 mm² | 2 conductors with same cross section, flexible | 0.2 mm² ... 1.5 mm² |
2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² | 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1.5 mm² |
Nominal current | 0.5 A | Maximum load current | 0.5 A |
Nominal voltage | 500 V (Data is based on the dielectric strength of adjacent terminal blocks or of the DINg rail.) | Nominal cross section | 4 mm² |
Width | 6.2 mm | End cover width | 2.5 mm |
Height | 56 mm | Depth on NS 32 | 67 mm |
Depth on NS 35/7,5 | 62 mm | Depth on NS 35/15 | 69.5 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 |
Insulating material group | I | Insulating material | PA |
Static insulating material application in cold | -60 °C | Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
Relative insulation material temperature index (Elec., UL 746 B) | 130 °C | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 | Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg |
Surface flammability NFPA 130 (ASTM E 162) | passed | Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
Smoke gas toxicity NFPA 130 (SMP 800C) | passed | Requirement temperature-rise test | Increase in temperature ≤ 45 K |
Result | Test passed | Short-time withstand current 4 mm² | 0.48 kA |
Result | Test passed | Test voltage setpoint | 2.5 kV |
Result | Test passed | Open side panel | Yes |
Result | Test passed | DIN rail/fixing support | NS 32/NS 35 |
Test force setpoint | 1 N | Result | Test passed |
Rotation speed | 10 rpm | Revolutions | 135 |
Conductor cross section/weight | 0.2 mm² / 0.2 kg
4 mm² / 0.9 kg | Result | Test passed |
Time of exposure | 10 s | Result | Test passed |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting type | NS 35/7,5
NS 35/15
NS 32 |
Specifications may be subject to change without notice
