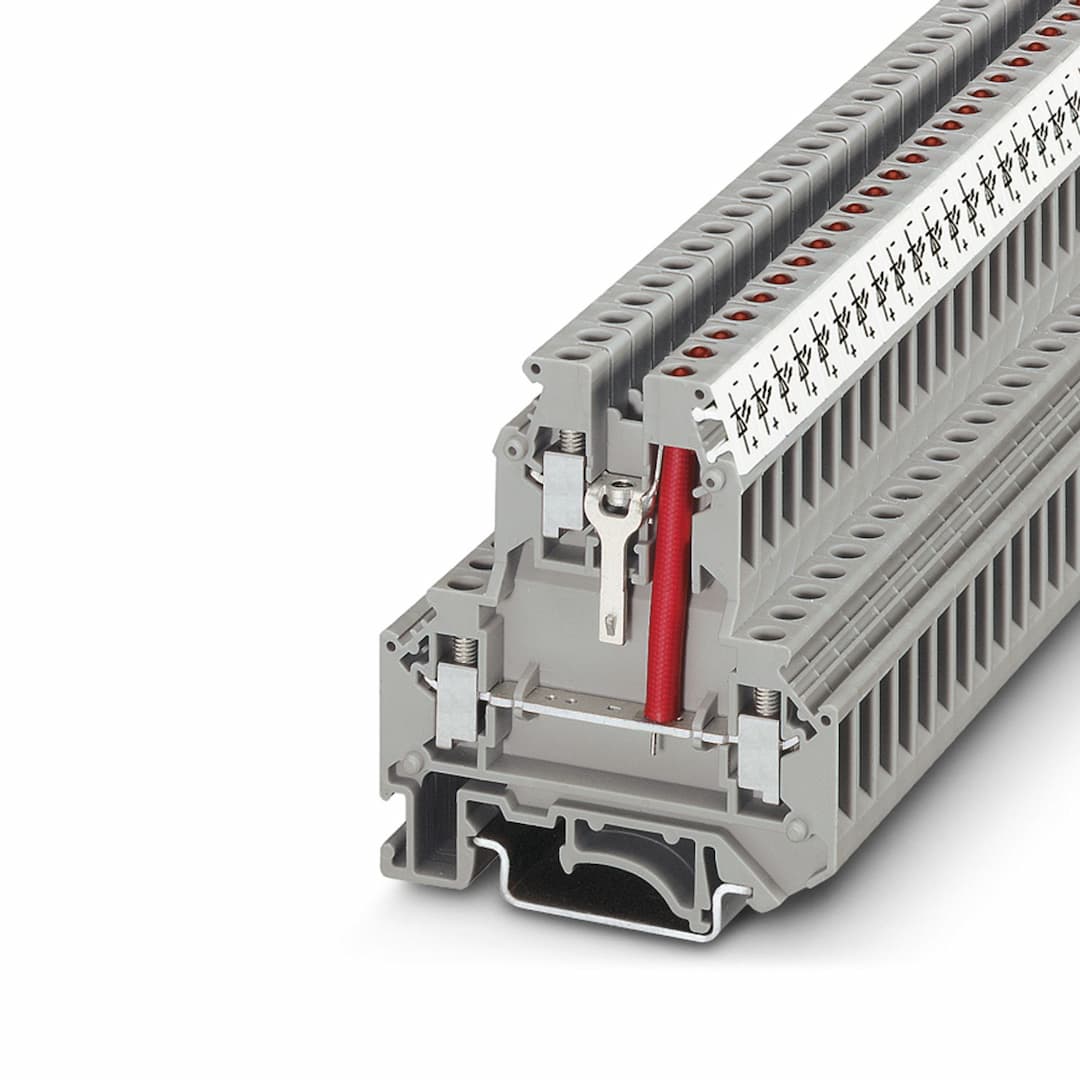

Product Model
UKK 5-LA 230
Selling Points
- 1High Voltage Capability: Handles up to 500V for reliable electrical connections.
- 2High Current Capacity: Supports up to 32A, making it suitable for demanding applications.
- 3Flexible Conductor Options: Compatible with solid and flexible conductors (0.2mm² to 4mm²).
- 4Compact Design: Measures 6.2mm in width and 56mm in length, perfect for space-constrained setups.
- 5Durable Construction: Made from high-quality materials with a flammability rating of UL 94 V0, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Component terminal block | Number of connections | 3 |
Number of rows | 2 | Potentials | 2 |
Article revision | 11 | Overvoltage category | III |
Degree of pollution | 3 | Rated surge voltage | 6 kV |
LED voltage range | 110 V AC/DC ... 230 V AC/DC | LED current range | 0.5 mA ... 1 mA |
LED voltage range | 110 V AC/DC ... 230 V AC/DC | Number of connections per level | 2 |
Nominal cross section | 4 mm² | Screw thread | M3 |
Tightening torque | 0.6 ... 0.8 Nm | Stripping length | 8 mm |
Internal cylindrical gage | A4 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Cross section AWG | 24 ... 12 (converted acc. to IEC) | Conductor cross section flexible | 0.2 mm² ... 4 mm² |
Conductor cross section, flexible [AWG] | 24 ... 12 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 4 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 2.5 mm² | Cross-section with insertion bridge, rigid | 4 mm² |
Cross-section with insertion bridge, flexible | 2.5 mm² | 2 conductors with same cross section, solid | 0.2 mm² ... 1.5 mm² |
2 conductors with same cross section, flexible | 0.2 mm² ... 1.5 mm² | 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² |
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1.5 mm² | Nominal current | 32 A |
Maximum load current | 32 A (with 4 mm² conductor cross section) | Nominal voltage | 500 V (Data is based on the dielectric strength of adjacent terminal blocks or of the DINg rail.) |
Nominal cross section | 4 mm² | Width | 6.2 mm |
End cover width | 2.5 mm | Height | 56 mm |
Depth on NS 32 | 67 mm | Depth on NS 35/7,5 | 62 mm |
Depth on NS 35/15 | 69.5 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 | Insulating material group | I |
Insulating material | PA | Static insulating material application in cold | -60 °C |
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C | Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg | Surface flammability NFPA 130 (ASTM E 162) | passed |
Specific optical density of smoke NFPA 130 (ASTM E 662) | passed | Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Open side panel | Yes | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | NS 35/7,5
NS 35/15
NS 32 |
Specifications may be subject to change without notice
