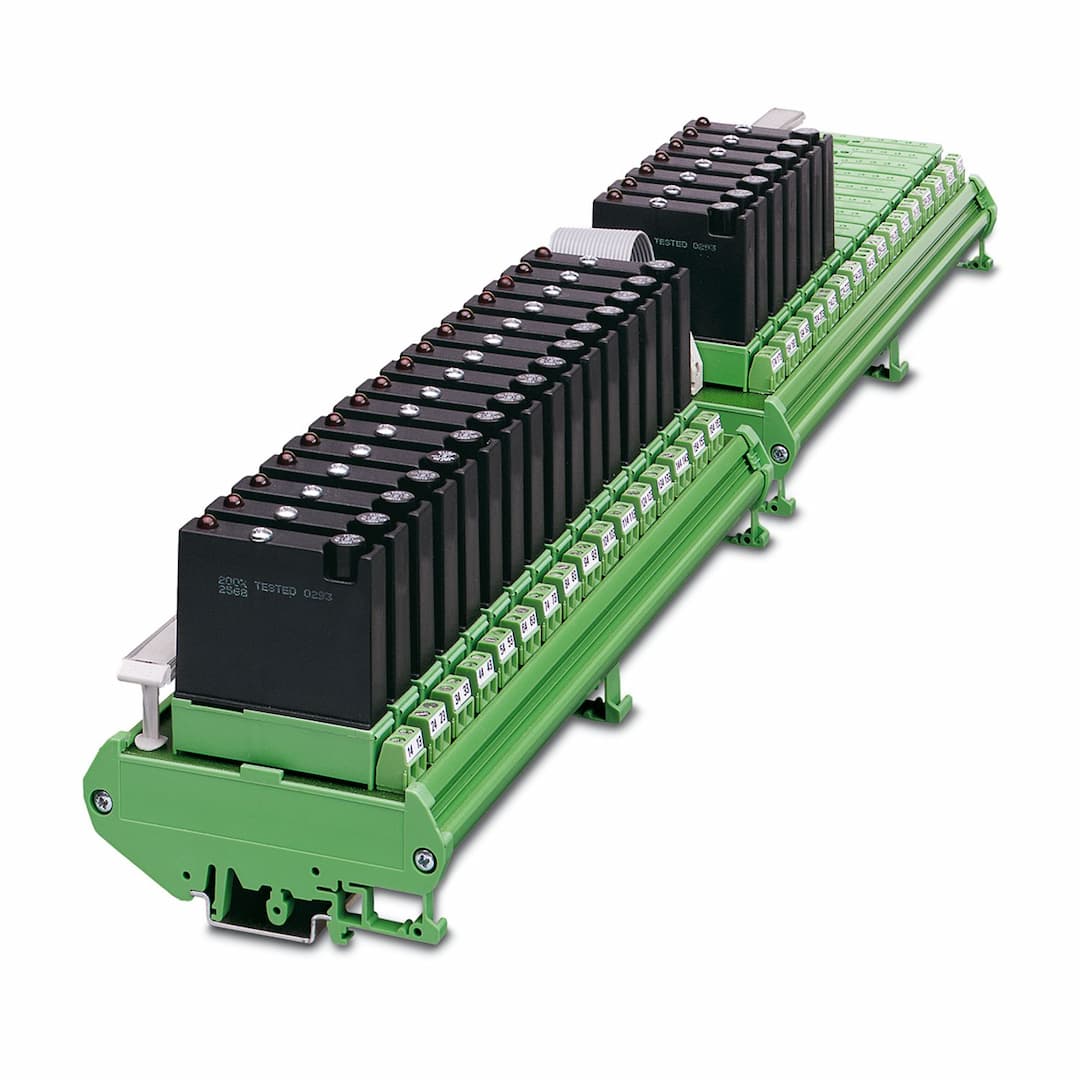

Product Model
UMK-16 OM/AMSC/PLC
Selling Points
- 116 Channels Support: Handles 16 channels with plug-in sockets for efficient relay management.
- 2Generation 4 Solid-State Relays: Compatible with Generation 4 solid-state relays from OPTO 22 for high-performance applications.
- 3Versatile Compatibility: Supports various controllers including SIEMENS S7-400, ALLEN-BRADLEY ControlLogix, and ALLEN-BRADLEY PLC 5.
- 4Reliable Operation: Equipped with reverse polarity protection and green LED operating voltage display for enhanced reliability.
- 5High Switching Capacity: Features 1 N/O contact with a maximum switching voltage of 250 V AC/DC and a continuous load current of 6 A.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | No. of channels | 16
32 |
Compatible components | Solid-state relay, Generation 4 from OPTO 22 | With components | no |
Suitable I/O card | 6ES7422-1BL00-0AA0
6ES7422-7BL00-0AB0 | Suitable I/O card | 1756-OB32 |
Suitable I/O card | 1771 OBN | Suitable I/O card | TC-ODD 321 |
Suitable I/O card | QY81P | Suitable I/O card | DDO 353 |
Suitable I/O card | 6ES7322-1BL00-0AA0 | Suitable I/O card | IC694MDL754 |
Nominal input voltage U | 24 V DC | Input voltage range | 30 V DC |
Protective circuit | Reverse polarity protection | Operating voltage display | Green LED |
Compatible components | Solid-state relay, Generation 4 from OPTO 22 | Contact switching type | 1 N/O contact |
Maximum switching voltage | 250 V AC/DC | Limiting continuous current | 6 A |
Nominal supply voltage | 250 V AC/DC (data is module-specific) | Continuous load current | 6 A |
Error detection (line break / short-circuit) | no | Connection method | Screw connection |
Stripping length | 6 mm | Screw thread | M3 |
Number of connections | 36 | Number of positions | 2 |
Conductor cross section rigid | 0.14 mm² ... 1.5 mm² | Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
Conductor cross section AWG | 26 ... 14 | Connection method | IDC/FLK pin strip |
Number of connections | 2 | Number of positions | 50 |
Pitch | 2.54 mm | Status display present | No |
Width | 259 mm | Height | 90 mm |
Depth | 87 mm | Color | green (RAL 6021) |
Housing insulation material | PVC, side panel PA non-reinforced, | Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Standards/regulations | IEC 60664
DIN EN 50178 |
Mounting position | any | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
