Product Model

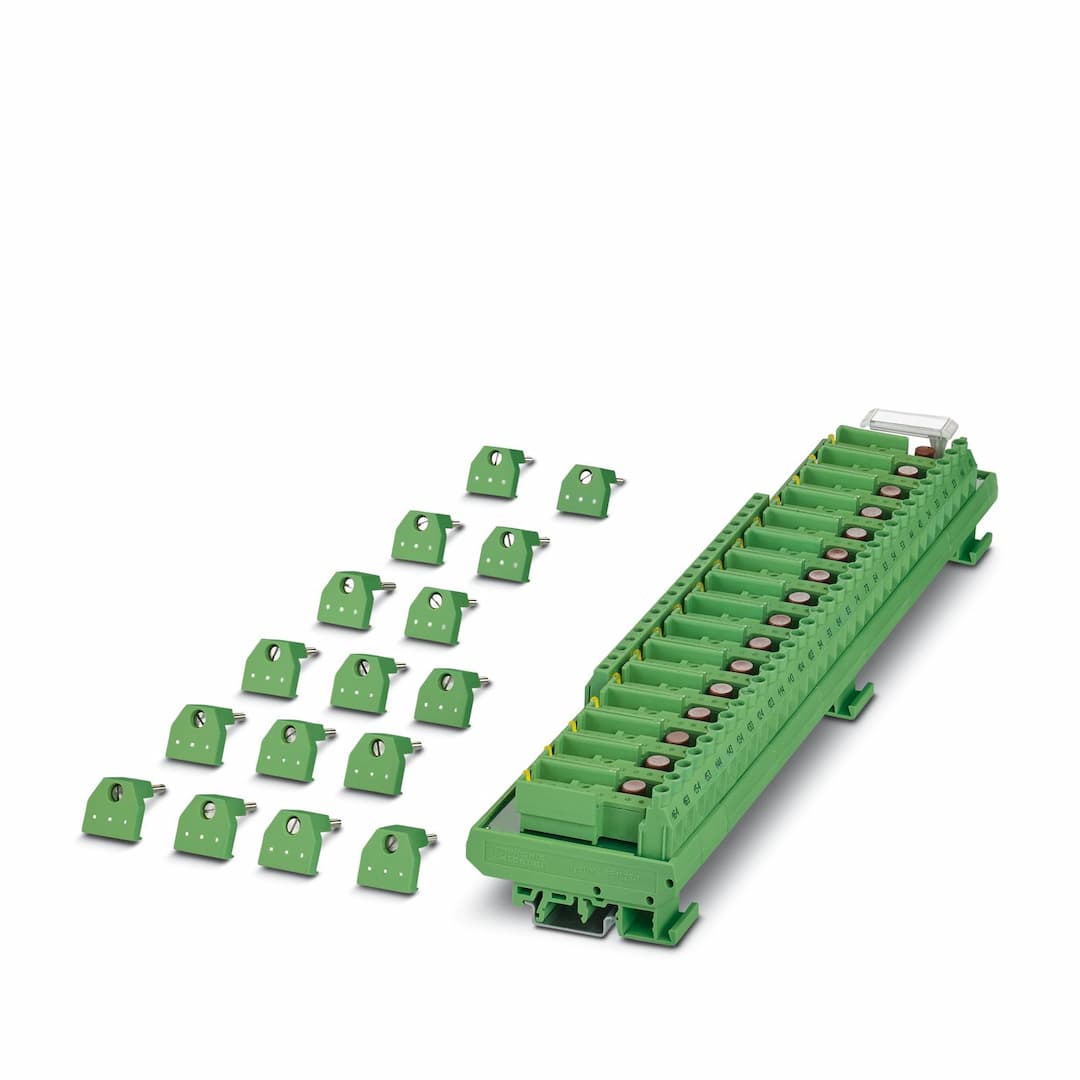

UMK-16 OM-R/MF/MKDS/P
Selling Points
- 1Highly Reliable Optocoupler Module: Ensures secure isolation between input and output signals.
- 216 Solid-State Relays: Provides flexible configuration options for various control logic needs.
- 3Integrated Security Latch: Enhances module safety with a secure latch mechanism.
- 4Light Indicator and Fuse: Offers visual status monitoring and line protection.
- 5Wide Ambient Temperature Range: Operates effectively from -20°C to 50°C, making it suitable for diverse industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Multi-channel solid-state relay module | No. of channels | 16 |
Compatible components | Digital I/O modules | With components | no |
Article revision | 07 | Input voltage range | 4 V ... 32 V |
Typical input current at U | 30 mA (Optocoupler dependent) | Operating voltage display | Yellow LED |
Status display/channel | Yellow LED | Compatible components | Digital I/O modules |
Limiting continuous current | 4 A (Optocoupler dependent) | Nominal supply voltage | 250 V |
Error detection (line break / short-circuit) | no | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Number of connections | 2 | Number of positions | 20 |
Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Number of connections | 32 | Number of positions | 3 |
Conductor cross section rigid | 0.2 mm² ... 6 mm² | Conductor cross section flexible | 0.2 mm² ... 4 mm² |
Conductor cross section AWG | 24 ... 10 | Status display present | Yes |
Width | 326.5 mm | Height | 77 mm |
Depth | 72 mm | Color | green (RAL 6021) |
Housing insulation material | PVC, side panel PA non-reinforced, | Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Standards/regulations | DIN VDE 0110b, Gr. C for 250 V DC
DIN VDE 0160 (in relevant parts) |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
