Product Model

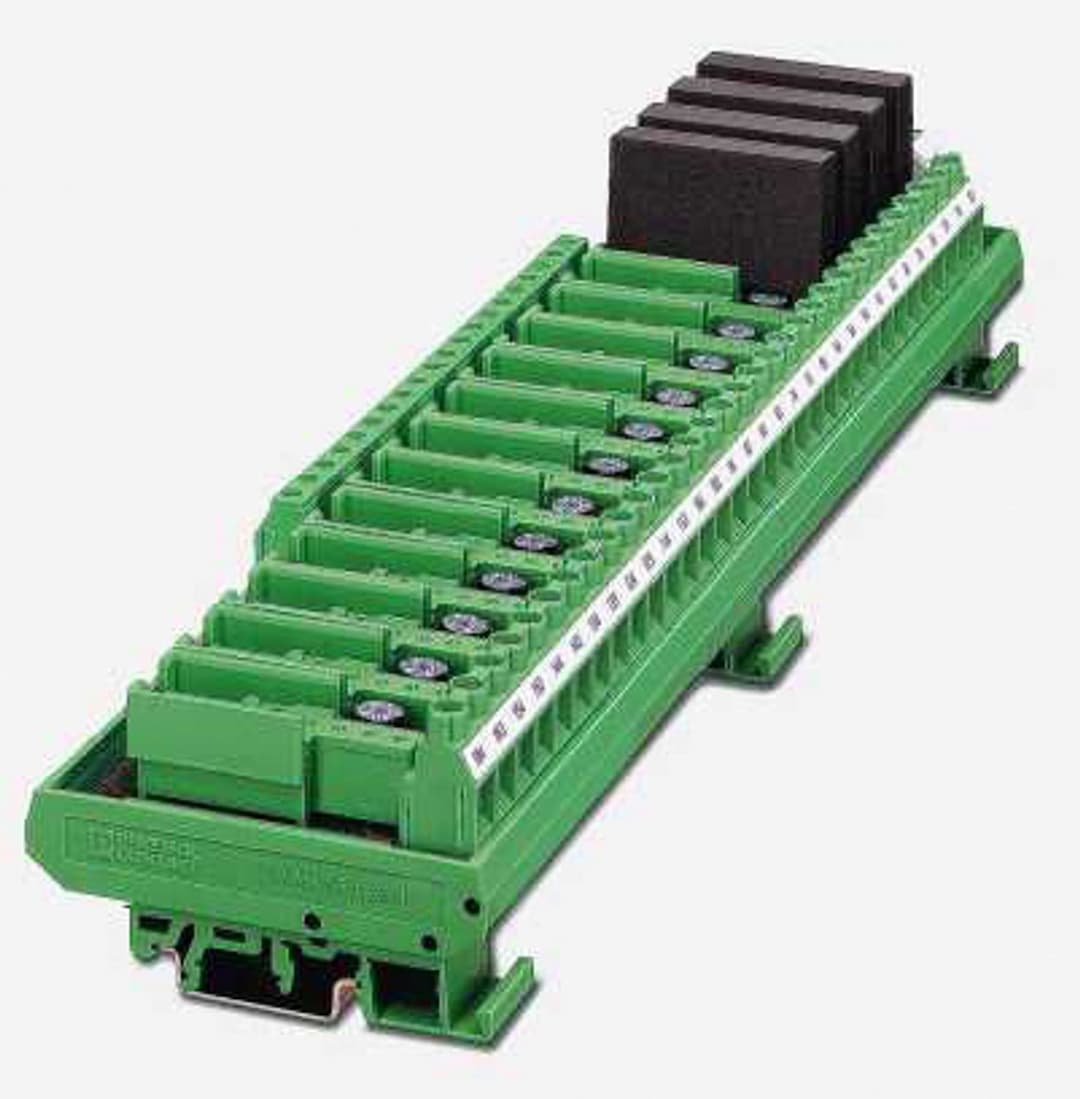

UMK-16 OM-R/PF/MKDS
Selling Points
- 116 Channels of Digital I/O: Supports up to 16 channels for versatile digital input/output operations.
- 2Security Latch and Screw Connection: Ensures secure and reliable connections with a built-in security latch and screw connection.
- 3Integrated Light Indicator and Fuse: Provides real-time status monitoring with a yellow LED light indicator and line protection via an integrated fuse.
- 4Operating Temperature Range: Operates within -20°C to 50°C ambient temperature, making it suitable for various industrial environments.
- 5Compliant with DIN VDE Standards: Meets DIN VDE 0110b and DIN VDE 0160 standards for 250 V DC applications, ensuring high safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | No. of channels | 16 |
Compatible components | Digital I/O modules | With components | no |
Input voltage range | 4 V ... 32 V | Typical input current at U | 30 mA (Optocoupler dependent) |
Status display/channel | Yellow LED | Compatible components | Digital I/O modules |
Limiting continuous current | 5 A (Optocoupler dependent) | Nominal supply voltage | 125 V |
Error detection (line break / short-circuit) | no | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Number of connections | 2 | Number of positions | 20 |
Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Number of connections | 32 | Number of positions | 3 |
Conductor cross section rigid | 0.2 mm² ... 6 mm² | Conductor cross section flexible | 0.2 mm² ... 4 mm² |
Conductor cross section AWG | 24 ... 10 | Status display present | Yes |
Width | 326.5 mm | Height | 77 mm |
Depth | 72 mm | Color | green (RAL 6021) |
Housing insulation material | PVC, side panel PA non-reinforced, | Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Standards/regulations | DIN VDE 0110b, Gr. C for 250 V DC
DIN VDE 0160 (in relevant parts) |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
