Product Model

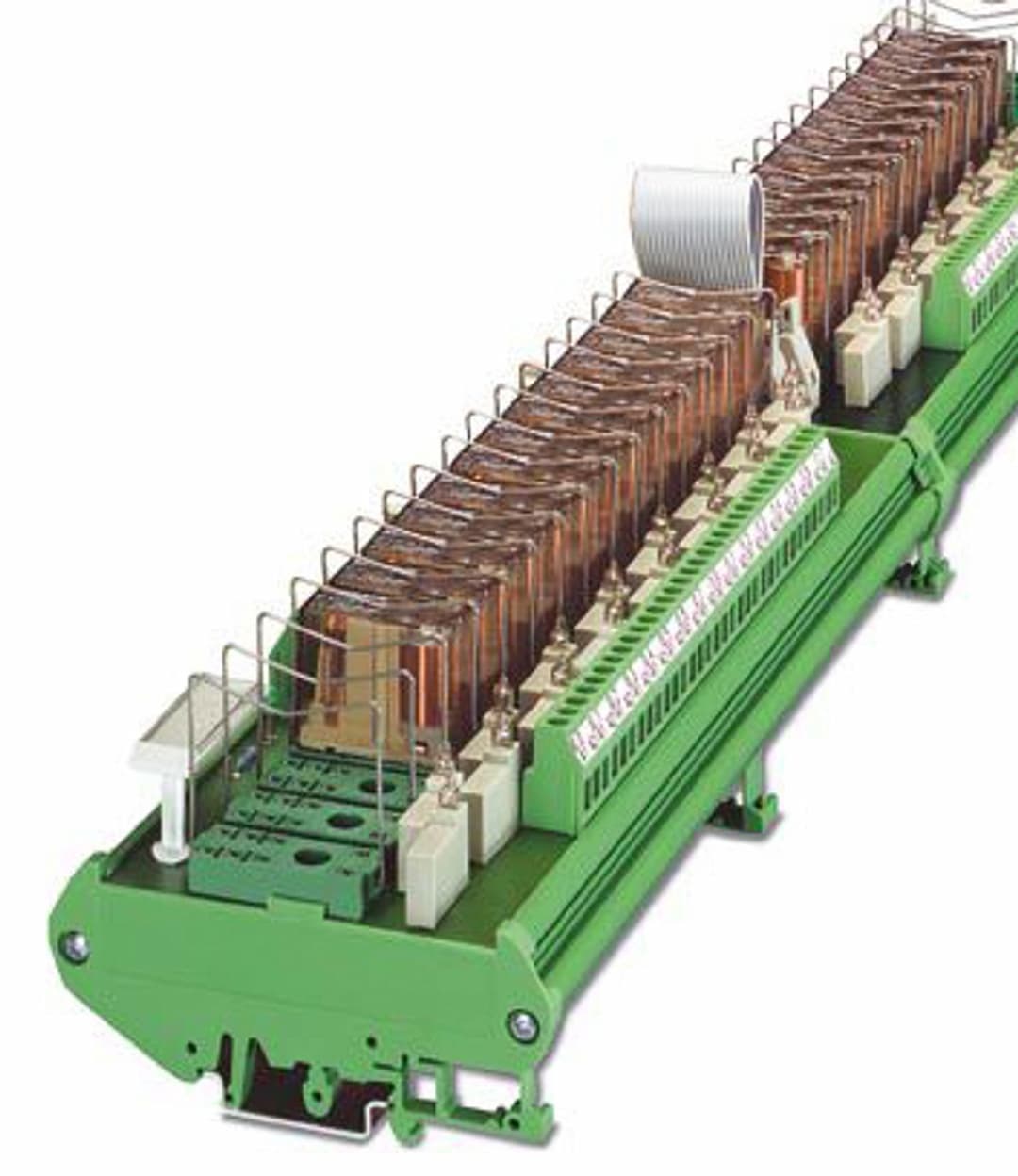

UMK-16 RELS/KSR-230AC/I/E/PLC
Selling Points
- 1Highly Versatile: Supports 16 miniature switching relays or optocouplers for 230 V AC.
- 2Easy Installation: Plug-in sockets simplify module integration.
- 3Robust Design: Overvoltage category III and pollution degree 2 ensure reliable operation.
- 4Wide Compatibility: Compatible with various controllers including SIEMENS S7-400 and ALLEN-BRADLEY ControlLogix.
- 5Durable Construction: Made from high-quality materials with a mechanical service life of 3x 107 cycles.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Order information: | The connection cable between the base and the extension modules is delivered with the extension unit. | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Product type | Relay Module | No. of channels | 16 |
Compatible components | Miniature switching relays or miniature optocouplers | With components | no |
Overvoltage category | III | Pollution degree | 2 |
Nominal input voltage U | 230 V AC | Input voltage range in reference to U | 0.4 ... 1.1 |
Input voltage range | 92 V AC ... 253 V AC | Typical input current at U | 0.5 mA (LED display) |
Operating voltage display | Green LED | Status display/channel | Glow lamp |
Compatible components | Miniature switching relays or miniature optocouplers | Contact switching type | 1 N/O contact |
Maximum switching voltage | 24 V DC
30 V DC | Limiting continuous current | 0.5 A |
Error detection (line break / short-circuit) | no | Connection method | Flat-ribbon cable connector in acc. with IEC 60603-13 |
Number of connections | 1 | Number of positions | 20 |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Number of connections | 52 |
Number of positions | 3 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Status display present | Yes | Width | 259 mm |
Height | 90 mm | Depth | 68 mm |
Color | green (RAL 6021) | Housing insulation material | PVC, side panel PA non-reinforced, |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards/regulations | IEC 60664
IEC 60664
DIN VDE 0110
DIN VDE 0160 (in parts) | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
