Product Model

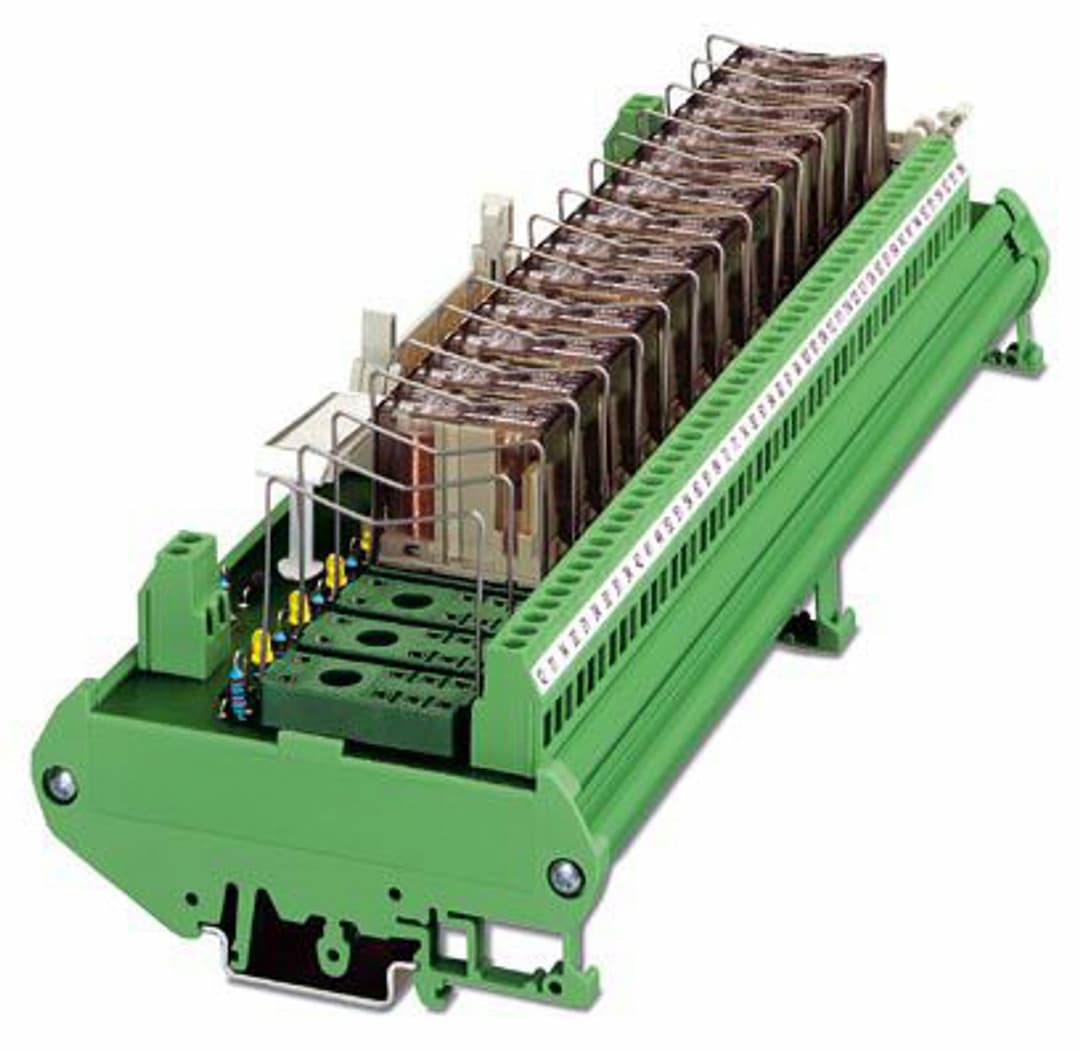

UMK-16 RELS/KSR-G24/S100
Selling Points
- 116 Channels of Reliability: Supports 16 miniature switching relays for robust output control.
- 224 V DC Compatibility: Designed for 24 V DC input voltage, ensuring reliable operation in various industrial settings.
- 3Plug-in Relays: Easy-to-use plug-in sockets for 16 miniature relays, simplifying module installation.
- 4LED Status Indicators: Green and yellow LEDs provide clear status and operating voltage displays.
- 5Durable Construction: Built with PVC housing and PA side panel, ensuring long-lasting performance in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. | Product type | Relay Module |
No. of channels | 16 | Compatible components | Miniature switching relay, REL-MR-24DC/21HC |
With components | no | Overvoltage category | III |
Pollution degree | 2 | Nominal input voltage U | 24 V DC |
Input voltage range in reference to U | 0.8 ... 1.1 | Input voltage range | 19.2 V DC ... 26.4 V DC |
Protective circuit | Freewheeling diode; Freewheeling diode
Reverse polarity protection; Polarity protection diode | Operating voltage display | Green LED |
Status display/channel | Yellow LED | Compatible components | Miniature switching relay, REL-MR-24DC/21HC |
Contact switching type | 1 changeover contact | Maximum switching voltage | 250 V AC/DC |
Limiting continuous current | 5 A | Error detection (line break / short-circuit) | no |
Connection method | Flat-ribbon cable connectors | Number of connections | 2 |
Number of positions | 40 | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Number of connections | 52 | Number of positions | 3 |
Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 4 mm² |
Conductor cross section AWG | 24 ... 12 | Status display present | Yes |
Width | 270 mm | Height | 90 mm |
Depth | 68 mm | Color | green (RAL 6021) |
Housing insulation material | PVC, side panel PA non-reinforced, | Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Standards/regulations | IEC 664
IEC 664 A
DIN VDE 0110
DIN VDE 0160 (in parts) |
Mounting position | any |
Specifications may be subject to change without notice
