Product Model

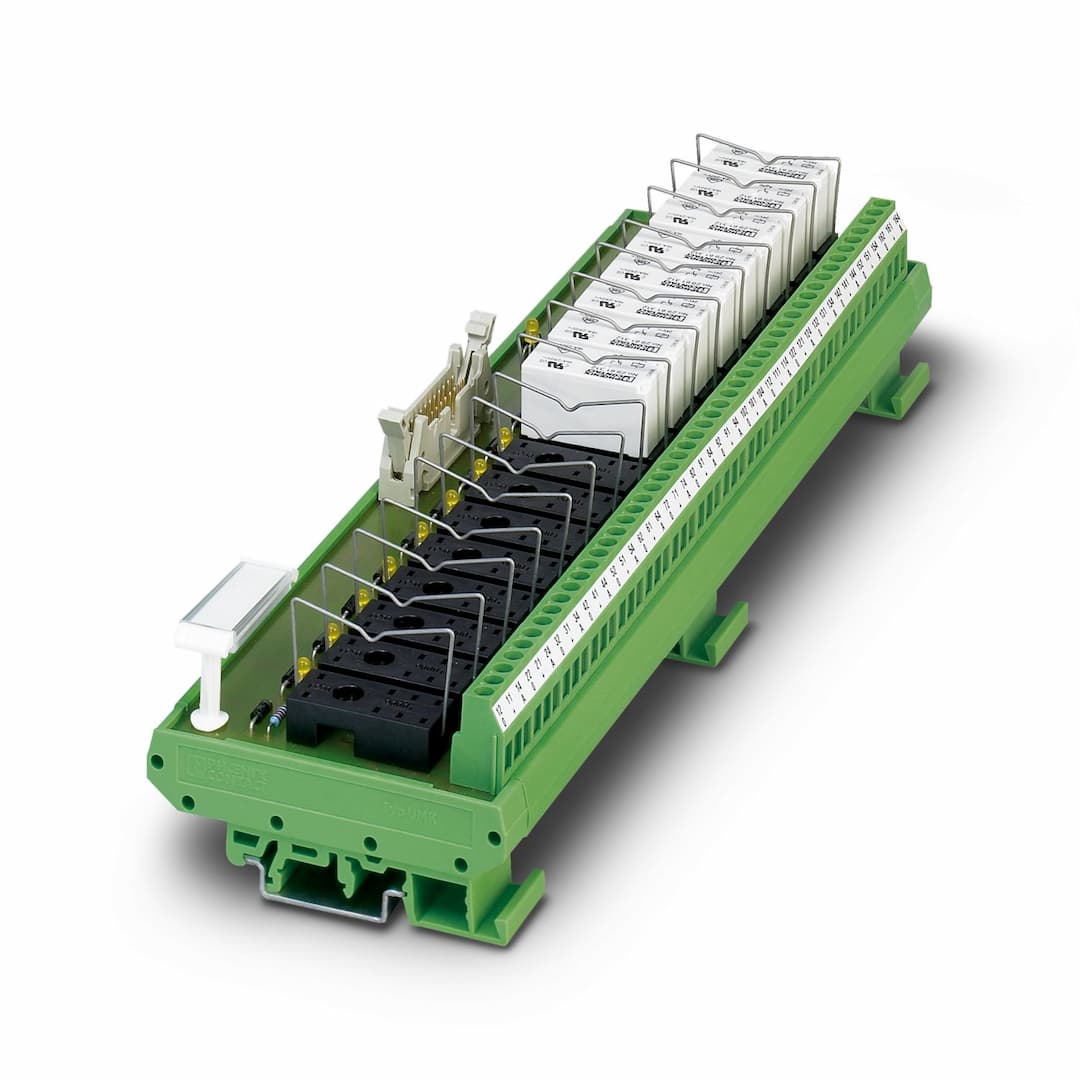

UMK-16 RM 24
Selling Points
- 116 Channels for Versatile Control: The UMK-16 RM 24DC/MKDS offers 16 plug-in miniature relays or optocouplers for comprehensive control solutions.
- 224V DC Input Voltage: Designed for 24V DC input voltage with a range of 0.8 to 1.1V, ensuring reliable operation in various applications.
- 3Robust Protection Features: Equipped with freewheeling diodes and polarity protection diodes for enhanced safety and reliability.
- 4Compact Design: Measuring 259mm x 77mm x 59mm, this module is ideal for space-constrained environments.
- 5Long-Term Compatibility: Compliant with DIN EN 50178 and IEC 60664 standards, ensuring long-term compatibility and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. | Product type | Multi-channel relay module |
No. of channels | 16 | Compatible components | Miniature switching relays or miniature optocouplers |
With components | no | Nominal input voltage U | 24 V DC |
Protective circuit | Free running; Freewheeling diode
Reverse polarity protection; Polarity protection diode | Operating voltage display | Yellow LED |
Status display/channel | Yellow LED | Compatible components | Miniature switching relays or miniature optocouplers |
Contact switching type | 1 changeover contact | Maximum switching voltage | 250 V AC/DC |
Limiting continuous current | 5 A | Error detection (line break / short-circuit) | no |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Number of connections | 3 |
Number of positions | 48 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Connection method | Flat-ribbon cable connector in acc. with IEC 60603-13 | Number of connections | 1 |
Number of positions | 20 | Status display present | Yes |
Width | 259 mm | Height | 77 mm |
Depth | 59 mm | Color | green (RAL 6021) |
Housing insulation material | PVC, side panel PA non-reinforced, | Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Standards/regulations | IEC 60664
DIN EN 50178 |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
