Product Model

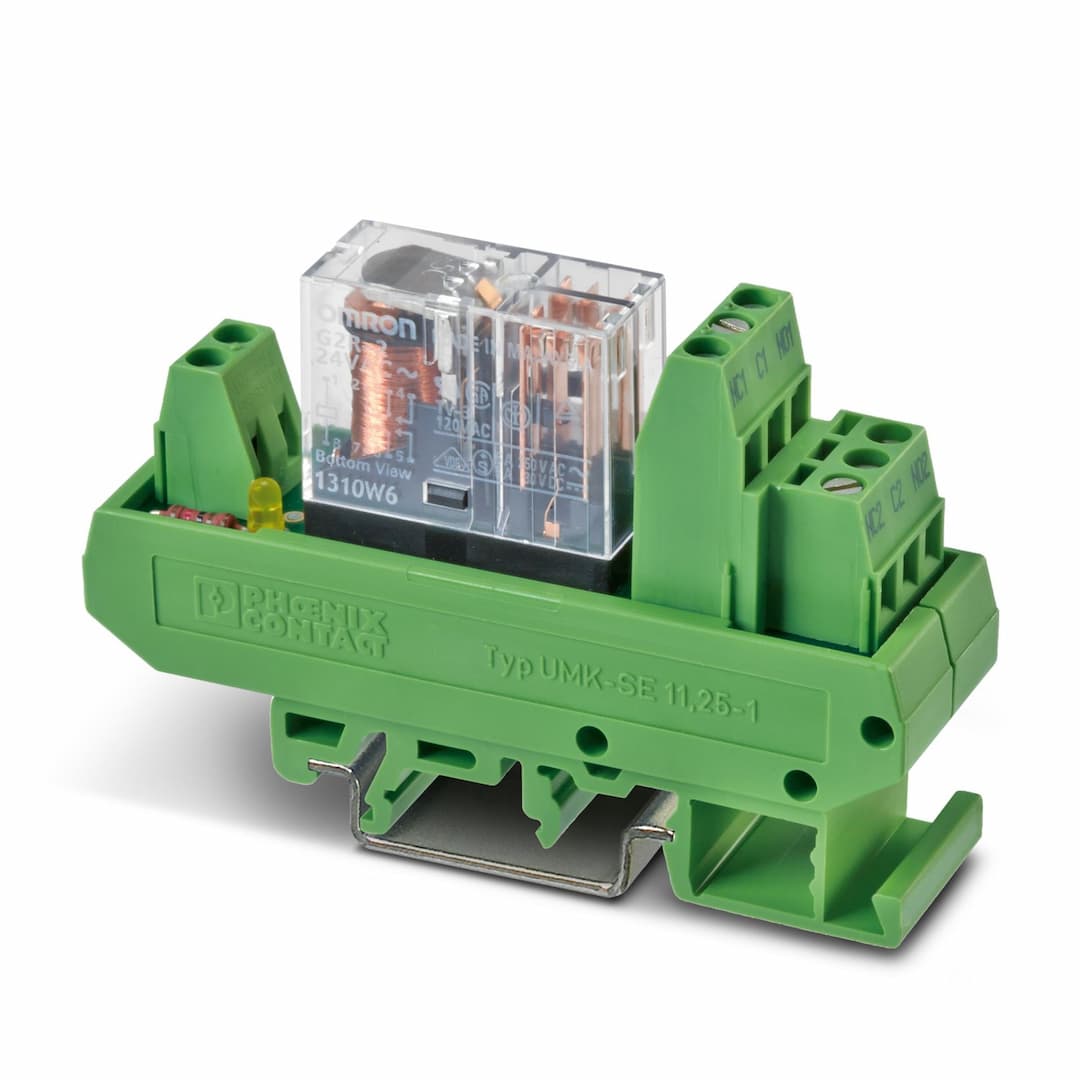

UMK 22-REL 24/21-21
Selling Points
- 1High-Quality Construction: Built with durable materials for reliable performance.
- 2Versatile Operation: 1 pole double throw operation suitable for diverse industrial applications.
- 3Wide Voltage Range: Compatible with both AC and DC voltages up to 120V.
- 4Easy Installation: Simple setup with standard relay sockets.
- 5Comprehensive Warranty: Backed by a 60-day warranty for added peace of mind.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
CE note | The products are offered exclusively for export outside the EU and the European Economic Area. | Product type | Relay Module |
Application | Universal | Operating mode | 100% operating factor |
Mechanical service life | 1x 10 | Date of last data management | 21.05.2024 |
Test voltage (Winding/contact) | 5 kV (50/60 Hz, 1 min., winding/contact) | Nominal input voltage U | 24 V DC |
Typical input current at U | 32 mA | Typical response time | 15 ms |
Typical release time | 5 ms | Protective circuit | Freewheeling diode |
Operating voltage display | LED | Contact switching type | 2 changeover contacts |
Contact material | AgCdO | Maximum switching voltage | 250 V AC (30 V DC) |
Minimum switching voltage | 5 V (at 10 mA) | Limiting continuous current | 5 A |
Min. switching current | 10 mA (At 5 V) | Connection method | Screw connection |
Stripping length | 7 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 1.5 mm² | Conductor cross section AWG | 30 ... 14 |
Connection method | Screw connection | Stripping length | 7 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
Conductor cross section AWG | 30 ... 14 | Width | 22.5 mm |
Height | 77 mm | Depth | 50 mm |
Color | green (RAL 6021) | Ambient temperature (operation) | -20 °C ... 65 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
