Product Model

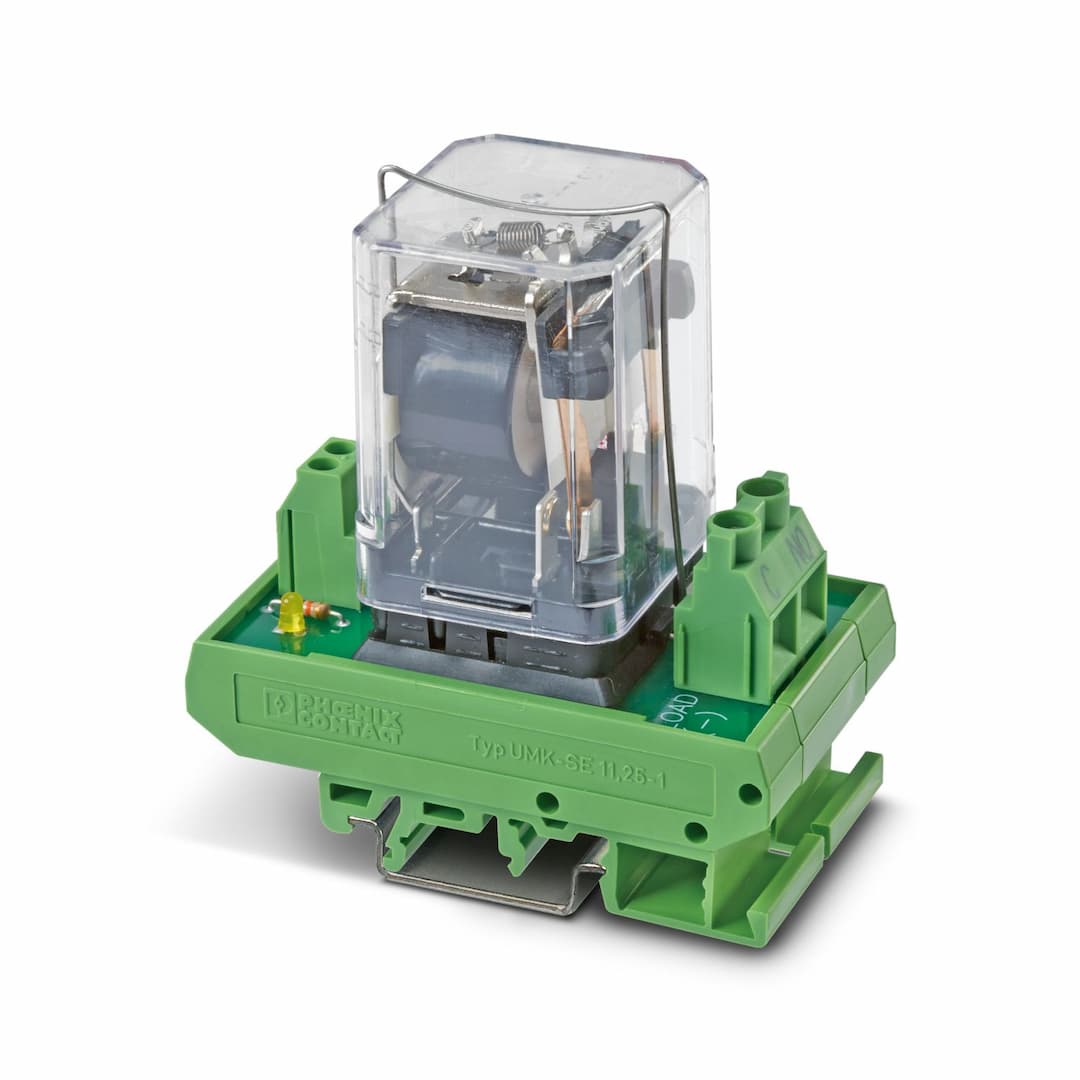

UMK45-REL/KUEP-ST-125DC/1-EHC
Selling Points
- 1High Reliability: Designed for consistent performance in electrical control systems.
- 2Fast Response Time: 15ms response time ensures quick and accurate control.
- 3Low Power Consumption: 14mA input current minimizes energy usage.
- 4Compact Design: Ideal for space-constrained applications.
- 5Enhanced Protection: Includes protective features for safe operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay Module | Application | Universal |
Operating mode | 100% operating factor | Mechanical service life | 1x 10 |
Date of last data management | 21.05.2024 | Test voltage (Winding/contact) | 2.2 kV (50 Hz, 1 min., winding/contact) |
Nominal input voltage U | 125 V DC | Typical input current at U | 14 mA |
Typical response time | 15 ms | Typical release time | 10 ms |
Protective circuit | Freewheeling diode | Operating voltage display | LED |
Contact switching type | 1 N/O contact | Contact material | Silver cadmium oxide (AgCdO) |
Maximum switching voltage | 150 V DC | Limiting continuous current | 10 A |
Connection method | Screw connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross section flexible | 0.2 mm² ... 4 mm² |
Conductor cross section AWG | 30 ... 10 | Connection method | Screw connection |
Stripping length | 8 mm | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Conductor cross section flexible | 0.2 mm² ... 4 mm² | Conductor cross section AWG | 30 ... 10 |
Width | 45 mm | Height | 77 mm |
Depth | 85.5 mm | Ambient temperature (operation) | -20 °C ... 65 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
